SB120 Recumbent Bike
Attaching the Console
8

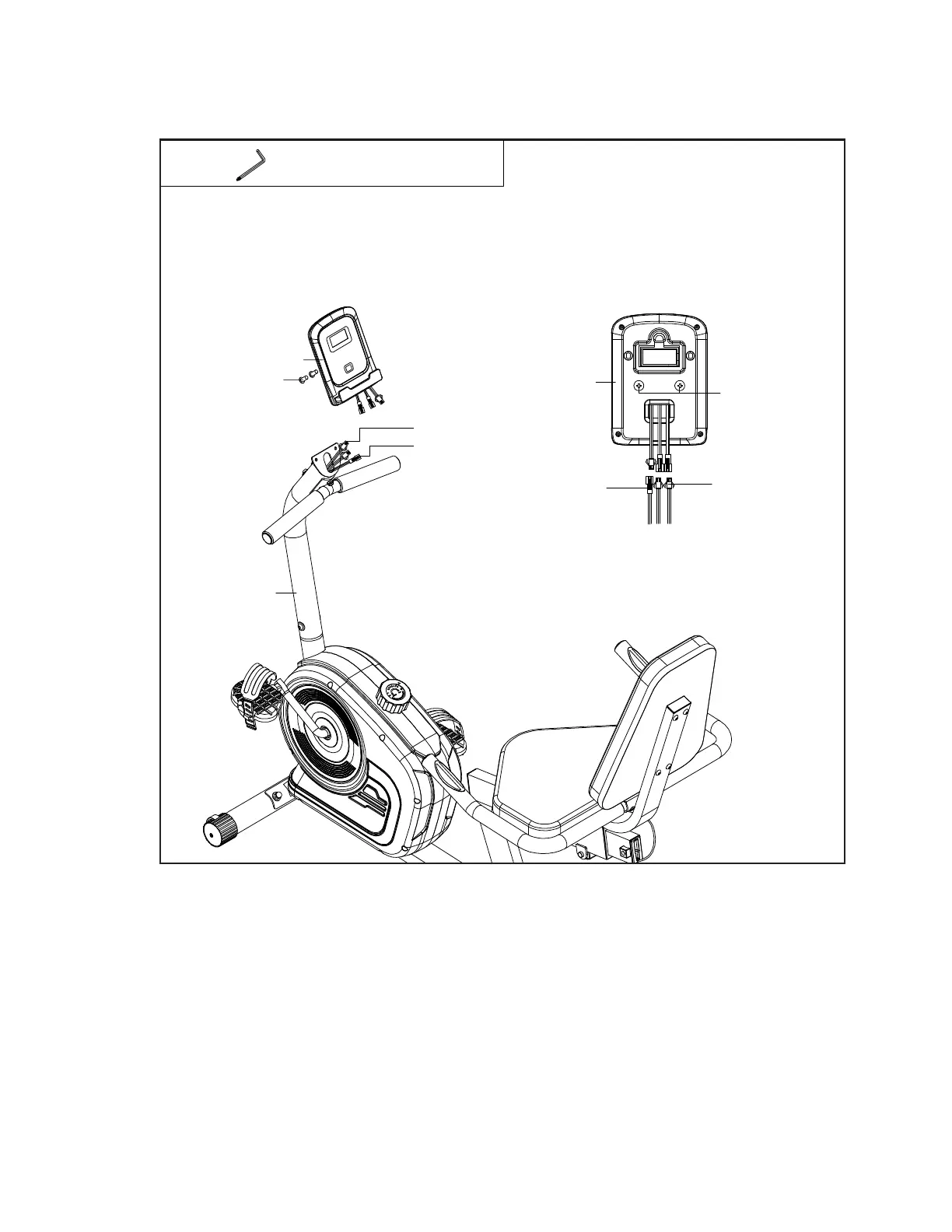

1. Remove the pre-installed 2 Crossed Head Screws (No. 23) from the back of
Console (No. 24).
2. Connect the Upper Sensor Wire (No. 10) and the Upper Pulse Sensor Wire
(No. 12) to the Console (No. 24), and then attach the Console (No. 24) to the
Front Post (No. 02), secure with 2 Crossed Head Screws (No. 23).
73
Allen Key
24
23
12
10
02
10
12
23
24
*NOTE: CHECK TO ENSURE THAT ALL BOLTS AND NUTS ARE TIGHTENED BEFORE USING
THE MACHINE.
To Next Page
