SB120 Recumbent Bike
7

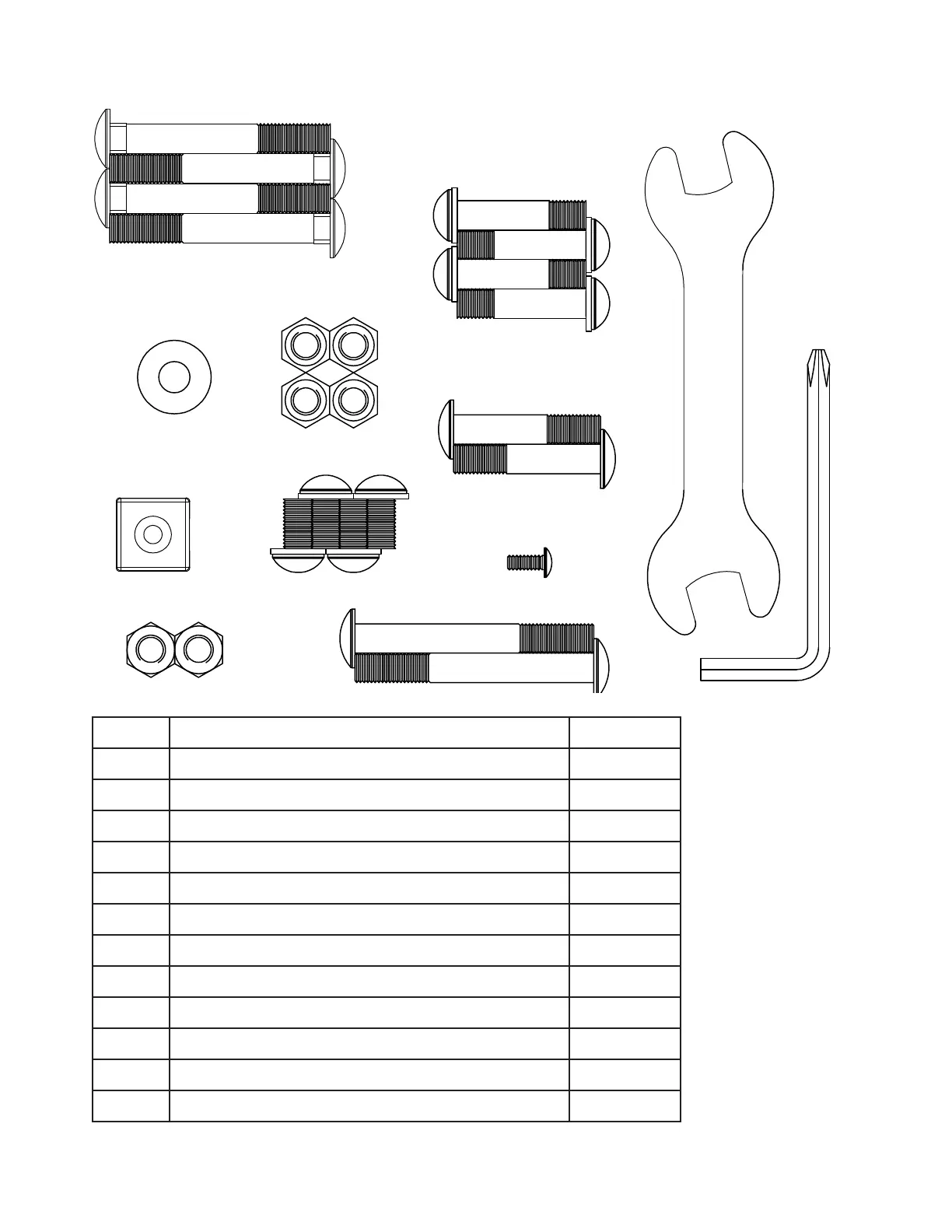

SB120 Assembly Pack Checklist
No. Description Q’ty
15 Carriage bolt M8x60L 4
16 Allen bolt M8x40L 2
18 Allen bolt M8x35L 4
19 Allen bolt M8x65L 2
22 Crossed head self-tapping screw M4x10L 1
27 Limited bracket 1
30 Domed nut M8x16t 4
31 Nut M8x8t 2
32 Allen screw M8x15L 4
33 Curved washer φ8.5xφ20x1.5t 8
72 Multifunctional wrench 1
73 Allen key 1
#18. M8 x 35L
(4 pcs)
#15. M8 x 60L
(4 pcs)
#30. M8 x 16t
(4 pcs)
#33. 8.5 x 20
x 1.5t (8 pcs)
#27. (1 pc)
#31. M8
(2 pcs)
#32. M8 x 15L
(4 pcs)
#16. M8 x 40L
(2 pcs)
#22. M4 x 10L
(1 pc)
#19. M8 x 65L
(2 pcs)
#72.
13mm/15mm
(1 pc)
#73. 5mm
(1 pc)
