Xterra SB4.5r User Manual

8
SB4.5r Fitness Bike
#71. 3/8” x 19mm
Flat Washer (4 pcs)
#80. 3/8”
Nyloc Nut (4 pcs)
#100. 3/8” x 3”
Hex Head Bolt (4 pcs)
2
Hardware Step 2

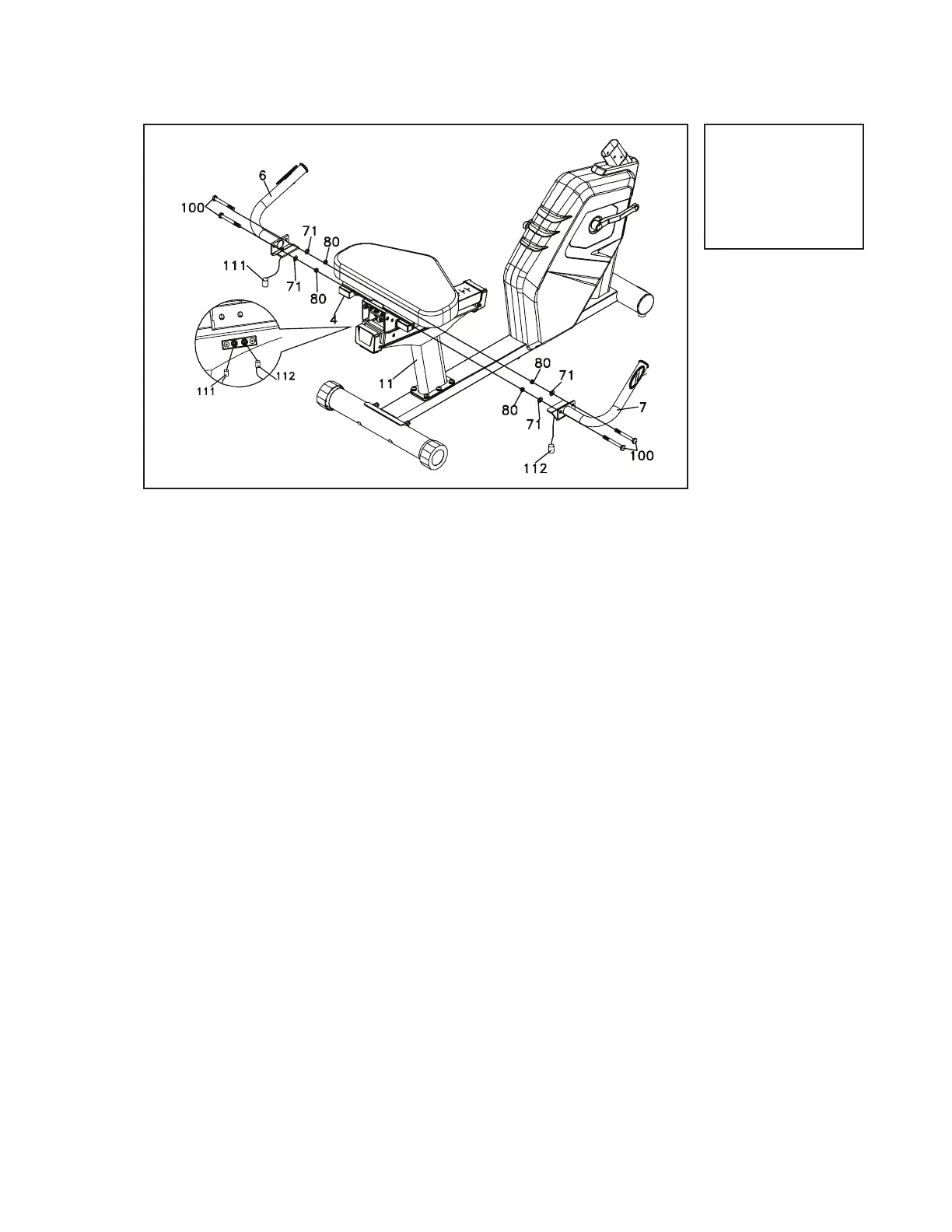

1. Install the Handlebars (6 & 7) to the Seat Carriage with four Hex Head
Bolts (100), Flat Washers (71) and Nyloc Nuts (80). Be careful that the
wires do not get pinched while assembling the handlebars. Connect
Cable (111) to the Front Port on the left side below the seat, and Cable
(112) to the Rear Port.
Rear Handle Bars

Xterra SB4.5r Specifications

General

Brand	Xterra
Model	SB4.5r
Category	Exercise Bike
Language	English
