10
SB4.5r Fitness Bike
#70. 5/16” x 18mm
Flat Washer (2 pcs)
#73. 5/16”
Split Washer (2 pcs)
#95. 5/16” x 3/4”
Button Head Socket
Bolt (2 pcs)
#81. M5 x 12mm
Phillips Head Screw
(4 pcs)
4

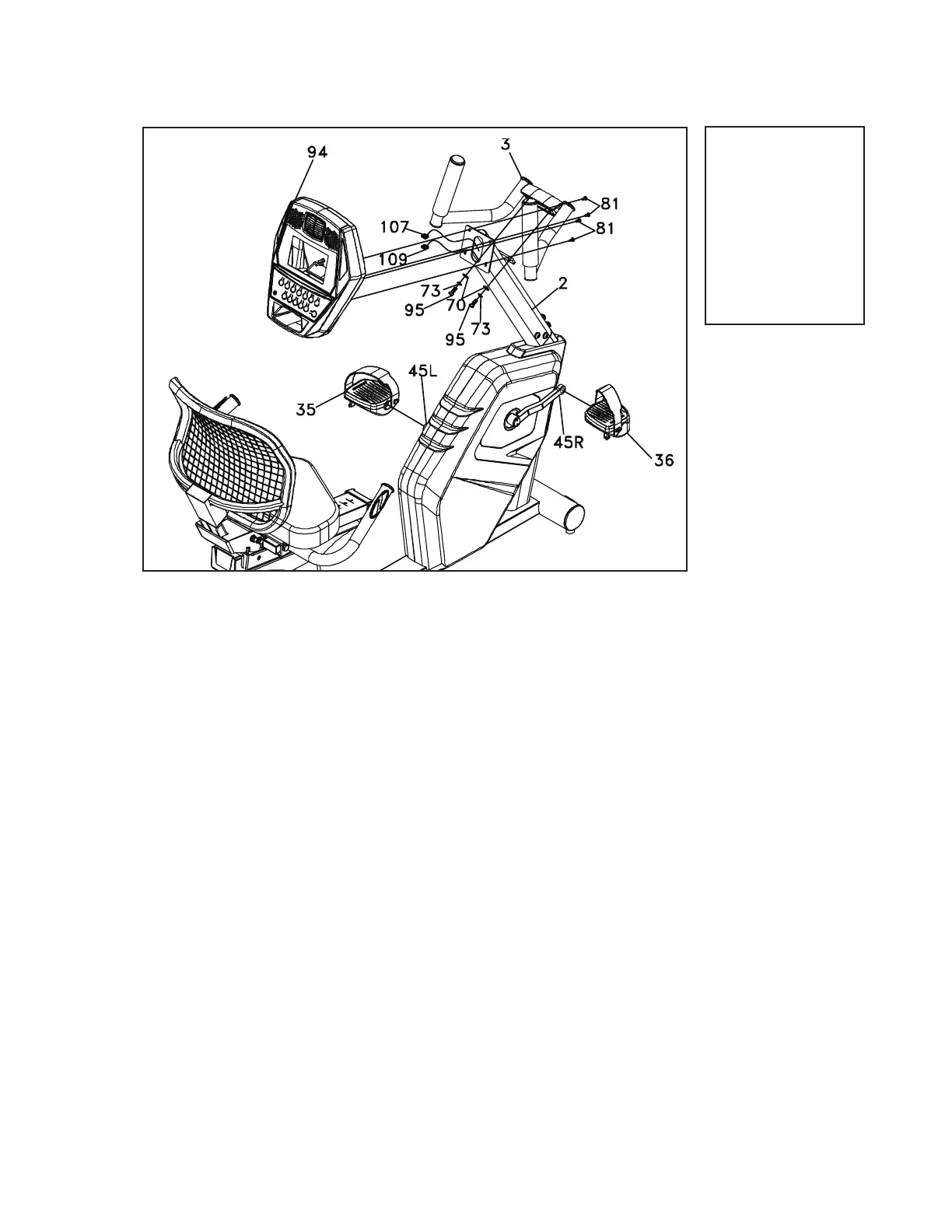

Hardware Step 4
1. Cut the plastic tie that holds the plastic cover on the handlebars.
Remove the plastic cover and set it aside. Install the Front Handlebars
(3) and secure with two Button Head Socket Bolts (95), Split Washers
(73) and Flat Washers (70). Snap the plastic cover back on.
2. Connect the two wires (107 & 109) to the mating connectors on the
back of the Console (94) and secure the Console with four Phillips Head
Screws (81). Be careful not to pinch the wires between the console and
mounting plate.
3. Install the two pedals onto the Crank Arms. The left Pedal (35) is a
reverse thread so as you turn the pedal bolt into the crank arm turn it
counter-clockwise as if you are loosening it.
4. The right Pedal (36) is a normal thread so tighten it clockwise. Make
sure the pedals are as tight as you can possibly get them. It may be
necessary to re-tighten them again after a few months of use.
Console, Handle Bars & Pedals
