INSTALLATION
After unpacking the fridge check that no parts
are missing. Place the unit in a dry place which is
protected against splashing water. Do not place
directly adjacent to sources of heat such as heating,
gas ovens, hot water, pipes or directly in the sun.
It is important that your appliance is installed and
operated in accordance with these instructions to
ensure its performance, efficiency and operation.
LOCATING AND MOUNTING

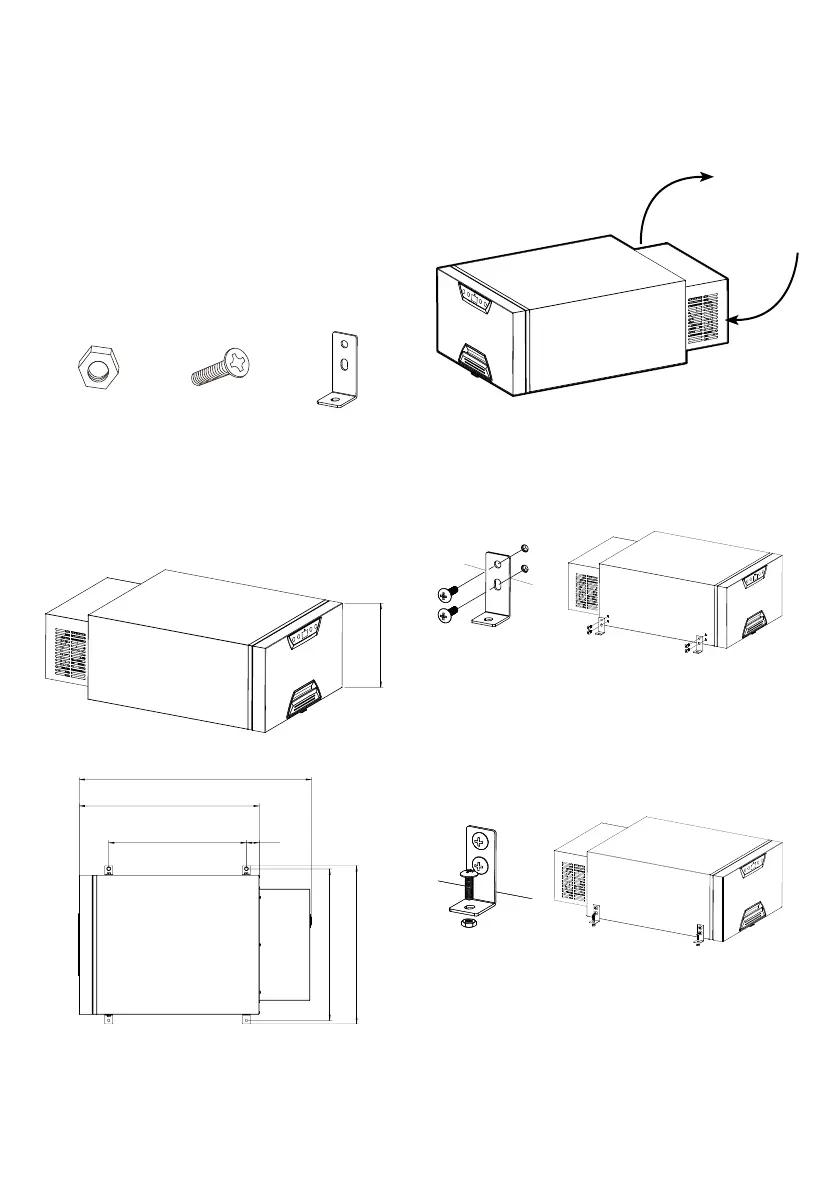

(1) Find a suitable location to mount the drawer
fridge, ensuring to keep at least 5 to 10cm space
around the compressor box to ensure sufficient
airflow and cooling performance.
(2) Attach the mounting brackets to the sides of the
drawer fridge body with supplied M6 bolts (2pcs
per bracket).
(3) Locate the fridge in its final position and fix in
position using the supplier M6 bolts and nuts
(1 set per bracket) or other suitable fixtures (not
supplied).
(4) Connect the DC cable to the socket in the rear
of the drawer fridge. Route the cable, ensuring
it is not pinched, cut or damaged, to the nearest
suitable cigarette outlet socket and plug in.
Air Flow
INSTALLATION ITEMS
M6 Nut x 4pcs - M6 Bolt x 12pcs - Bracket x 4pcs
KEY DIMENSIONS (IN MM)
250
734
569
435 41
500
478
