A80 BT Intelligent Diagnosis System
35
Chapter III Location of Diagnostic link connectors on
Different vehicle Models
1. Diagnostic link connectors locations of various vehicle models:

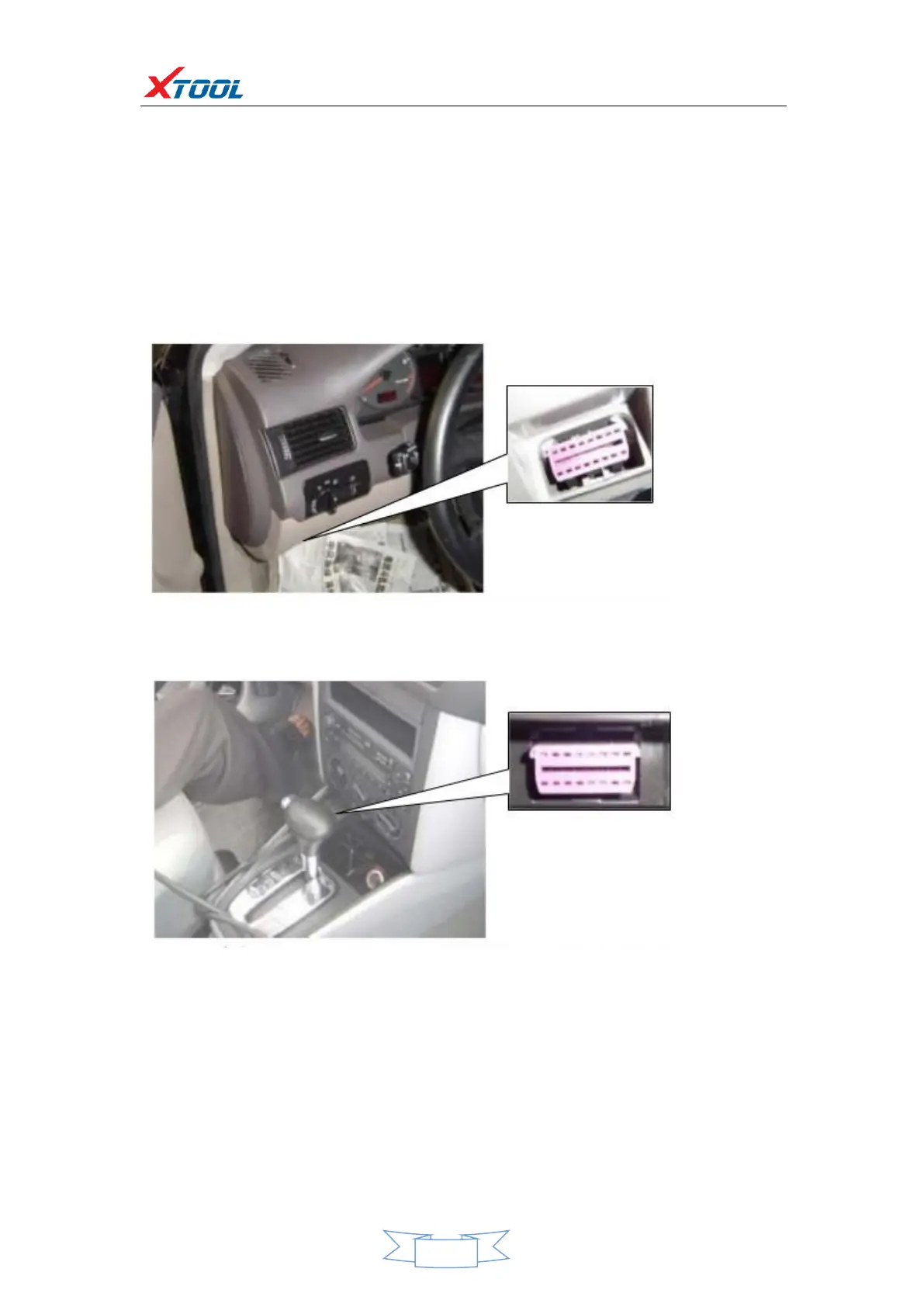

*AUDI A6: the OBD plug is on the lower left side of the dashboard, use SMART OBDII-16 connector.
*VW Bollywood 1.8: the OBD plug is below the console, use SMART OBDII-16 connector.
