A80 BT Int
elligent
Diagnosis System
37

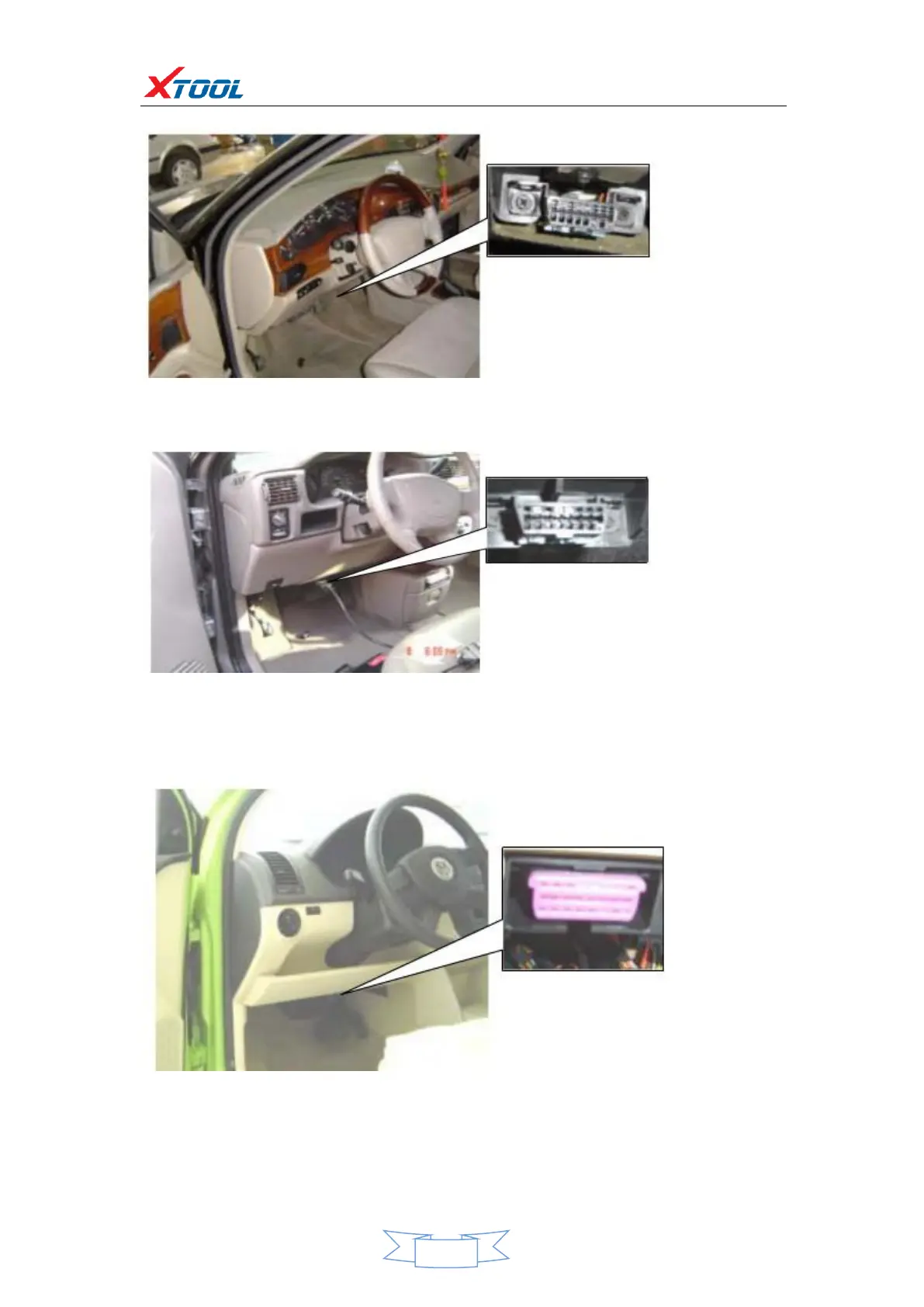

*GM Buick: the OBD plug i
s below the dashboard, use
SMART OBDII
-
16 connector
.
*GM Buick GL8 : the O
BD plug is below the dashbo
ard, use SMART OBDII
-
16 connector
.
*VW POLO: the OBD plug is below th
e dashboard, use SMART OBDII
-
1
6 connector
.
36
38
Table of Contents
Table of Contents
2
Chapteri about A80 BT
3
Appearance
3
Layout of A80 BT Tablet
5
Top View of A80 BT Tablet
5
Side View of A80 BT Tablet
5
Outline Diagram of VCI Diagnostic Kit
6
A80 BT Technical Parameters
7
Chapter II How to Use A80 BT
8
A80 BT Activation
8
A80 BT Main Interface and Function Buttons Description
10
Main Interface
10
Sub-Menu and Function Buttons
10
Toolbar Functional Buttons
13
Connection Diagnosis
14
Vehicle Connection Test
14
Precautions before Use
15
Diagnosis
16
Menu Selection
17
Test Function
18
Read ECU
21
Read Dtcs
22
Clear Dtcs
23
Read Live Data
24
Special Function
25
Actuating Components Test
25
Setting
26
Diagnose Report
30
Data Playback
31
One-Click Upgrade
31
Xtool Cloud System
32
Remote Control
33
Chapter III Location of Diagnostic Link Connectors on Different Vehicle Models
35
Diagnostic Link Connectors Locations of Various Vehicle Models
35
Location Diagram of Vehicle Diagnostic Link Connectors
39
Diagnostic Link Connectors Terminal Definition and Communication Protocols
40
Chapter IV Additional Information
43
Description of OBDII and the Function of Sensor Components
43
OBDII Function Description
43
Sensor Element Function
45
Common Faults and Elimination of Electronic Control System
51
