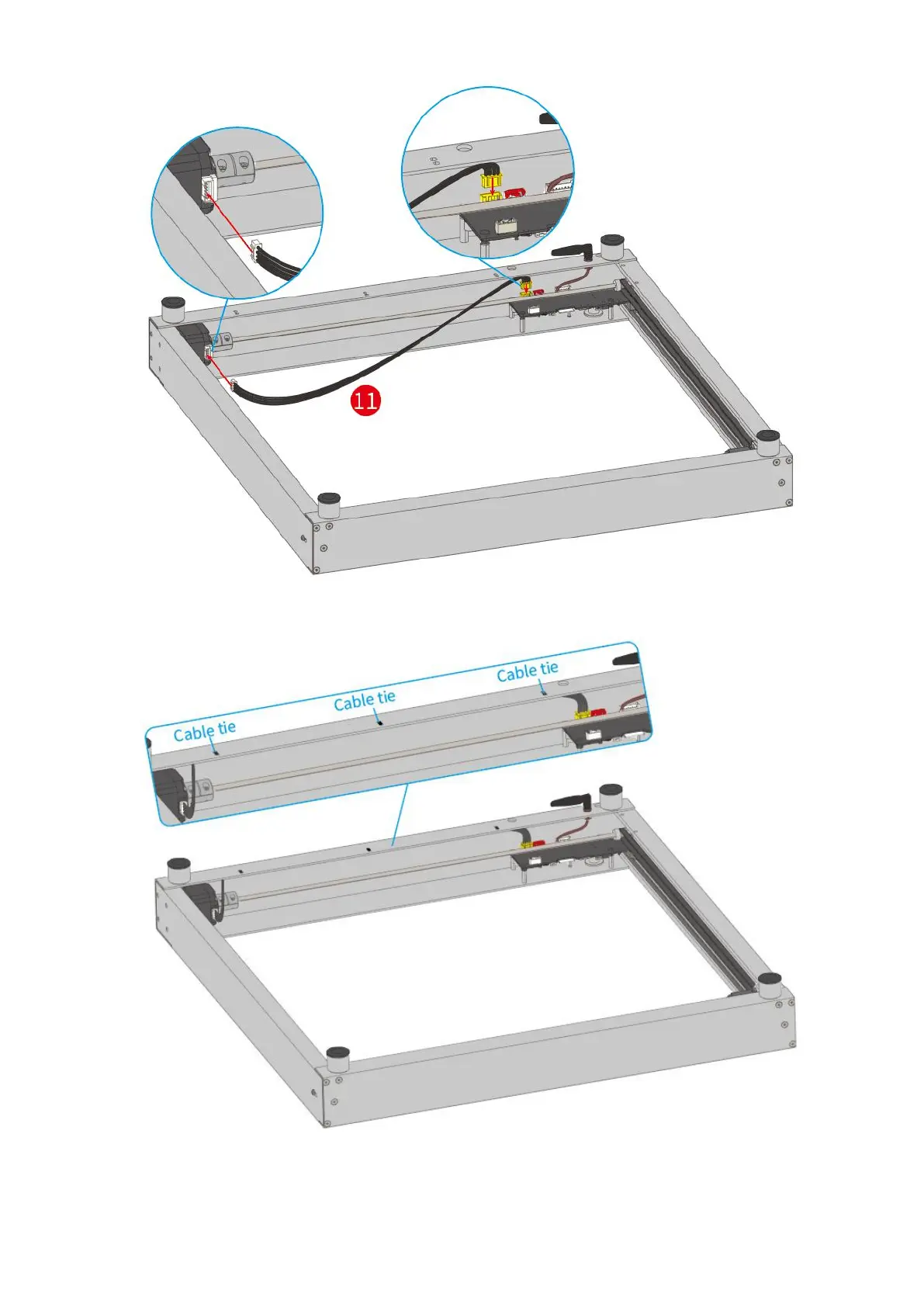

Note: Use cable ties to fit the cable on the plate so that the cable doesn't interfere with the
operation of xTool D1.
9. Insert the motor & laser cables into the ports on the main control board.

Xtool D1 Specifications

General

Working Current	5A
Laser Power	10W
Engraving Speed	10000mm/min
Supported Materials	Wood, Leather, Paper, Plastic
Software Compatibility	LightBurn
Connectivity	USB, Wi-Fi
Focus Adjustment	Fixed focus laser (adjust focus by adjusting the height of the laser)
