Xtool D8 User Manual

32

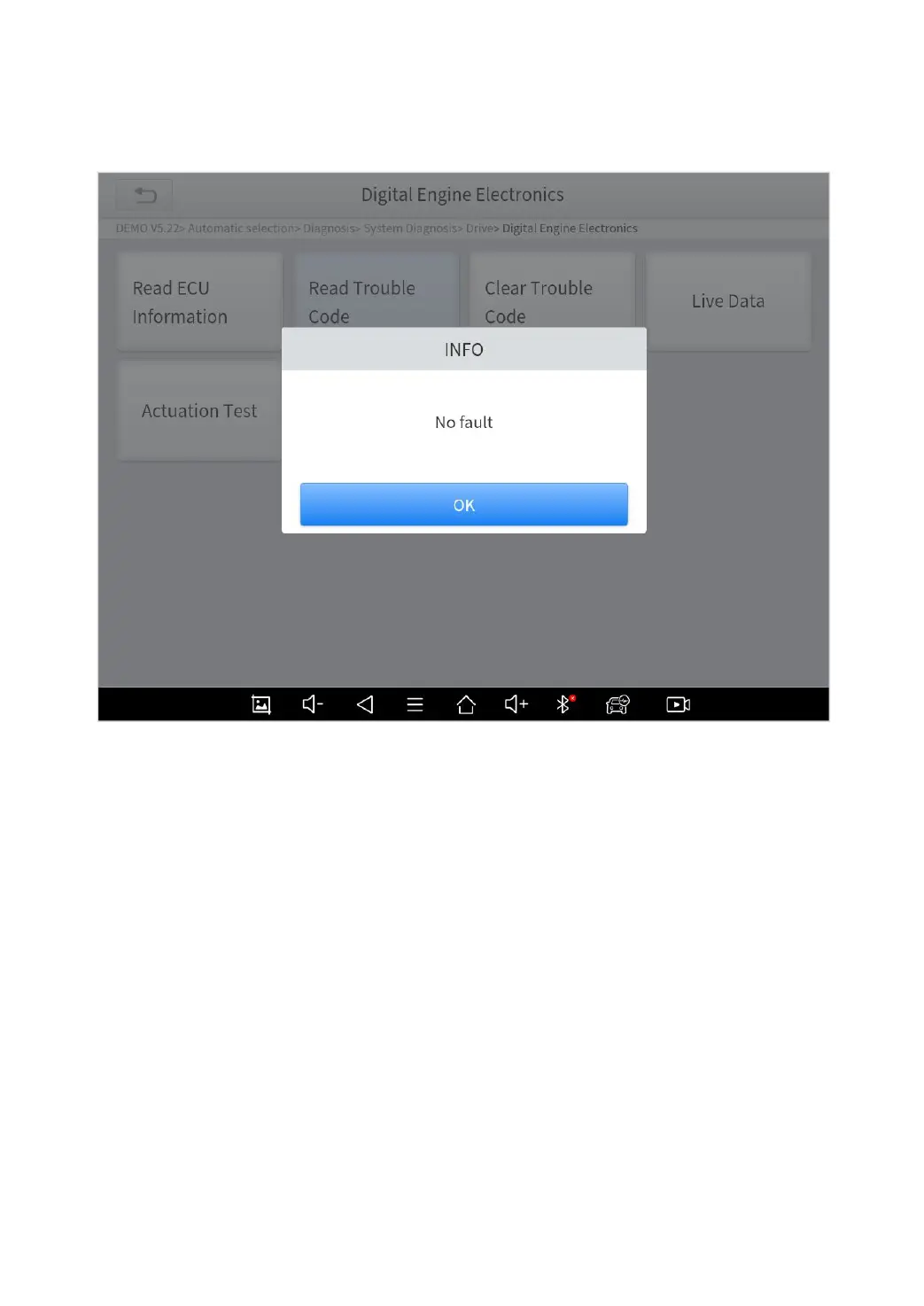

Read Trouble Code: Read trouble codes stored in ECU.
Fig 4-6
*Tip: In the process of diagnosis, if the device shows “System is
OK” or “No Trouble Code”, it means there is no related trouble
code stored in ECU or some troubles are not under the control of
ECU, most of these troubles are mechanical system troubles or
executive circuit troubles, it is also possible that signal of the
sensor may bias within limits, which can be judged in Live Data.

Xtool D8 Specifications

General

Item	Description
Processor	Quad-core processor 1.8GHz
RAM	2G
Sensor	Gravity sensor
ROM	64G
Display	8-inch capacitive, 1024×768 resolution
Connectivity	USB Wi-Fi
Camera	8-megapixel autofocus rear camera with flash
Audio input/ Audio output	Microphone/ Loudspeaker
Ports	 USB3.0  DC charging port  VGA port
Battery	10000mAh 3.7V lithium polymer battery
Input voltage	12V DC
Operating temperature	-10~50℃
Relative humidity	< 90%

Weight and Dimensions

Dimensions	274.0×175.0×33.8 mm
