KC501 Key Programming
5 /
7
2.2 PRODUCT SPECIFICATIONS
Display Screen 320x480 dpi TFT Colorful Screen
Working Voltage 9V-18V
Working Temperature
-10-60
Storage Temperature
-20-60
Appearance Size 177 mm* 85 mm* 32 mm
Weight 0.32kg

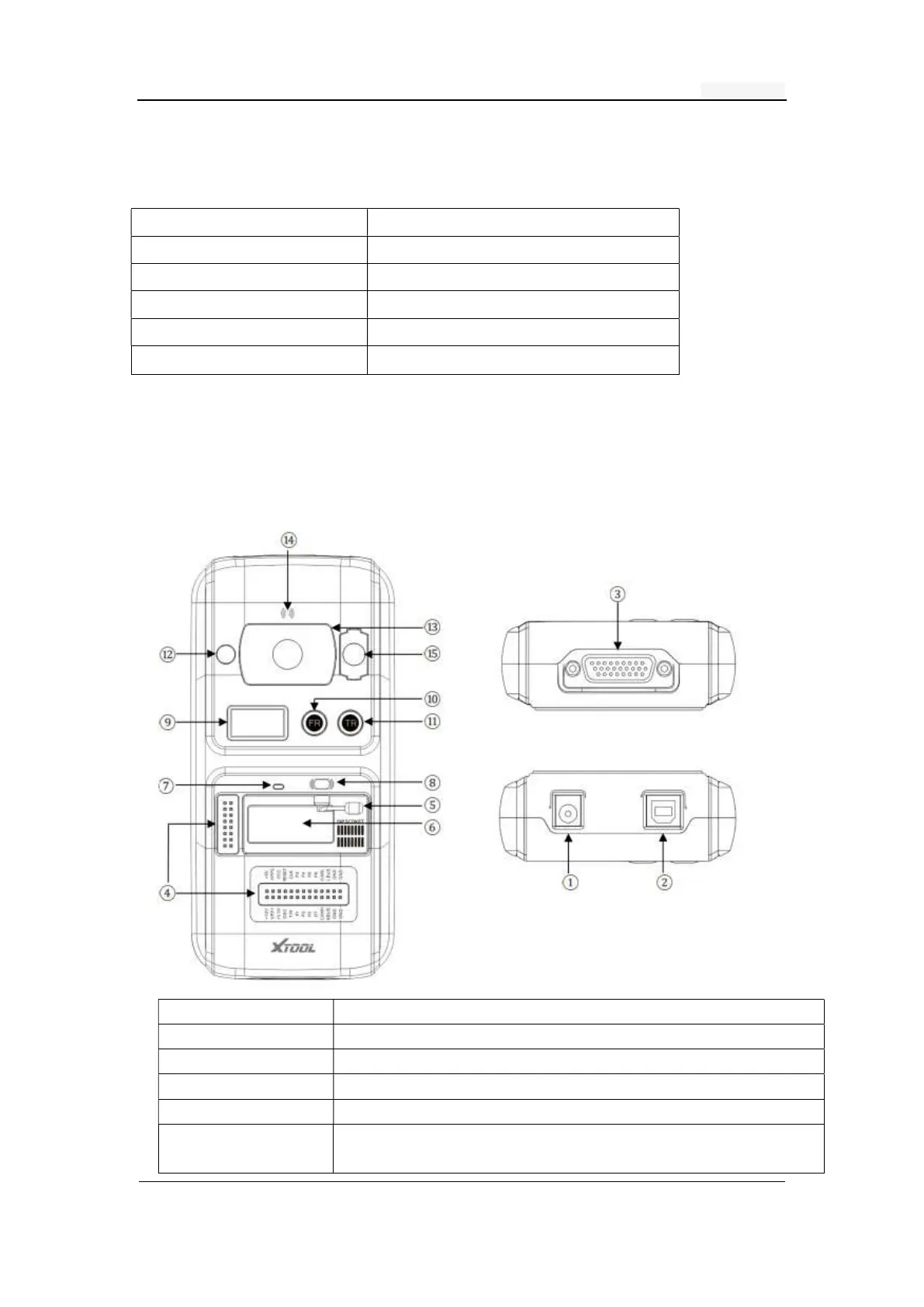

2.3 PRODUCT APPEARANCE AND INTERFACES
KC501 The appearance of the programmer product is shown in the figure
below:
1.DC Port: It provides 12V DC power supply.
2.USB Port: It provides data communication and 5V DC power supply.
3.DB 26-Pin Port: It connects with the Mercedes Benz infrared cable, ECU cable, MCU cable, MC9S12 cable.
4.Cross Signal Pins: It holds the MCU board, MCU spare cable or DIY signal interface.
5.Locker: It locks the EEPROM component transponder slot to ensure proper functioning.
6.EEPROM Component
Transponder Slot:
It holds the EEPROM plug-in transponder or EEPROM socket.
