The VAG401 is a diagnostic tool designed for vehicles manufactured by VW, Audi, Seat, and Skoda. It serves as a more advanced version of the VAG5053, offering a comprehensive suite of functions for vehicle diagnostics and maintenance. Its smart appearance and powerful capabilities allow for convenient use without the need for a personal computer, making it a standalone diagnostic solution.

Function Description

The VAG401 provides a wide array of diagnostic functions, allowing users to interact with various electronic systems within compatible vehicles. These functions are categorized for ease of use and cover critical areas of vehicle operation.

Controller Information: This function allows users to retrieve detailed information about the vehicle's electronic control units (ECUs). This includes data such as the VAG number, component identification, shop importer number, extra device information, coding details, and workshop code (WSC). This information is crucial for identifying the specific ECU and its configuration, which can be vital for troubleshooting and repair.
Fault Codes: The device can read and display diagnostic trouble codes (DTCs) stored in the vehicle's ECUs. These codes indicate specific malfunctions detected by the vehicle's self-diagnostic system. The VAG401 presents these codes along with their descriptions, helping users understand the nature of the problem. For instance, it can display codes like "00779 Outside Air Temp Sensor (G17) 010 Open or Short to Plus," providing a clear indication of the fault.
Clear Codes: After addressing a fault, the VAG401 enables users to clear the stored DTCs from the vehicle's memory. This is an essential step in the repair process to confirm that the issue has been resolved and to turn off any associated warning lights on the dashboard. The device prompts the user for confirmation before erasing codes and indicates successful erasure.
Measure Blocks: This function allows for the real-time monitoring of various sensor readings and operational parameters from the vehicle's ECUs. Users can input specific group numbers (from 0 to 255) to access different sets of measuring data. For example, it can display values such as "20000.00 km," "0.00 l," "510.00 ohm," and "-50.00 ℃," providing insights into the vehicle's performance and component status. This is invaluable for diagnosing intermittent problems or verifying component functionality.
Output Tests: The VAG401 can activate specific components or actuators in the vehicle for testing purposes. This allows users to verify the proper operation of various systems without having to manually access them. For example, an "Output Test" on the "Tachometer (G5)" can confirm if the instrument cluster's tachometer is functioning correctly. The device indicates whether the test succeeded or failed.
Basic Settings: This function is used to perform fundamental adjustments and calibrations on certain vehicle systems. While the manual indicates that some ECUs may not support this function, for those that do, it allows for the initialization or resetting of components to their default operational parameters. The operation method for this function is similar to that of "Measure Blocks," requiring input of specific group numbers.
Adaptation: Similar to "Basic Settings," the "Adaptation" function allows for more advanced adjustments and customizations of vehicle systems. This can include adapting new components, modifying operational characteristics, or fine-tuning system responses. As with "Basic Settings," some ECUs might not support this function, and its operation mirrors that of "Measure Blocks."
Coding: This powerful function allows users to recode ECUs, which involves changing their software configuration to alter vehicle features or adapt to new components. The VAG401 prompts for "Input Software coding" and "Input Equipment Number," enabling precise configuration changes. Successful coding operations are confirmed by the device.
Security Access: To prevent unauthorized modifications, certain advanced functions require "Security Access." This involves entering a specific password to unlock protected ECU functions. The VAG401 provides an interface for entering this password, and it indicates whether the login was successful or if communication failed.
Readiness: This function checks the readiness status of various emission-related monitoring systems. It indicates whether these systems have completed their self-tests, which is important for vehicle inspections. Similar to other advanced functions, some ECUs may not support this feature.
Advanced ID: This function retrieves detailed identification information about the vehicle's ECUs. This can include the serial number, identification codes, date of manufacture, revision numbers, and test stand numbers. This comprehensive data is useful for tracking ECU versions and for specific diagnostic procedures.
Professional Functions: The VAG401 includes specialized functions for common maintenance tasks:

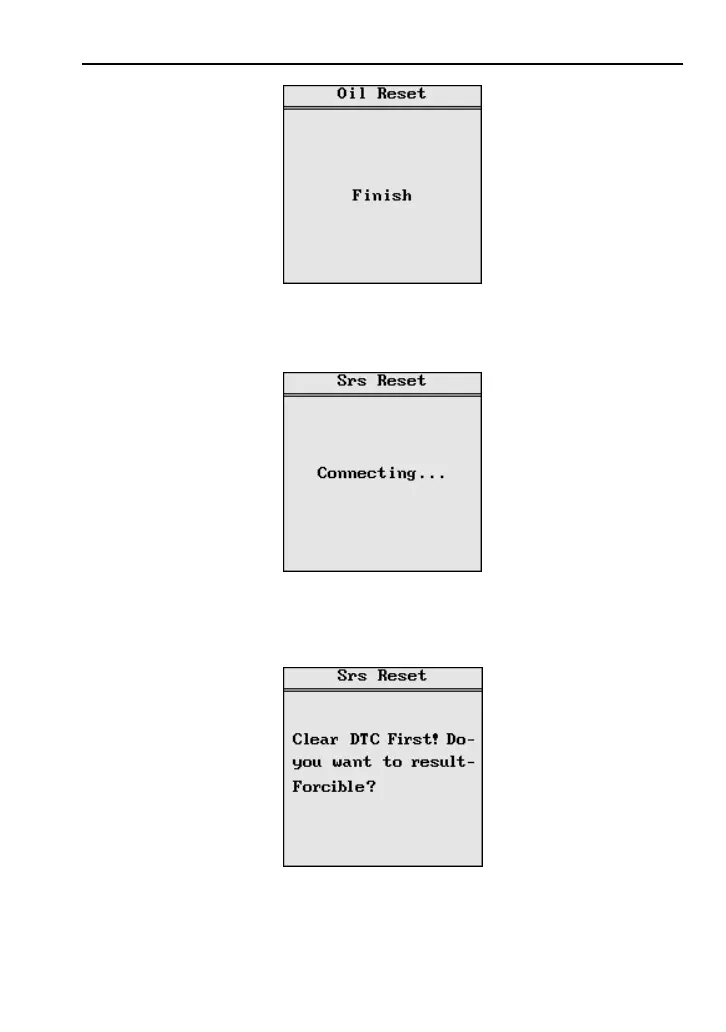

- Oil Reset: This function allows users to reset the oil service reminder after an oil change.
- SRS Reset: This function is used to clear fault codes related to the Supplemental Restraint System (airbags) and reset the system. The device first attempts to read codes and then prompts the user to confirm a "forcible" reset if codes are found, indicating success after implementation.
- Throttle Adaptation: This function calibrates the throttle body to ensure proper engine performance.
- Mileage Reset: This function allows for the resetting of mileage-related parameters.
- EEPROM Access: This provides access to the EEPROM (Electrically Erasable Programmable Read-Only Memory) of certain ECUs, allowing for advanced data manipulation.

Usage Features

The VAG401 is designed for user-friendliness and portability.

Standalone Operation: One of its key features is the ability to operate independently without the need for a PC. This enhances its portability and convenience, allowing technicians to perform diagnostics directly at the vehicle.
Intuitive Interface: The device features a backlit LCD screen (160x160 pixels) and a simple keypad with "Enter," "Esc," "Up/Down," and "Left/Right" arrows. This straightforward navigation system makes it easy to select functions, input data, and scroll through information.
Power Supply: The VAG401 is powered directly via the vehicle's diagnostic connector (OBDII-16PIN), eliminating the need for external power sources or batteries. This ensures that the device is always ready for use when connected to a vehicle.
Multi-language Support: The device offers a language selection feature, allowing users to choose from English, German, Italian, Russian, French, Portuguese, Polish, and Greek. This makes the tool accessible to a wider range of users in different regions.
Contrast Adjustment: Users can adapt the display contrast value to suit different lighting conditions, ensuring optimal readability of the screen.
Connection Process: Connecting the VAG401 is a simple three-step process: turn the ignition on, locate the vehicle's 16-pin Data Link Connector (DLC), and connect the VAG401 cable connector to the DLC. The device will then auto-start and display the main menu.

Maintenance Features

The VAG401 includes self-diagnostic features to ensure its own proper functioning.

LCD Test: This function allows users to test the LCD screen, displaying a dynamic image to check for any display issues. Upon completion, it indicates "Test end!"
Keypad Test: This feature enables users to test each key on the device's keypad. When a key is pressed, the screen flashes to confirm its functionality. This helps in identifying any unresponsive buttons.
About Section: The "About" section provides information about the device itself, including its serial number, hardware version (HW), software version (SW), and copyright details. This is useful for support and updates.

The VAG401 is a robust and versatile diagnostic tool, offering comprehensive functionality for maintaining and troubleshooting VW, Audi, Seat, and Skoda vehicles, all within a portable and user-friendly design.
