VAG401 VW/AUDI/SEAT/SKODA
www.Xtooltech.com 5
5. Main features
Display: Backlit LCD,160*160 pixel display.
Favorable----about only 10% of that of professional tool.
Powerful function-----with all the function of VAG1551/1552.
Conveniently connection and simply operation.
Powered via diagnostic connector, no need of power exteriorly
charged.
Operating Temperature: -20℃ to 50℃ .
Storage Temperature: -50 to℃ 70℃ .
6. Appearance and Key Descriptions

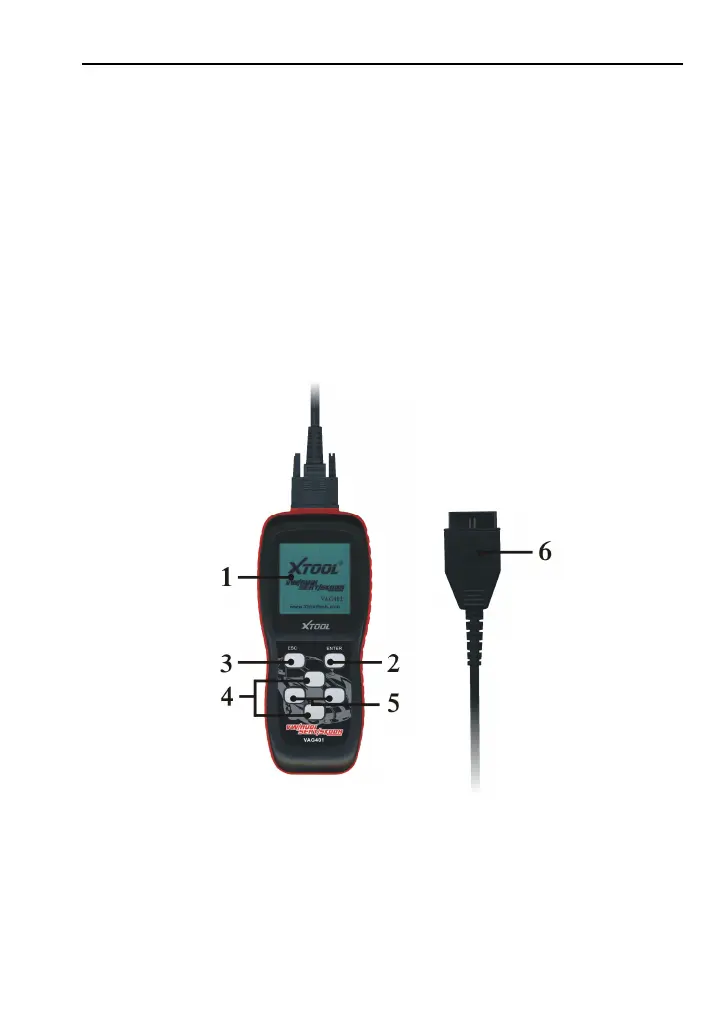

The appearance of a VAG401 is as shown in the above figure.
1. LCD screen: 160*160
2. Enter key: confirm selection and enter
3. Esc key: go back to the previous screens
4. up/down arrows: moves the selection pointer and scrolls up or down
5. LEFT/RIGHT arrows: move cursor.
6. Diagnostic extension cable: OBDII -16PIN
