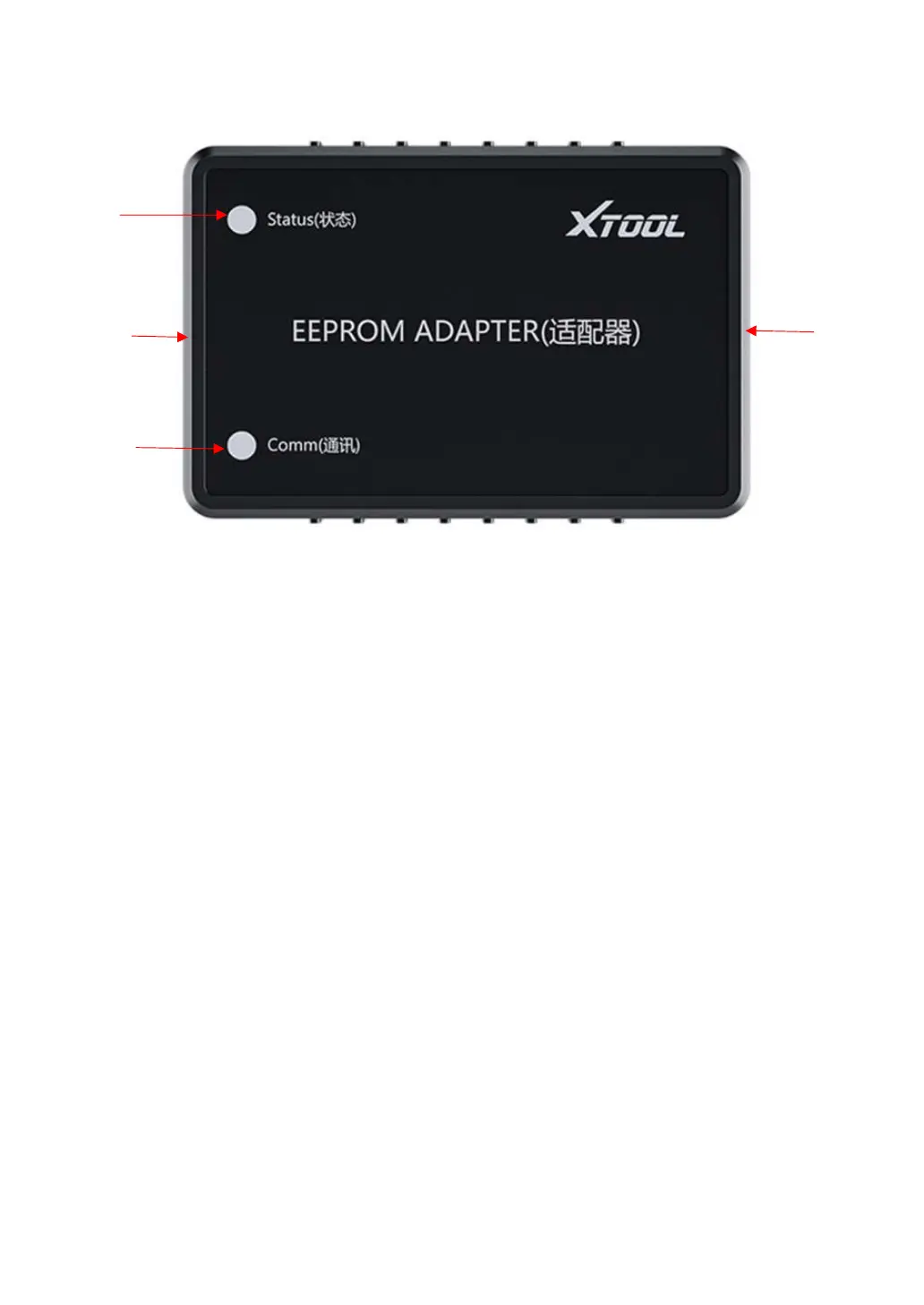

Xtool X100PAD PLUS - EEPROM ADAPTER; 14-Pin Port; DB15 Port

8
① Status Light: Shows status of the EEPROM adapter. Will turn
red when it’s connected to any power supply.
② Comm Light: Shows communication status of the EEPROM
adapter. The light will flash when communicating to the tablet.
③ 14-Pin Port: Used to connect the EEPROM board onto the
adapter.
④ DB15 Port: Used to connect the adapter to the tablet.
①
②
③
④
