1 Introduction
The VESDA-E VEP-A00 is an aspirating smoke detector (ASD) that provides very early warning of fire
conditions by drawing air samples through an air sampling pipe network.

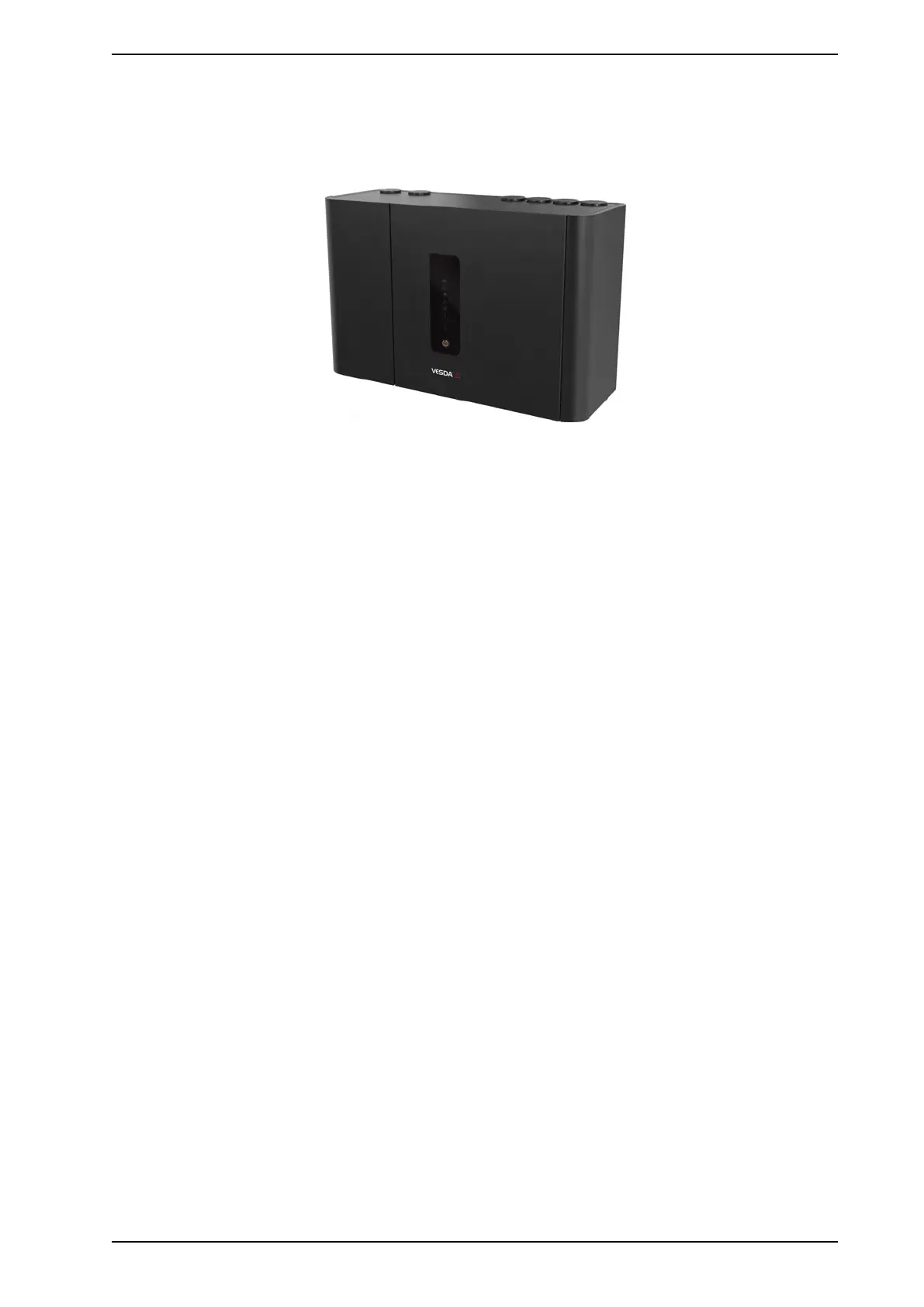

Figure1-1: VESDA-E VEP-A00 Aspirating Smoke Detector
The detector easily interfaces with fire warning and fire suppression release systems, and can be integrated
into a building management system (BMS).
1.1 Features
The VEP-A00 detector contains the following features:
l Short wavelength laser-based detection
l Inherent absolute calibration
l Clean air barrier for optics protection
l More robust contamination resistance
l Wide sensitivity range
l Flow fault thresholds configurable per port
l Long-life, easy-to-replace air sample filter
l Quiet operation
l Advanced remote diagnostics
l Area coverage:
l up to 2,000 m² (21,520 ft²) (VEP-A00-P)
l up to 1,000 m² (10,760 ft²) (VEP-A00-1P)
l Up to four inlet pipes
l Total maximum pipe length:
l Four pipe VEP-A00-P:560 m (1,837 ft)
l One pipe VEP-A00-1P: 130 m (427 ft)
l Referencing
l AutoLearn™ Smoke and Flow
l Seven programmable relays
l Two General Purpose Inputs (GPIs), one monitored and one unmonitored
l Ultrasonic flow sensing
l Xtralis VSC, Xtralis VSM4 and ASPIRE PC software support
l IP 40 enclosure (not UL tested)
l Easy mounting with steel support bracket
l Field replaceable aspirator, sampling module, filter and detection chamber
l VESDAnet networking
l Ethernet 100 base T
l Local host mode USB port
l Easy cable termination access
l Event Log (20,000 events)
