Xtrails VESDA VLF-500-UL User Manual

VESDA VESDA VLF-500-UL 7Ed Product Guide
www.xtralis.com 5
2 Installation
The VESDA VLF detector is shipped with all the components necessary for installation with the exception of
pipe and associated materials.
Components include:
l 1 VESDA VLF detector with fitted exhaust deflector
l 1 Mounting bracket
l 1 End of Line resistor (refer to GPI – General Purpose Input (Terminals 1 & 2) on page 13)
l 2 M4 x 20 mm locking screws
l this Product Guide
Check all components for damage and refer any concerns to your VESDA distributor.
Notes:
l Removing the rear cover of the detector will void your warranty.
l Opening or removing the sealed laser detection chamber will void your warranty.

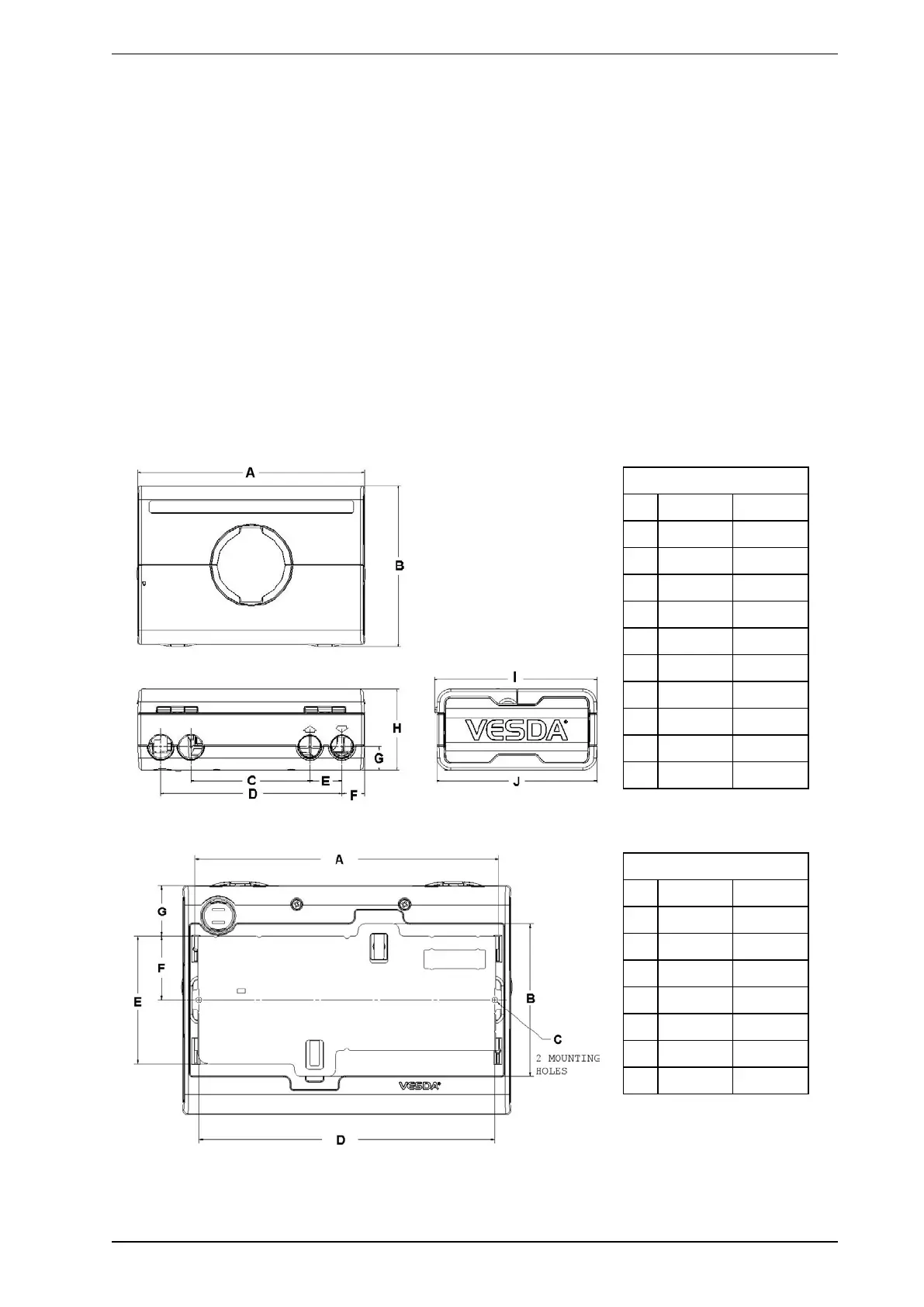

2.1 Dimensions
Legend
inches mm
A 10.08 256
B 7.20 182.8
C 5.28 134.0
D 8.03 204.0
E 1.42 36.0
F 1.00 25.5
G 1.06 27.0
H 3.63 92.1
I 7.20 182.8
J 7.09 180.0
Figure 2-1: Dimensions of the Detector
Legend
inches mm
A 9.30 236.3
B 4.72 120.0
C 0.18 4.5
D 9.06 230.0
E 3.94 100.0
F 1.97 50.0
G 1.57 40.0
Figure 2-2: Dimensions of the Detector with Mounting Bracket
