2.2 Mounting
The VESDA VLF can be installed upright, inverted or horizontally.
Note: Ensure the smoke detector is mounted away from obstructions and below ceiling level.
Caution: An exhaust deflector must be fitted for upright mounting, unless the exhaust port is connected
to a return air pipe.
Caution: Do not install this unit on its side. There is a risk of particulate and condensation collecting on
critical elements of the detector chamber reducing the detectors performance.
Ensure that there is sufficient clearance to mount the detector, noting the location of air sampling pipes and
cable entry points. Owing to the rigid nature of the plastic pipe, installation must provide for sufficient
movement in all pipework (air inlet, air exhaust and cable pipes) to allow pipe ends to be easily fitted and
removed.
Legend
A Min. 8 in. (200 mm) below ceiling level
B Min. 20 in. (500 mm) from a wall or obstruction to allow access to the
security tab
C Do not install the detector on its side

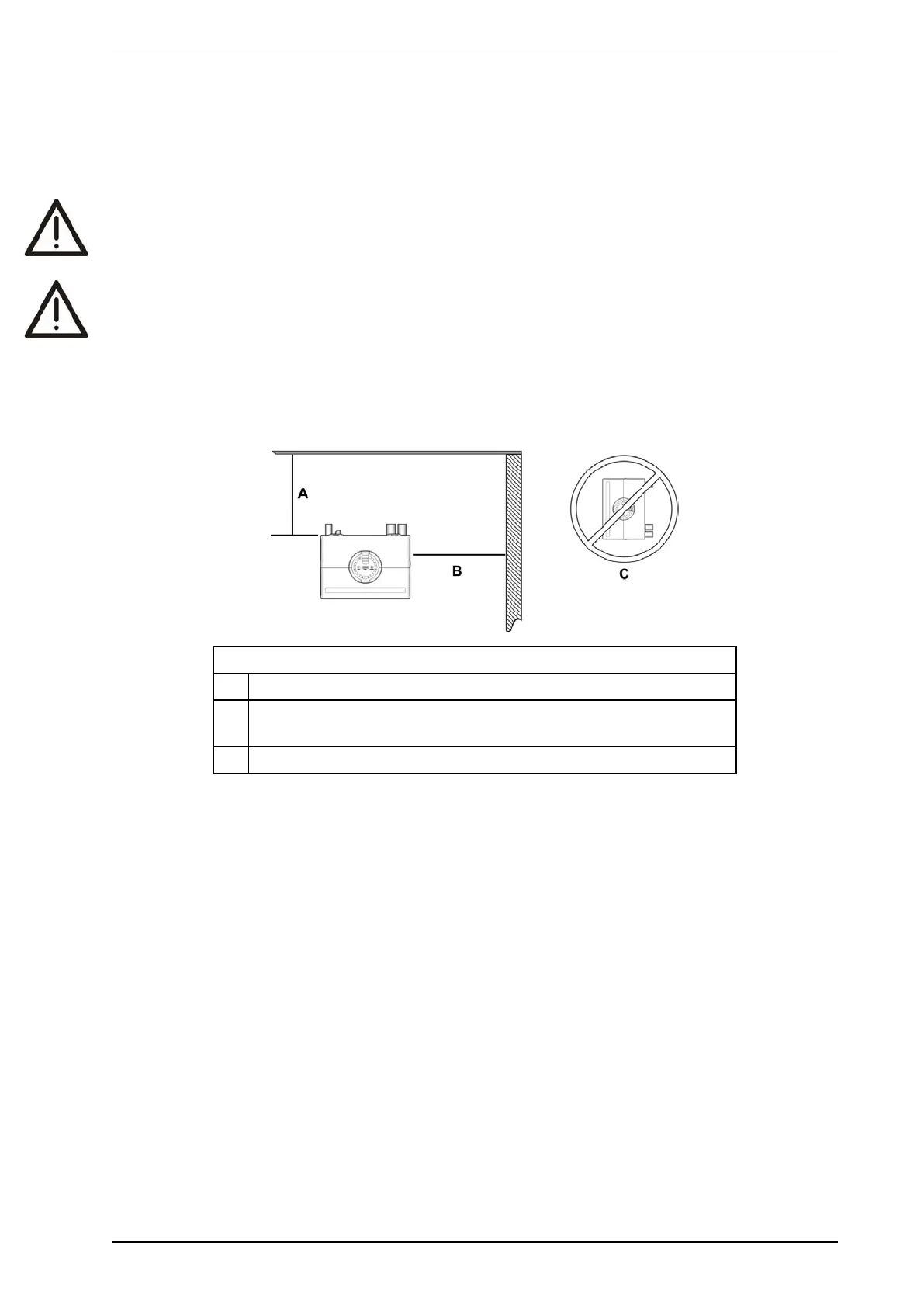

Figure 2-3: Mounting Location
