VESDA VFT Product Guide
VESDA by Xtralis
14 www.xtralis.com

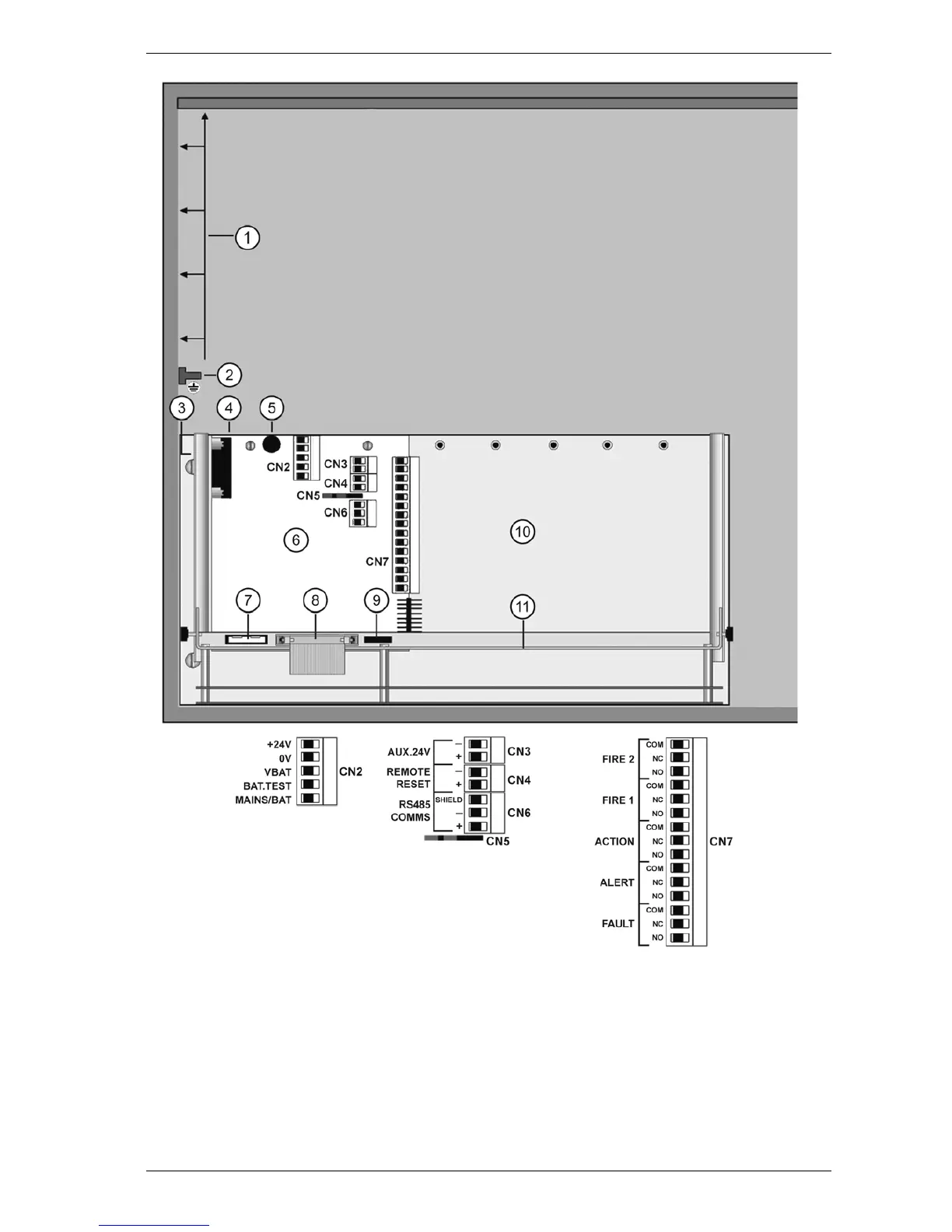

1. Knock-out cable entry holes
2. M5 Chassis grounding stud
3. RS232 connector
4. Ethernet connector
5. Fuse (1 A)
6. Main I/O board
7. Beacon connector
8. Display & valve connector
9. Programming connector
10. Optional I/O modules
11. Drop-down display panel
Figure 3-3: Input and Output Interfaces
Note: CN13 and CN14 are fitted (below CN6) but are not used.
