VESDA by Xtralis
VESDA VFT Product Guide
www.xtralis.com 35

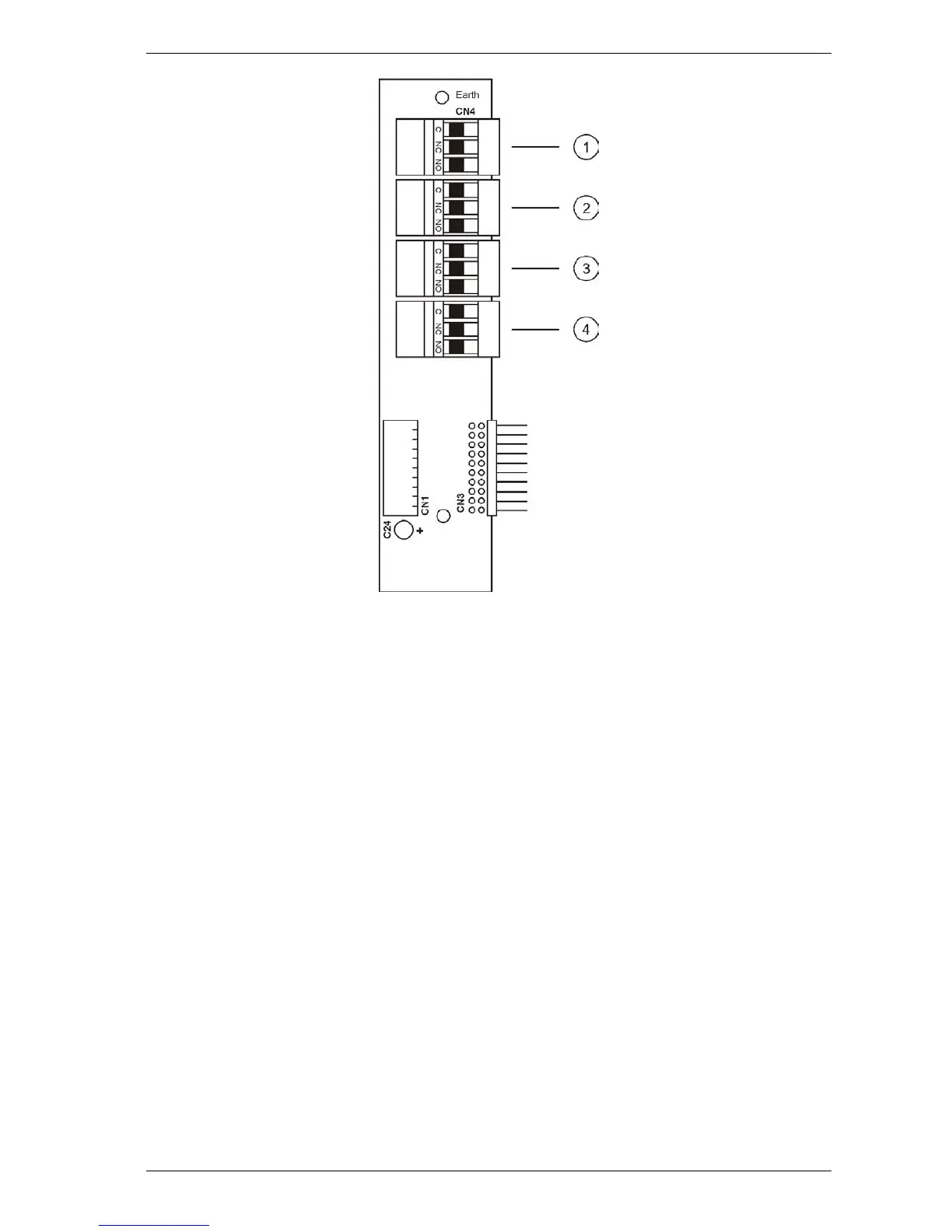

Figure 5-4: Relay Module
Single pole double throw (SPDT) contacts are used in the relay modules with a rating of 2 A at 24 VDC.
