Installation
VESDA Student Workbook 3-5
Detector location
The detector should be installed where it is:
• Accessible, normally the height is 4-5 ft. (1.6m)
to the floor or catwalk
• Safe
• Away from corrosive or hazardous area
• In a normal environmental temperature
• Only 1 DUCT coverage per any detector
• The exhaust cannot be split
– The intake and exhaust need to be in the
same duct
• Will it be exposed to condensation
– Detector can be mounted inverted
– Add water trap if needed
– Pitch sampling tube

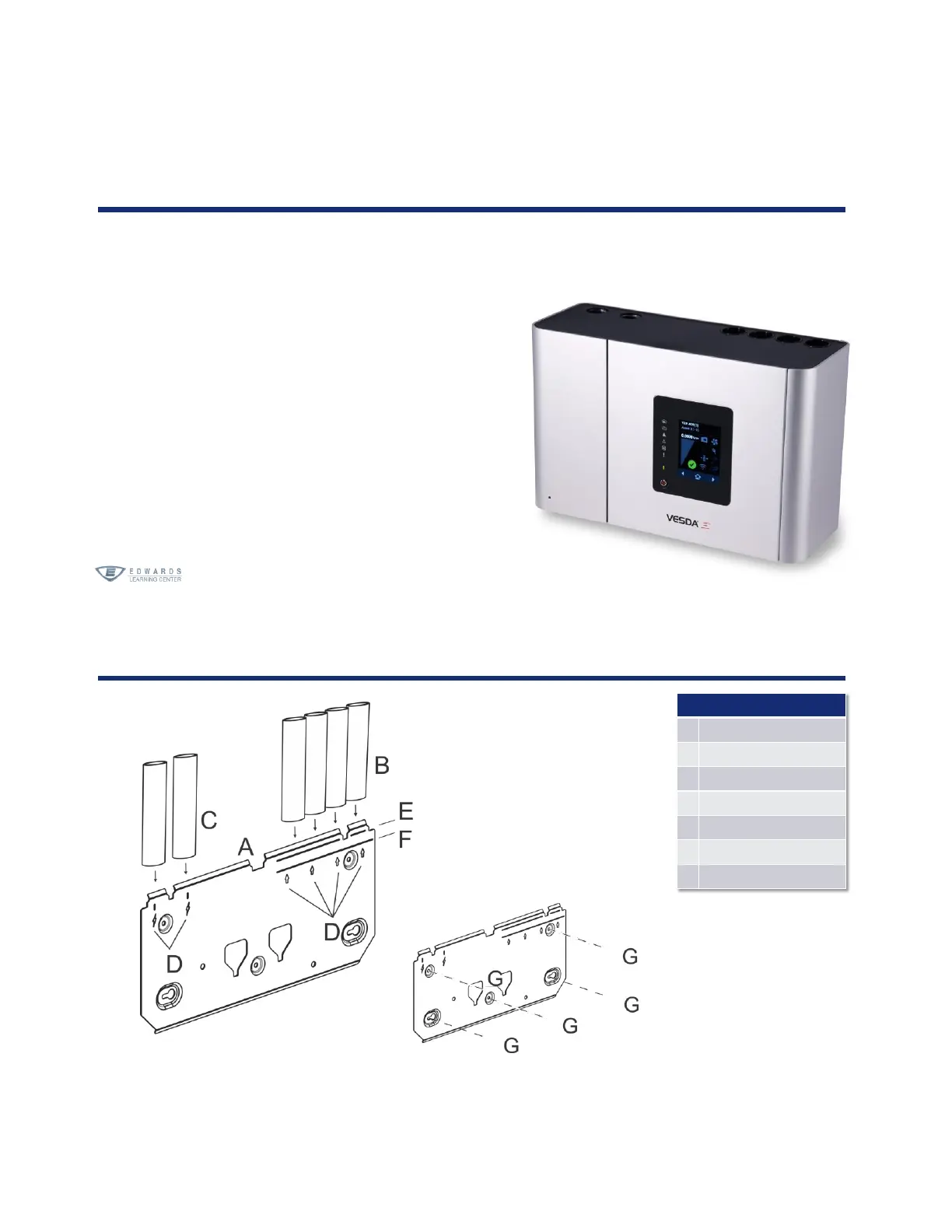

Position the mounting bracket
Legend
A
Mounting bracket
B
Sampling pipes
C
Electrical conduit
D
Alignment marks
E
Top depth line
F
Bottom depth line
G
Five screw holes
