Xtreme XR1255 Operation And Safety Manual

Operation Manual29

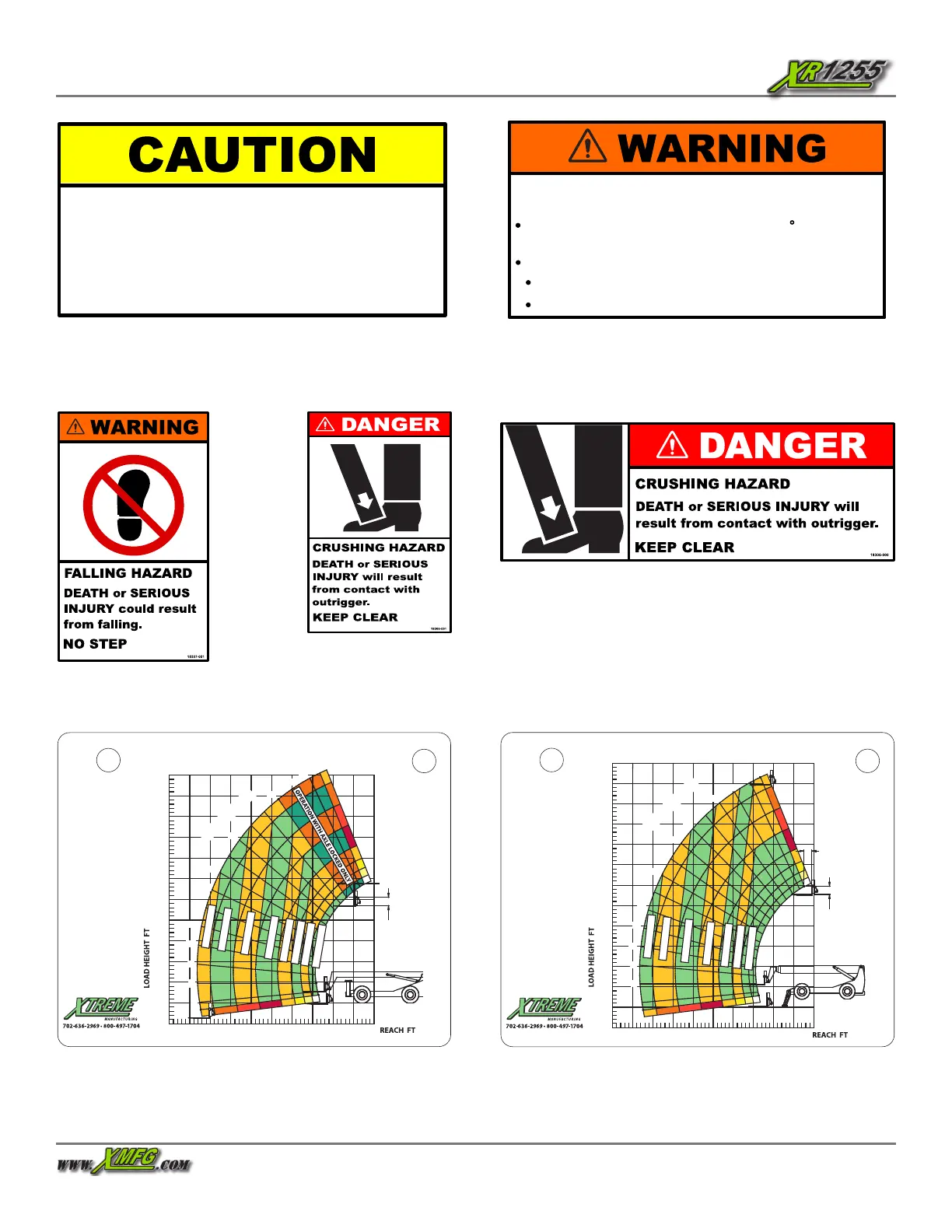

Labels
DAMAGE may result from adjusting forks
when carriage is loaded.
CARRIAGE DAMAGE
ONLY ADJUST FORKS WHEN CARRIAGE
IS UNLOADED.
18331-000
18332-000
DEATH or SERIOUS INJURY could result from
improper operation when using tow connection.
DO NOT EXCEED RATED TOW CAPACITY.
Max vertical load 500 LBS.
Max tow capacity 5000 LBS.
DO NOT ELEVATE BOOM ABOVE 30 WHEN
TOWING.
49) 18331-000 50) 18332-000
51) 18307-001 52) 18306-001
53) 18306-000
XR1255 LOAD CHART OUTRIGGERS DOWN - STANDARD CARRIAGE
P/N 17251-000
THE REAR AXLE MUST
BE LOCKED AND THE
OUTRIGGERS FIRMLY
AGAINST THE GROUND.
LOAD RATINGS
SHOWN ARE FOR
VEHICLES EQUIPPED
WITH FOAM FILLED
TIRES ONLY.
6,000 LBS AT
24 IN MIN
CAPACITY FORK
(12,000 LBS PAIR).
35
50
65
25
68
35
30
25
20
15
10
5
40
45
50
0
55
35
30
25
20
15
10
5
0
40
60
45
0
55
60
20
15
10
30
40
45
5
5
H
G
F
E
D
B
C
A
H
F
B
E
D
C
A
G
6,800 LBS
5,000 LBS
4,000 LBS
8,500 LBS
10,000 LBS
3,000 LBS
12,000 LBS
2.0 FT
LOAD
CENTER
2.0 FT
LOAD
CENTER
BOOM AN G L E
54) 17250-000 55) 17251-000
XR1255 LOAD CHART OUTRIGGERS UP - STANDARD CARRIAGE
P/N 17250-000
2.0 FT
LOAD
CENTER
2.0 FT
LOAD
CENTER
4,700 LBS
3,200 LBS
1,800 LBS
2,200 LBS
H
G
F
E
D
B
C
H
F
B
E
D
C
A
G
BO O M A N G L E
35
30
25
20
15
10
5
0
35
30
25
20
15
10
5
40
45
50
0
40
55
50
55
60
20
65
68
30
25
15
10
5
40
35
0
45
NO OPERATION
ABOVE 55 DEGREES
BOOM ANGLE WITH
REAR AXLE UNLOCKED.
5
12,000 LBS
10,500 LBS
8,700 LBS
6,700 LBS
A
LOAD RATINGS
SHOWN ARE FOR
VEHICLES EQUIPPED
WITH FOAM FILLED
TIRES ONLY.
45
6,000 LBS AT
24 IN MIN
CAPACITY FORK
(12,000 LBS PAIR).
