Operation Manual 42
Operator Cab

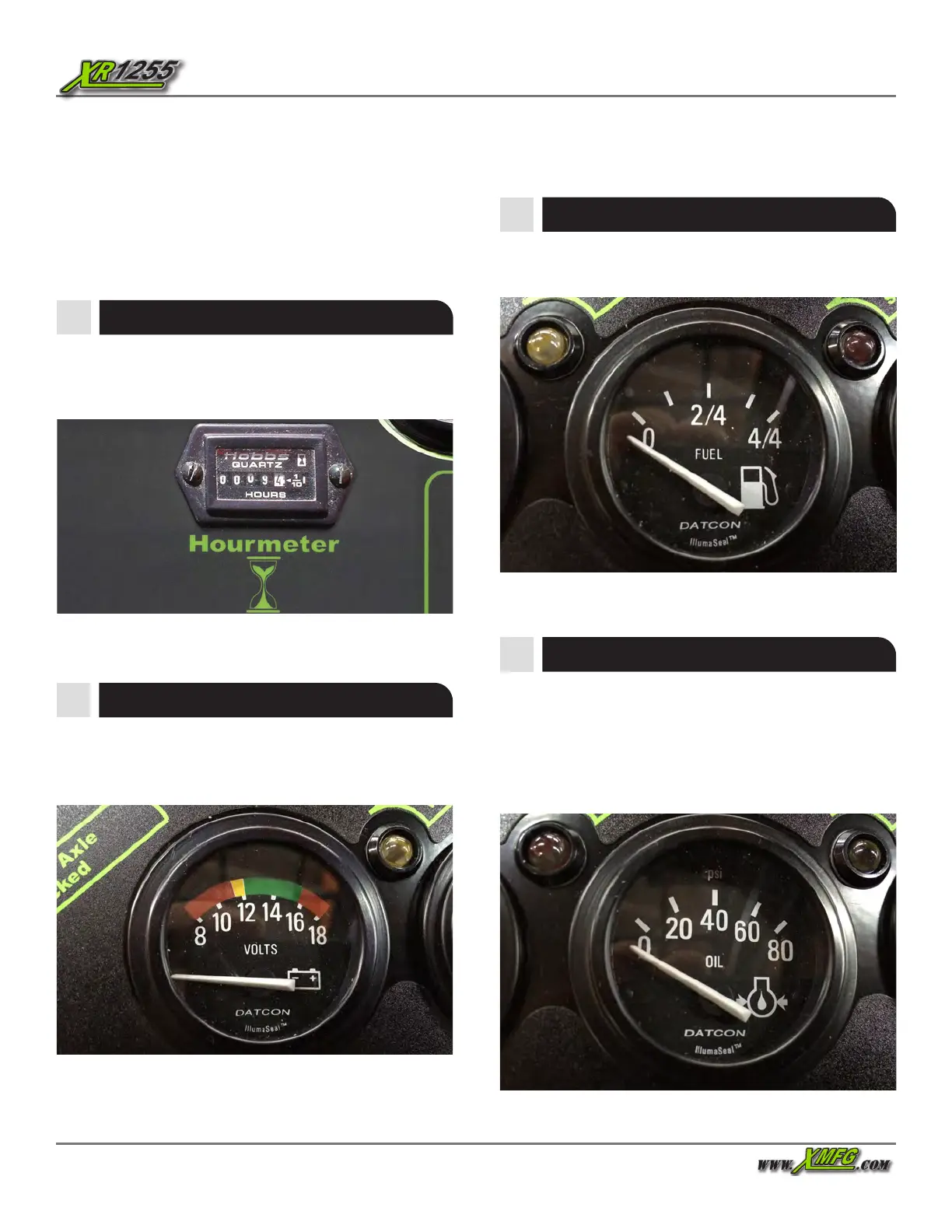

Figure 36. Fuel Gauge
Fuel Gauge
The fuel gauge indicates the quantity of fuel in the fuel tank.
The total capacity of the fuel tank is 72 gallons.
Figure 37. Oil Gauge
Oil Gauge
The oil gauge indicates the engine oil pressure. Normal engine
oil pressure readings should be between 40 and 80 PSI. If the
oil gauge shows abnormal readings, stop the forklift, follow
proper shut down procedures, tag the forklift with “Do Not
Operate” tags, and have a qualied mechanic service or repair
the forklift BEFORE placing it into service again.
Figure 35. Voltage Gauge
Voltage Gauge
The voltage gauge indicates the amount of charge (in Volts).
Normal system voltage is between 11 and 15 Volts. If the
voltage gauge shows abnormal readings, stop the forklift,
Hour meter
The Hour meter indicates and records engine operating hours
and has a total readout of 9,999.9 hours. Use the hour meter
to establish a forklift maintenance schedule.
Figure 34. Hour meter
follow proper shut down procedures, tag the forklift with “Do
Not Operate” tags, and have a qualied mechanic service or
repair the forklift BEFORE placing it into service again.
4. To enter password use the Arrow Key (<) to scroll through
numbers (0-9) and use the Arrow Key (>) to switch to next
number
5. Enter the password: “1111”
6. This will allow you access to the “OEM Menu”
7. Scroll to “Clear Fault Codes” and press ENTER
8. Press MENU button twice to return to the Main screen
