Operation Manual 46
Operator Cab

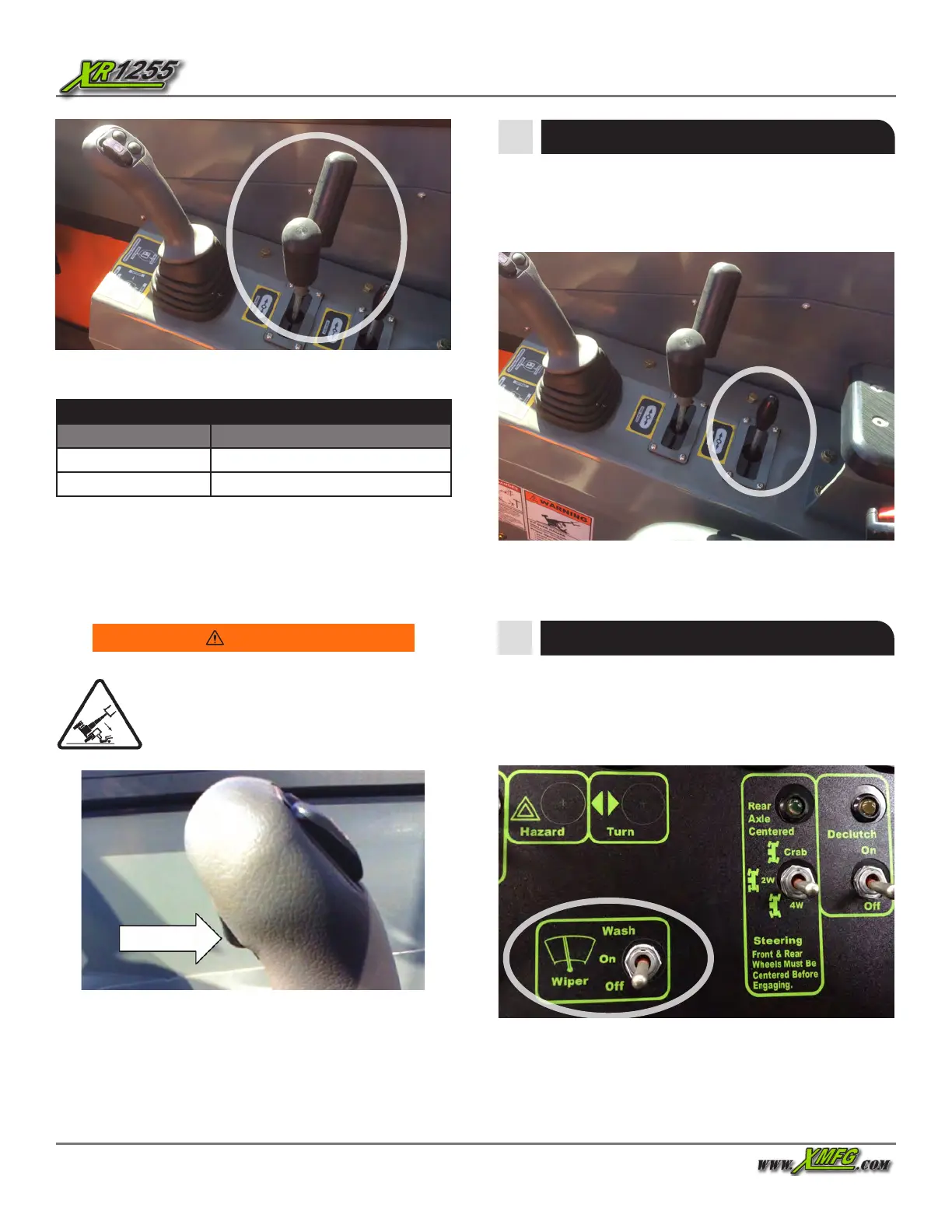

Figure 48. Frame Sway Control Handle
Frame Sway Control Handle
Function Purpose
Frame sway right Move handle right
Frame sway left Move handle left
NOTE: Lock the frame sway by placing the travel select lever
in NEUTRAL or applying the service or parking brake.
NOTE: Maximum frame sway is 22 overall or 11 each
direction, left and right.
Warning
The forklift includes a Frame Sway Override
switch. Improper use of the Frame Sway
Override switch could cause death, serious
injury, or property damage.
Auxiliary Attachment Control
The Auxiliary Attachment Control lever controls the functions
of approved optional attachments that can be mounted to
the forklift and require hydraulic supply for operation.
Figure 50. Auxiliary Attachment Control Lever
Windshield Washer and Wiper Switch
Figure 49. Frame Sway Control Handle
The frame sway feature becomes locked and will not operate
when the boom is raised 40° or more. Pressing the Frame
Sway Override switch (the trigger) on the control handle will
override the lockout feature and allow slow frame sway.
Flip the toggle switch to WASH to spray windshield washer
uid onto the windshield; ip the switch to ON to turn the
windshield wiper on. The OFF position turns the wiper o.
Figure 51. Windshield Washer and Wiper Switch
