XTU S3 - Camera Mounting Methods; Mounting with Waterproof Case

-32-
Mounting Your Camera
1
1
3
3
4
4
2
2
J-Base
Waterproof
Case
Helmet
Base
Long
Screw

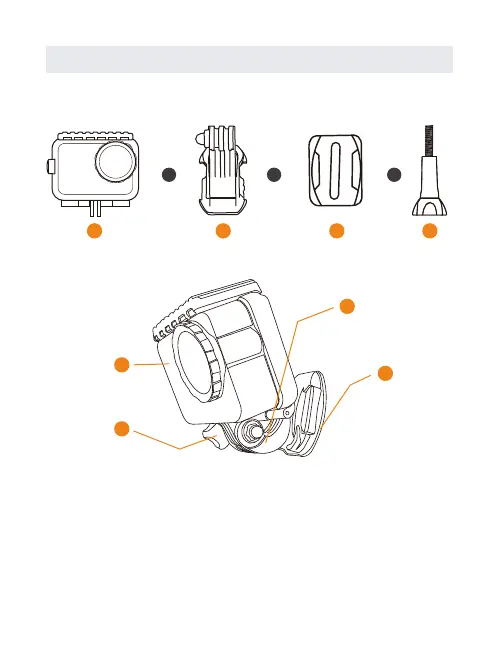

Use the Waterproof Case to attach your camera to mounts.
Method A:
+ + +
Step 1: Interlock the mounting fingers on the Waterproof
Case with the mounting fingers on the J-Base, and then
secure them with a screw.
Step 2: Slide the Helmet Base into the J-Base bottom until
it clicks into place.
Step 3: Stick the Adhesive Pads on the bottom of the
Helmet Base. Find a suitable position and fix the camera on
the helmet.
