104

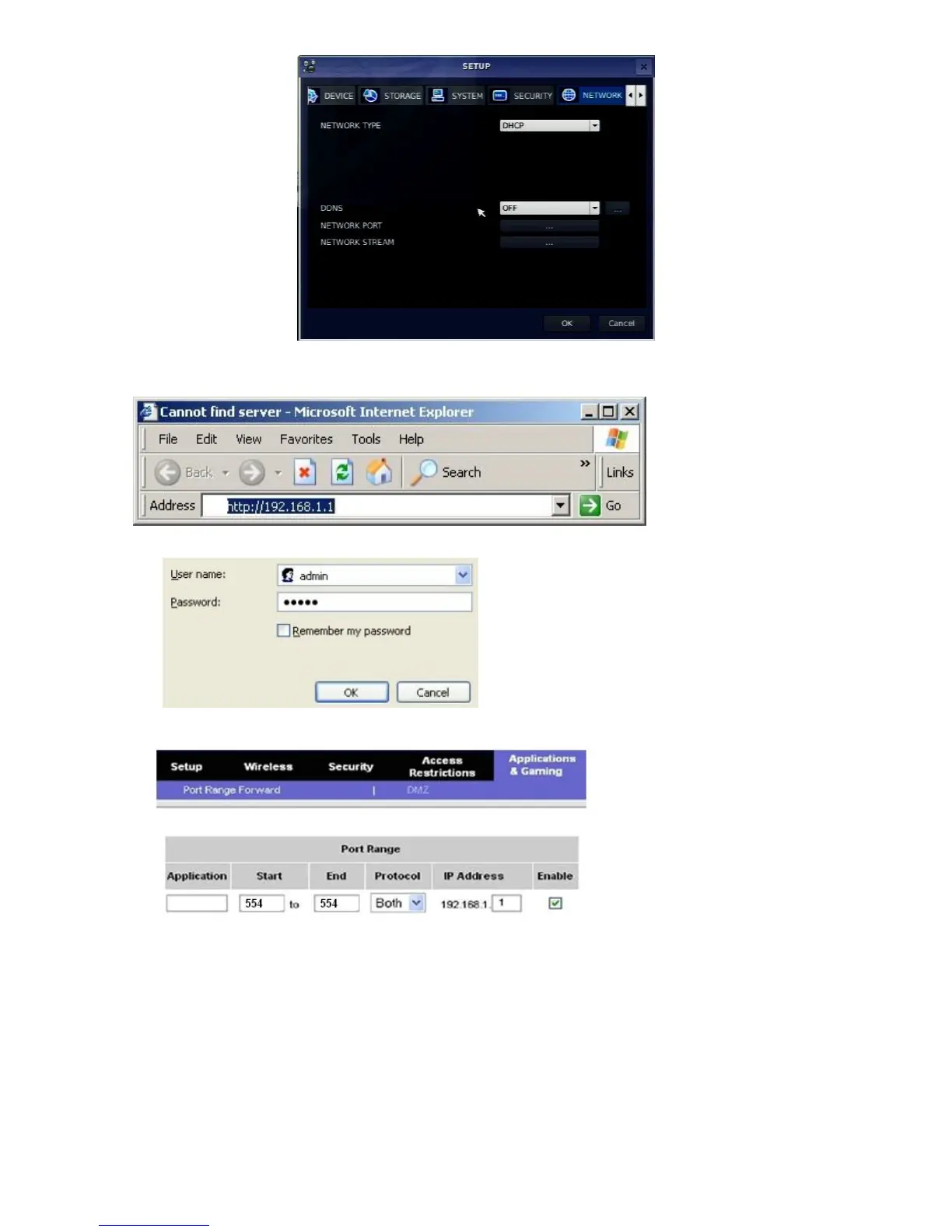

Open your web browser. Enter the router IP address in the address bar (The router IP address are different
with the brand and model.), click GO.
4. Enter the user name and password (admin is default) and press the OK button.
5. Select the Port Range Forwarding tab.
6. Enter the each field.
i. Application: Enter a description of the DVR (Example: store1)
ii. Start: Enter the first number of the port you need to port forward (Example: 5445)
iii. End: Enter the last number of the port you need to port forward (Example: 5445)
iv. Protocol: Select Both.
v. IP address: Enter the IP address of the DVR on SETUP>NETWORK>LAN>IP ADDRESS.
vi. Enable: Check the enable box.
To Next Page
