2
20 psi (1.4 bar) min.
80 psi (5.5 bar) max
34°F (1.1°C)
120°F (49°C)
T5000 — GAS (CO
2
)/AIR DRIVEN PUMP
Flojet’s T5000 air operated diaphragm pump is designed to offer superior performance and reliability for
dispensing Bag-In-Box syrups, juice concentrates, teas and liquor.

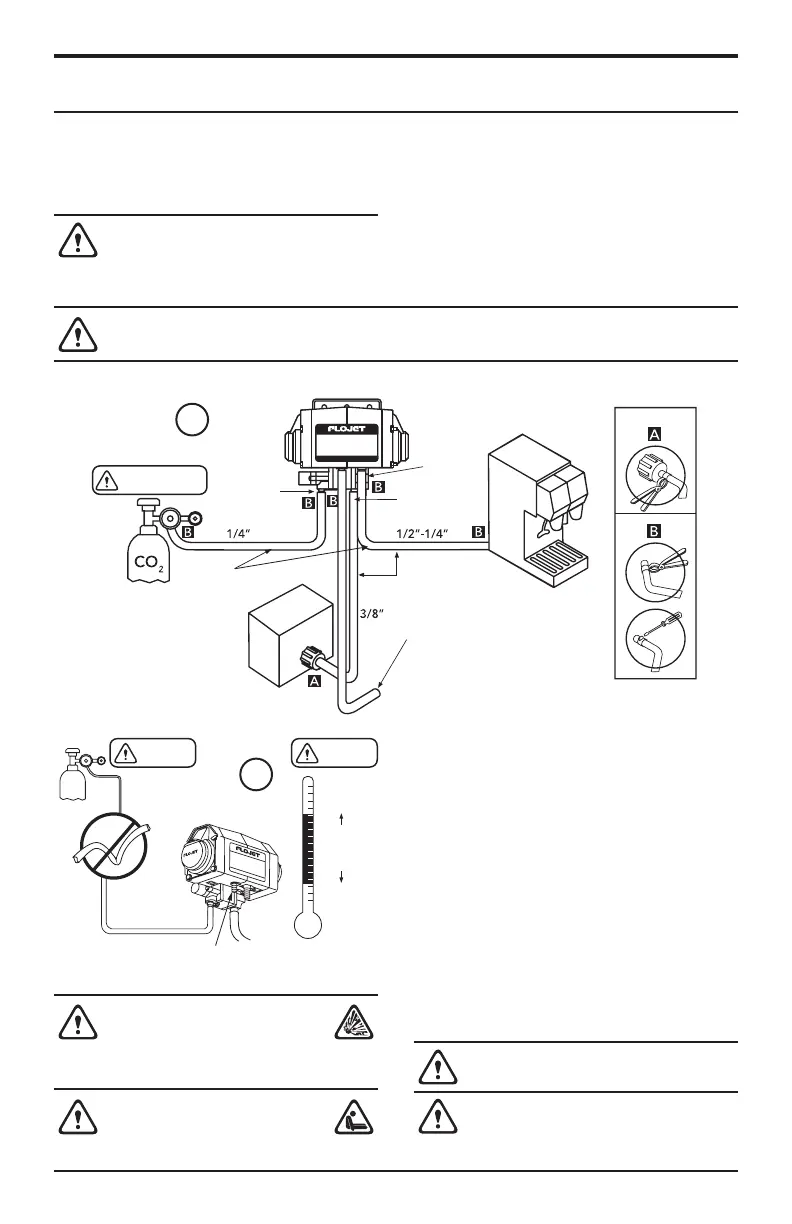

Mounting and Installation
CAUTION: Fasten pump and mounting brackets
securely to rack or mounting board. Refer to Figure 3 for
maximum and minimum operating parameters. Install
as shown in figure 2 (typical installation) and figure 4
(initial installation).
WARNING: Do not use pump if it presents some
damage such as broken port clips.
NOTICE: END OF LIFE PRODUCT
DISPOSAL
Handle and dispose of all waste in compliance with
local laws and regulations.
WARNING: EXPLOSION HAZARD
Only used with specified products. DO
NOT PUMP LIQUIDS WITH A FLASH POINT
BELOW 100°F (37.8°C) OR USE WHERE FLAMMABLE VAPORS
ARE PRESENT.
DANGER: ASPHYXIATION HAZARD
If used with CO
2
or N
2
be sure the area
is well ventilated or gas is exhausted to
outside atmosphere via hose.
Increase CO
2
pressure. Open dispense valve to purge air from
system. Product flow and pressure can be adjusted by increasing
or decreasing gas pressure for varying product viscosities, line
lengths or other installation conditions.
NOTE: The pump is sanitized at factory. For full installation and
product specifications refer to F100-253 and 91000-342.
2
CAUTION 0 PSI
GAS
IN
Reinforced
Food grade
only
Gas oulet port
Liquid Inlet Pressure
10 psi (0.7 bar) max
Safe Fluid
Operating
Temperature
GAS OUT
If pump is driven other than air, remove
Air Exhaust Muffler, attach hose and
vent to outside atmosphere
LIQUID
OUT
BIB Connector
LIQUID
IN
3
CAUTION CAUTION
Operation
Refer to Figure 3. for minimum and maximum parameters.
Pump will operate automatically by starting and stopping on
demand maintaining constant pressure at the dispensing valve.
The Flojet Model T5000 has an auto shutoff valve which stops the
pump by shutting off the gas supply when high vacuum builds
up in the inlet line when the bag is empty. The pump will automat-
ically restart when a new bag is connected and vacuum in the inlet
line has returned to normal.
The FLOJET brass gas inlet fitting (fig. 5) includes a gas shut-off
valve that automatically activates when fitting is disconnected. This
eliminates the need to shut off the gas supply to other systems
in use. Gas pressure is restored when the port is plugged into
the pump again. Refer to F100-253 installation booklet for full
operation and trouble shooting.
WARNING: Pump is NON-REPAIRABLE. Do not modify or alter the pump in any way as this could lead to CO
2
or liquid
leaks resulting in property damage, severe personal injury and/or death.
