Approval plates
These approval plates apply to an explosion-proof submersible Flygt pump.
The plates are used together with the general data plate on the pump.

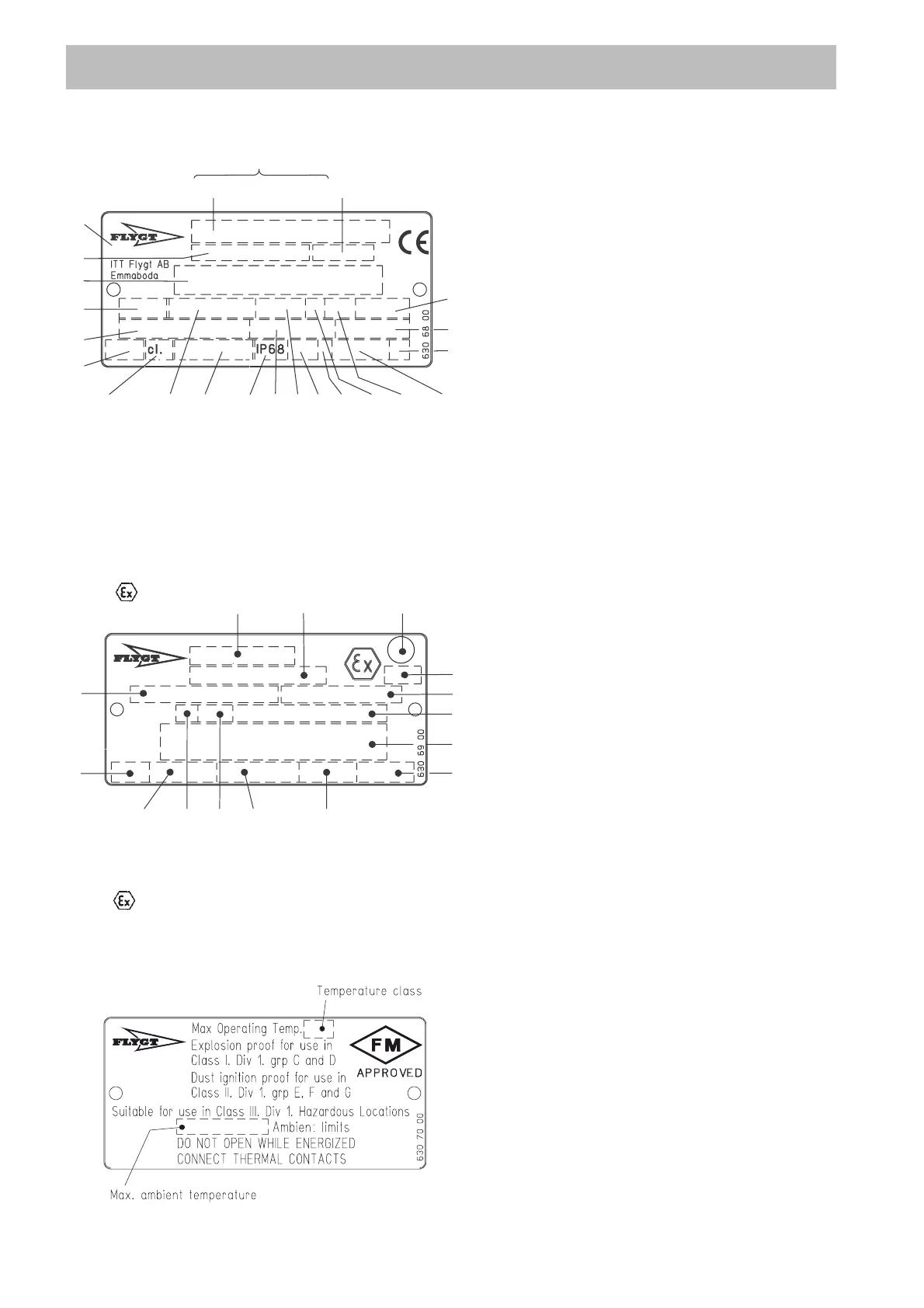

DATA PLATE INTERPRETATION
FM: Factory Mutual
Class I Div. I Grp C and D
Class II and III Div. I Grp E, F and G
A Approval
B Approval authority + Approval Number
C Approval for Class I
D Approved drive unit
E Stall time
F Starting current / Rated current
G Duty class
H Duty factor
I Input power
J Rated speed
K Controller
L Additional information
M Max. ambient temperature
N Serial number
O ATEX marking
D
A
N
K
L
M
CB
F
E
G
I
J
H
O
EN: European Norm
ATEX Directive
EN 50014, EN 50018, EN 1127-1
II 2 G EEx dII T4
General data plate
A Serial number
B Product code + Number
C Curve code / Propeller code
D Country of origin
E Product number
F Additional information
G Phase; Type of current; Frequency
H Rated voltage
I Thermal protection
J Thermal class
K Rated shaft power
L International standard
M Degree of protection
N Rated current
O Rated speed
P Max. submergence
Q Direction of rotation: L=left, R=right
R Duty class
S Duty factor
T Product weight
U Locked rotor code letter
V Power factor
X Max. ambient temperature
A
M
L
N
V
U
TRSQPO
I
JK
H
G
F
E
D
B
C
EN approval for the Cable entry
Certificate number: INERIS 03ATEX9008 U
II 2 G or IM2 EEx d IIC or EEx d I
