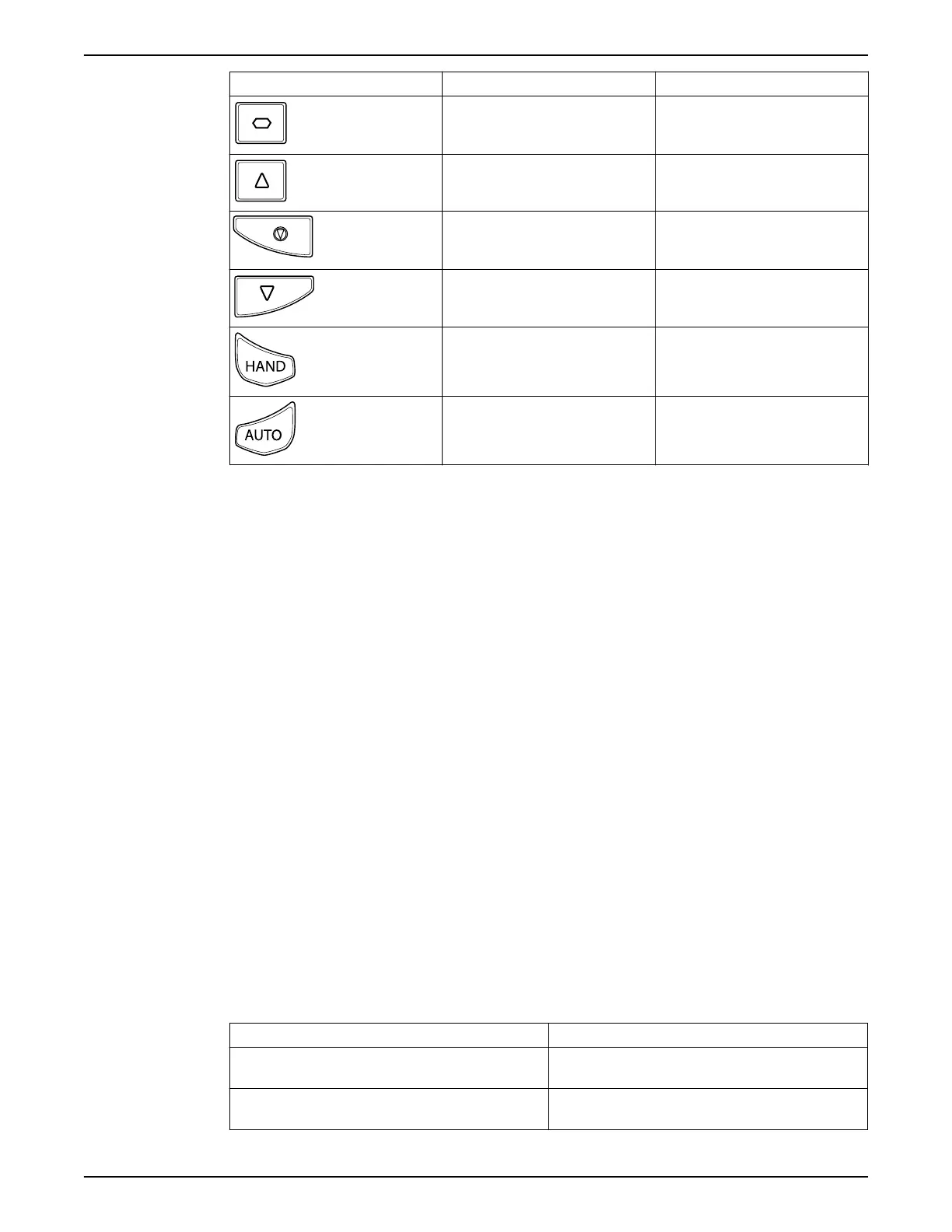

Symbol Name Description
Navigate The button is used to enter/exit
(2 seconds) the menu and to confirm
selection/change (< 2 seconds).
Up The button is used to increase a value
or selection in the submenu.
Off The button is used to reset a tripped
drive and to stop the drive in manual
mode.
Down The button is used to decrease a value
or selection in the submenu.
Hand The button is used to enter the
manual mode.
Auto The button is used to enter the
automatic mode
Set up the communication address manually
At the initial start-up, the operator panel sets up the communication address
automatically. To set the address manually, do the following:
1. When the operator panel displays Select Drive Address 01, then adjust the address
from 1 to 63 using the up or down button.
2. Confirm the address of the connected drive and press the off button.
Work with a multiple drive network
1. Press the off and down buttons on the operator panel at the same time.
The operator panel displays Select Drive Address xx where xx represents the current
drive address.
2. Press the up and down buttons on the operator panel to select the drive address.
3. Press the off button to establish the communication between the operator panel and
the drive.
Work with two operator panels
The operator panels are set to Optipad ID 01 by default.
To ensure the correct operation, change the identity on the second operator panel.
1. Press the navigate, off and down buttons on the operator panel at the same time.
The operator panel displays Select Optipad ID xx where xx is 01 or 02.
2. Press the up and down buttons on the operator panel to select the operator panel
identity.
3. Press the off button to return to the normal operation.
Number of operator panels Information
One operator panel The Optipad ID 01 setting is required for the correct
functionality.
Two operator panels It is impossible to upload new drive software when
Optipad ID 02 is present in the network.
