Product Description
Operator panel design
Description
The operator panel is a remote keypad and display.
Dimensions

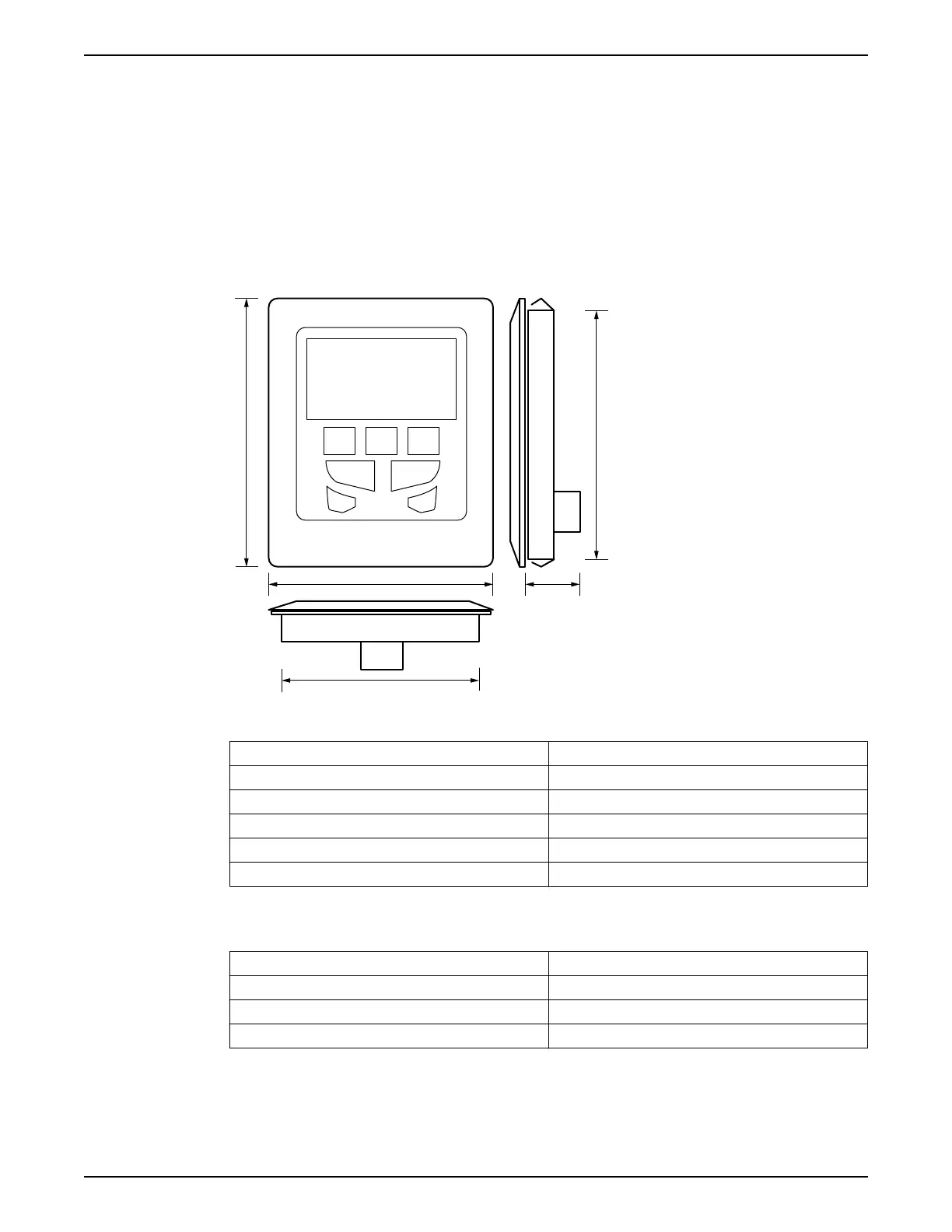

The figure illustrates the dimensions of the product and of the cut-out area.
1. 110 mm (4.3 in)
2. 90 mm (3.5 in)
3. 81 mm (3.2 in)
4. 102 mm (4.0 in)
5. 18 mm (0.7 in)
Electrical requirements
Feature Value
Signal interface Standard 8–way RJ45 connector
Supply input 24 V +/- 10%, DC, 30 mA
RS485 signal Industry standard 2–wire +5 V differential
Protection rating IP54
Maximum cable length 25 m (82.5 ft) shielded twisted pair, with internal power
Environmental requirements
The product is intended for indoor use only.
Feature Value
Operating temperature −10–50°C (14–122°F)
Relative humidity <95% non-condensing
UV-light The product must be protected from direct sunlight
Product Description
EOP1 Operator Panel Installation, Operation, and Maintenance manual 5
