Xylem Goulds 3HM Technical Manual

PAGE 15
Commercial Water
Goulds Water Technology

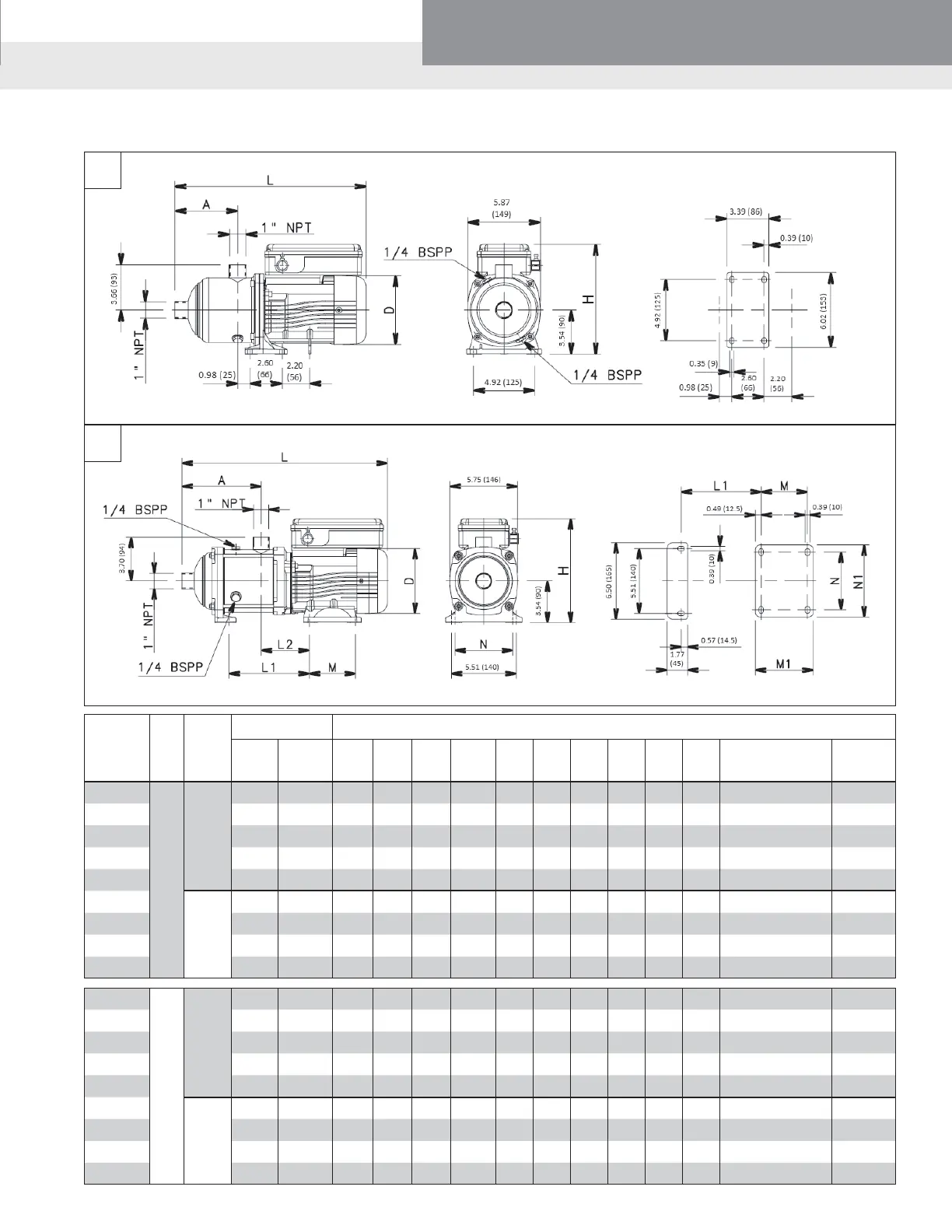

1HM..N SERIES, (2 TO 10 STAGES)
DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
X
Z
Pump
Size
Stages
Phase
DWG
No.
Motor Dimensions (in)
HP
Frame
Size
A D H L L1 L2 M M1 N N1
Max. Working
Pressure (PSI)
Weight
(lbs)
1HM02
SING0E PHASE
X
0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
1HM03 0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
1HM04 0.75 71 4.21 5.51 8.86 14.57 –––––– 147 20
1HM05 0.75 71 5.00 5.51 8.86 15.35 –––––– 147 20
1HM06 0.75 71 5.79 5.51 8.86 16.14 –––––– 147 20
1HM07
Z
1 71 5.94 5.51 8.86 16.69 6.02 4.09 3.94 4.92 4.92 6.10 235 24
1HM08 1 71 6.73 5.51 8.86 17.48 6.81 4.09 3.94 4.92 4.92 6.10 235 26
1HM09 1 71 7.52 5.51 8.86 18.27 7.60 4.09 3.94 4.92 4.92 6.10 235 26
1HM10 1.5 80 8.31 6.10 9.13 20.79 8.39 4.09 3.94 4.92 4.92 6.10 235 35
1HM02
THREE PHASE
X
0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
1HM03 0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
1HM04 0.75 71 4.21 5.51 8.86 14.57 –––––– 147 20
1HM05 0.75 71 5.00 5.51 8.86 15.35 –––––– 147 20
1HM06 0.75 71 5.79 5.51 8.86 16.14 –––––– 147 20
1HM07
Z
1 71 5.94 6.10 9.13 18.43 6.02 4.09 3.94 4.92 4.92 6.10 235 31
1HM08 1 71 6.73 6.10 9.13 19.21 6.81 4.09 3.94 4.92 4.92 6.10 235 33
1HM09 1 71 7.52 6.10 9.13 20.00 7.60 4.09 3.94 4.92 4.92 6.10 235 33
1HM10 1.5 80 8.31 6.10 9.13 20.79 8.39 4.09 3.94 4.92 4.92 6.10 235 35
