Xylem Goulds 3HM Technical Manual

PAGE 17
Commercial Water
Goulds Water Technology

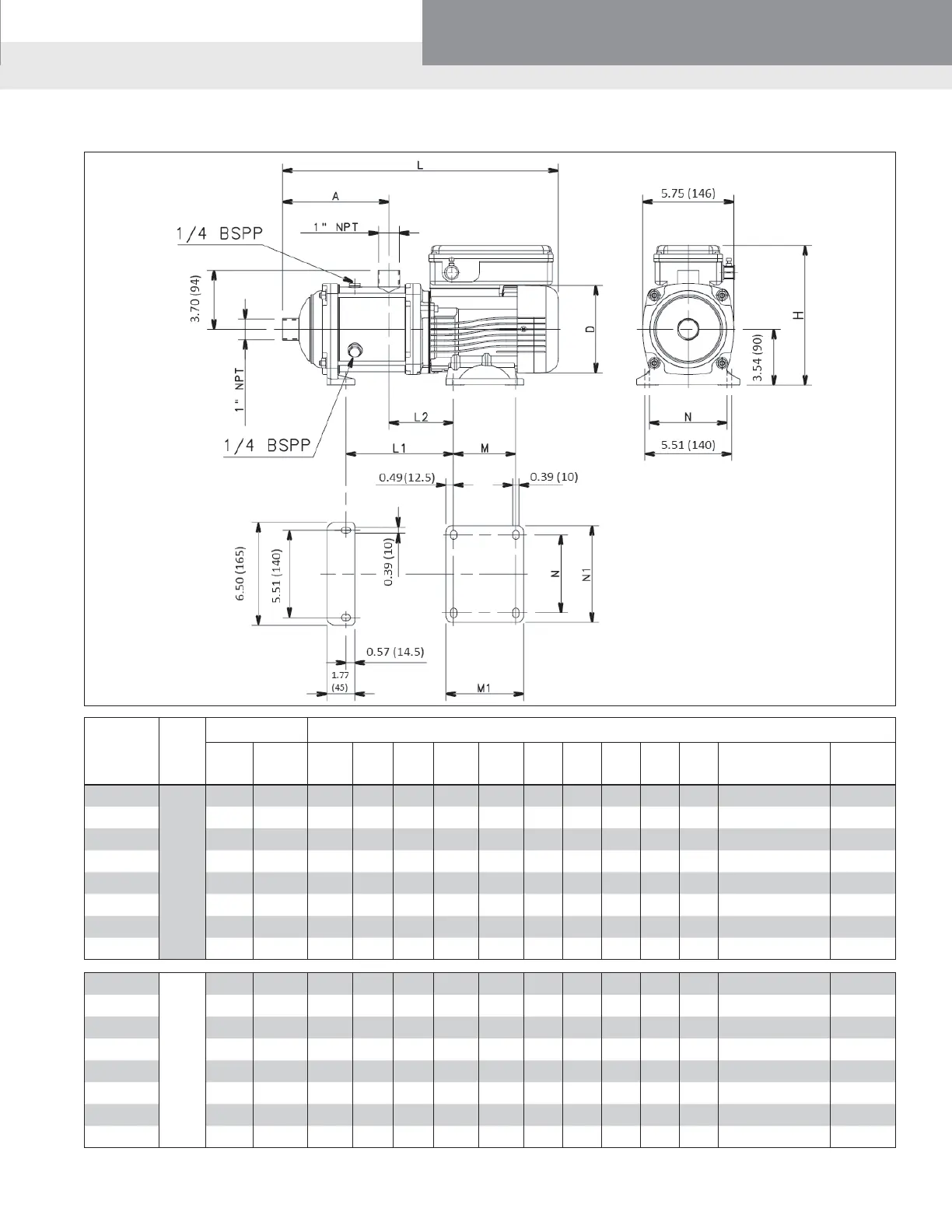

1HM..N SERIES, (11 TO 18 STAGES)
DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
Pump
Size
Stages
Phase
Motor Dimensions (in)
HP
Frame
Size
A D H L L1 L2 M M1 N N1
Max. Working
Pressure (PSI)
Weight
(lbs)
1HM11
SING0E PHASE
1.5 80 9.09 6.10 9.13 21.57 9.17 4.09 3.94 4.92 4.92 6.10 235 37
1HM12 1.5 80 9.88 6.10 9.13 22.36 9.96 4.09 3.94 4.92 4.92 6.10 235 37
1HM13 1.5 80 10.67 6.10 9.13 23.15 10.75 4.09 3.94 4.92 4.92 6.10 235 37
1HM14 2 80 11.46 6.10 9.13 23.94 11.54 4.09 3.94 4.92 4.92 6.10 235 42
1HM15 2 80 12.24 6.10 9.13 24.72 12.32 4.09 3.94 4.92 4.92 6.10 235 42
1HM16 2 80 13.03 6.10 9.13 25.51 13.11 4.09 3.94 4.92 4.92 6.10 235 42
1HM17 2 80 13.82 6.10 9.13 26.30 13.90 4.09 3.94 4.92 4.92 6.10 235 44
1HM18 2 80 14.61 6.10 9.13 27.09 14.69 4.09 3.94 4.92 4.92 6.10 235 44
1HM11
THREE PHASE
1.5 80 9.09 6.10 9.13 21.57 9.17 4.09 3.94 4.92 4.92 6.10 235 37
1HM12 1.5 80 9.88 6.10 9.13 22.36 9.96 4.09 3.94 4.92 4.92 6.10 235 37
1HM13 1.5 80 10.67 6.10 9.13 23.15 10.75 4.09 3.94 4.92 4.92 6.10 235 37
1HM14 2 80 11.46 6.10 9.13 23.94 11.54 4.09 3.94 4.92 4.92 6.10 235 42
1HM15 2 80 12.24 6.10 9.13 24.72 12.32 4.09 3.94 4.92 4.92 6.10 235 42
1HM16 2 80 13.03 6.10 9.13 25.51 13.11 4.09 3.94 4.92 4.92 6.10 235 42
1HM17 2 80 13.82 6.10 9.13 26.30 13.90 4.09 3.94 4.92 4.92 6.10 235 44
1HM18 2 80 14.61 6.10 9.13 27.09 14.69 4.09 3.94 4.92 4.92 6.10 235 44
