Xylem Goulds 3HM Technical Manual

PAGE 29
Commercial Water
Goulds Water Technology
15HM..N SERIES, (1 TO 4 STAGES)

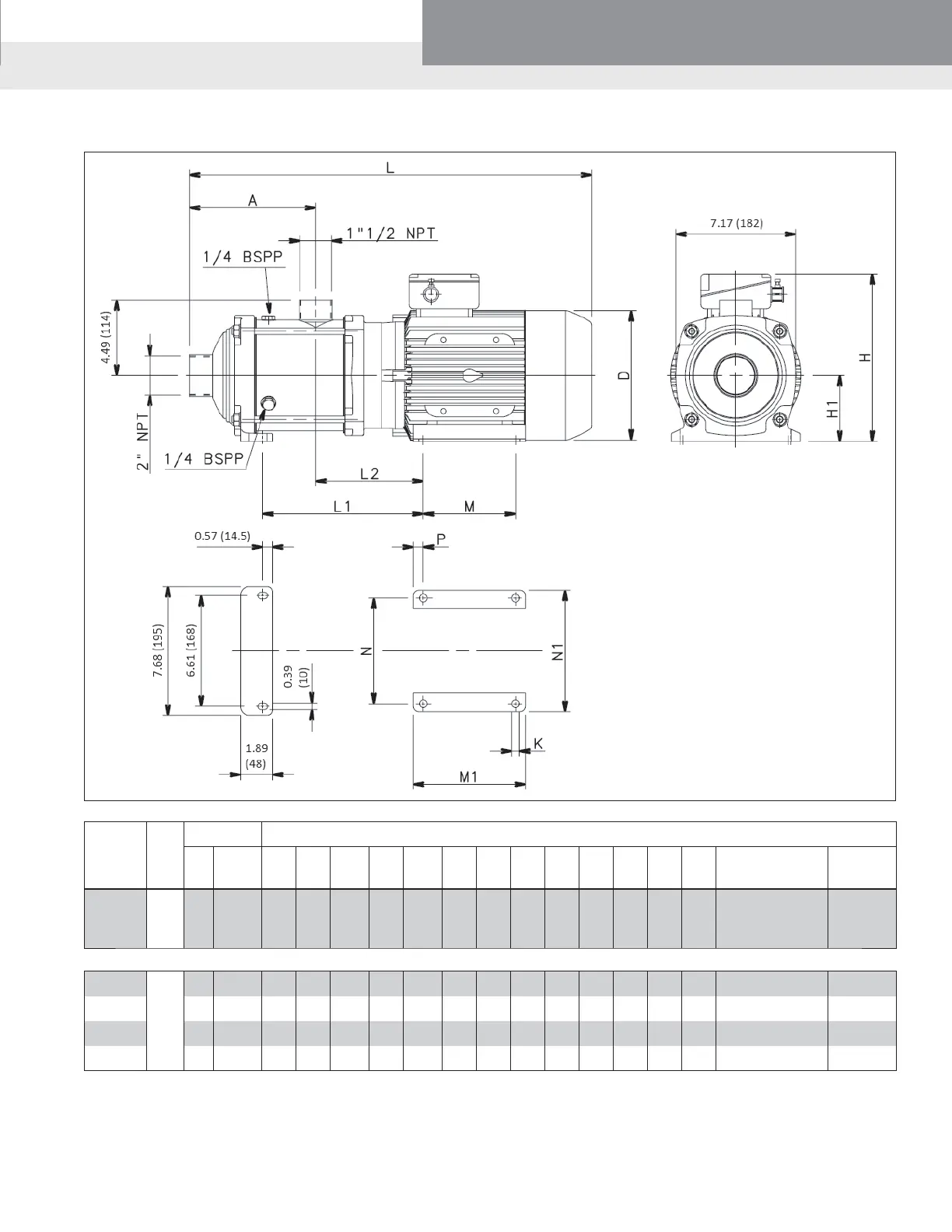

DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
Pump
Size
Stages
Phase
Motor Dimensions (in)
HP
Frame
Size
A D H H1 L L1 L2 M M1 N N1 P K
Max. Working
Pressure (PSI)
Weight
(lbs)
15HM01
SING0E
PHASE
2 80 5.67 6.10 9.13 3.54 18.82 6.06 4.76 3.94 4.92 4.92 6.10 0.49 0.39 235 38
15HM01
THREE PHASE
2 80 5.67 6.10 9.13 3.54 18.82 6.06 4.76 3.94 4.92 4.92 6.10 0.49 0.39 235 38
15HM02 4 90 5.67 6.85 9.13 3.54 20.87 6.93 5.67 4.92 5.91 5.51 6.46 0.49 0.39 235 58
15HM03 5.5 100 5.67 7.76 10.00 3.94 22.17 7.72 6.42 5.51 6.69 6.30 7.24 0.59 0.47 235 71
15HM04 7.5 112 7.56 8.43 11.02 4.41 25.39 9.88 6.69 5.51 6.69 7.48 8.62 0.59 0.47 235 89
