PAGE 31
Commercial Water
Goulds Water Technology

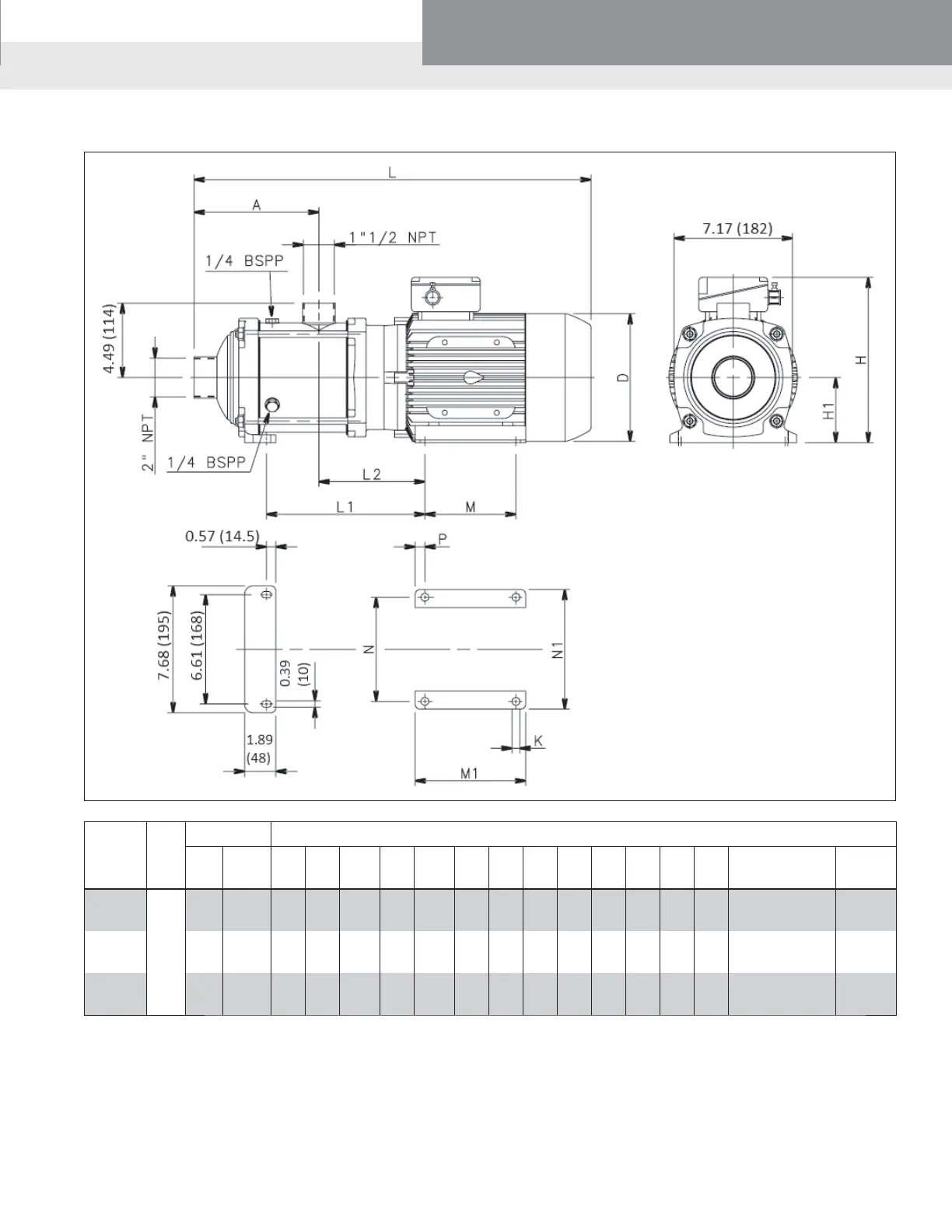

22HM..N SERIES, (1 TO 3 STAGES)
DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
Pump
Size
Stages
Phase
Motor Dimensions (in)
HP
Frame
Size
A D H H1 L L1 L2 M M1 N N1 P K
Max. Working
Pressure (PSI)
Weight
(lbs)
22HM01
THREE PHASE
3 90 5.67 6.85 9.13 3.54 20.83 6.93 5.67 4.92 5.91 5.51 6.46 0.49 0.39 235 49
22HM02 5.5 100 5.67 7.76 10.00 3.94 22.17 7.72 6.42 5.51 6.69 6.30 7.24 0.59 0.47 235 71
22HM03 7.5 112 5.67 8.43 11.02 4.41 23.50 7.99 6.69 5.51 6.69 7.48 8.62 0.59 0.47 235 86
