6 Dimensions and weights
HV 2.015 / 2.022
HV 4.022 / 4.030 / 4.040

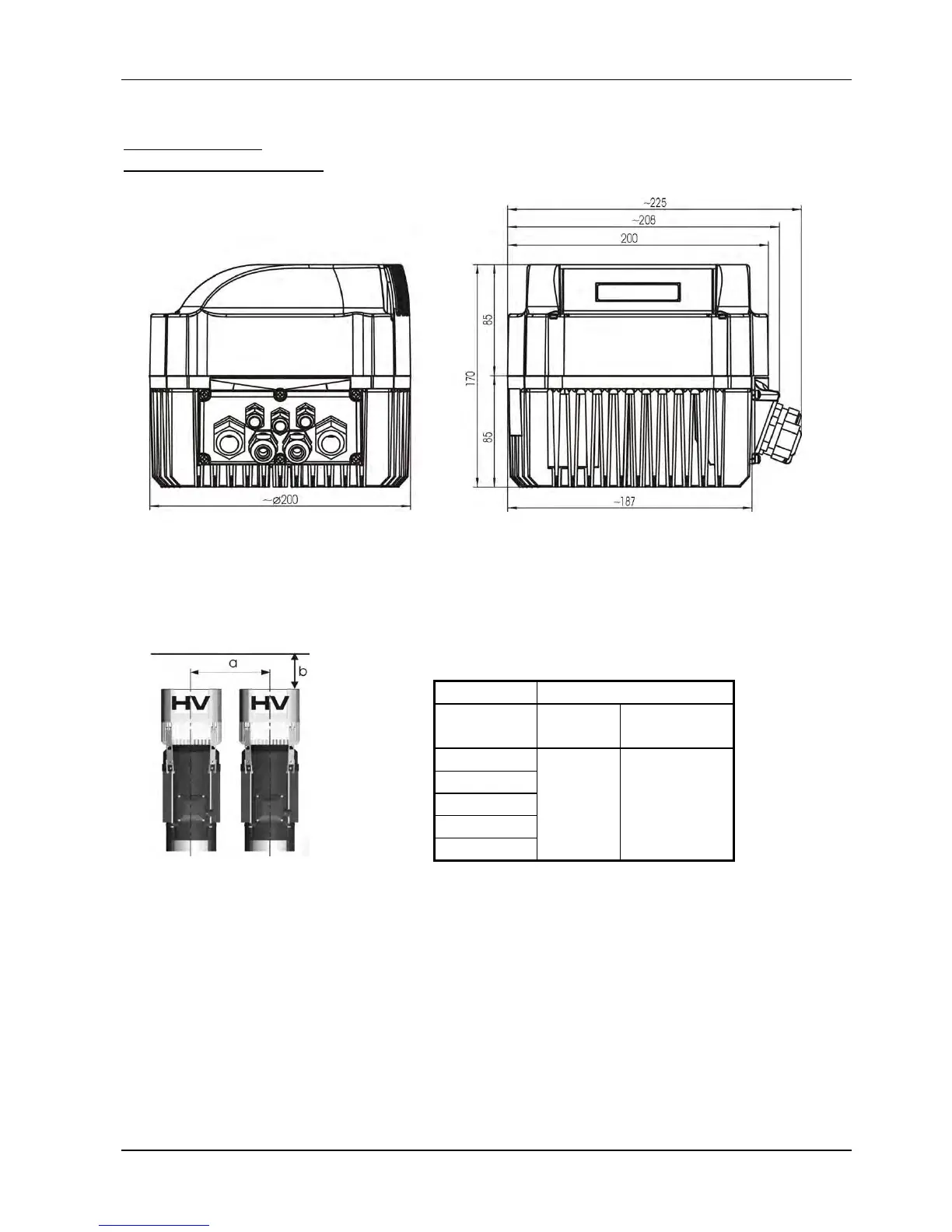

All dimensions in millimetres! Drawings are not to scale!
Lifting aids must have the proper dimensions.
Type Weight [kg]
BASIC
MASTER /
SINGLE
HV 2.015
HV 2.022
HV 4.022
HV 4.030
HV 4.040
4,00 4,40
a … minimum centre-distance between HYDROVAR units 300 [mm]
b … expansion space for maintenance 300 [mm]
