7.
8.
9.
1 2 3 4 5 10 9 10
6
7
8
English

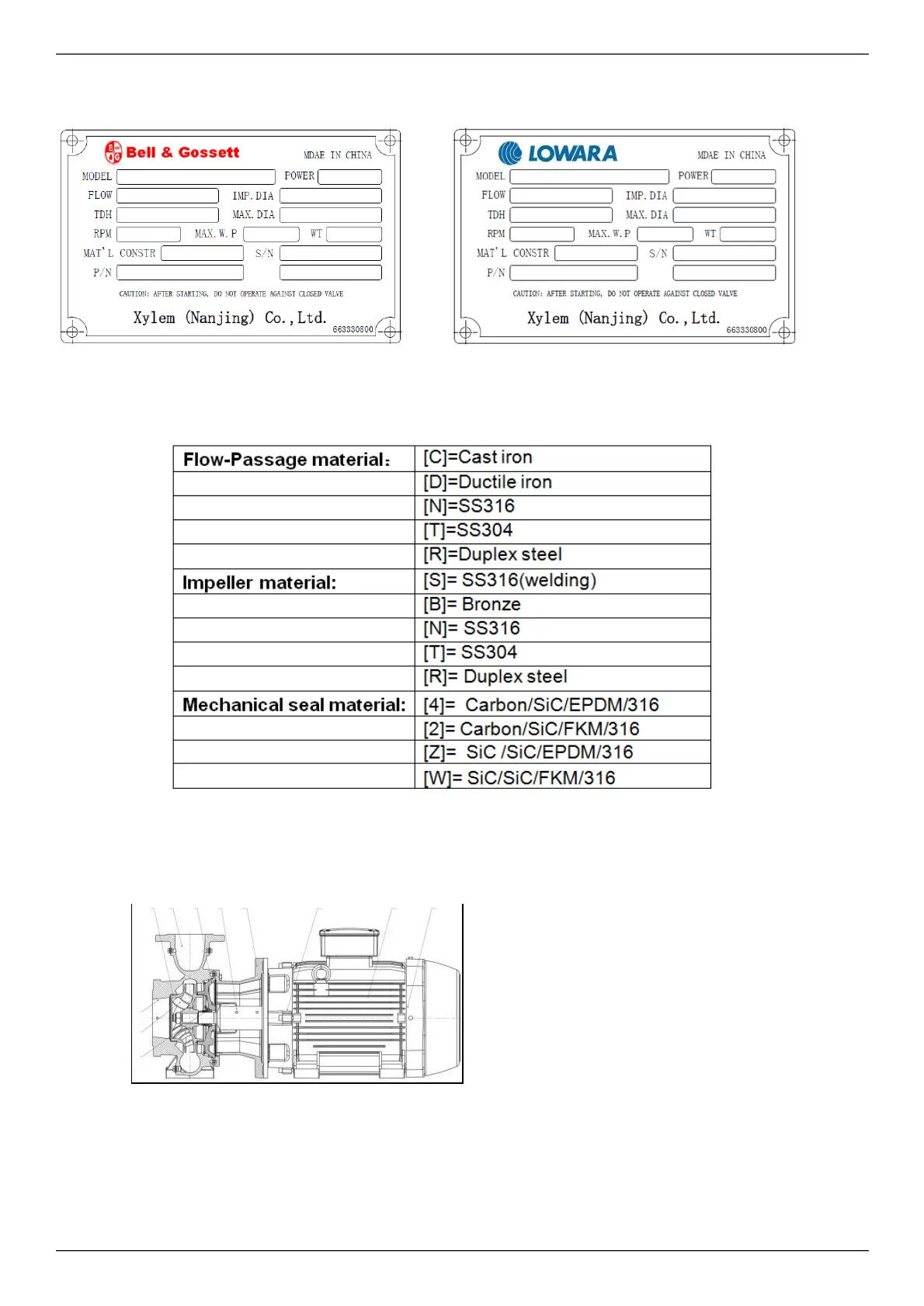

1..Wear ring clearance
2..Discharge port
3..Casing cover
4..Shaft
5..Bearing bracket
6..Suction port
7..Impeller
8..Mechanical seal
9..Motor
10.. Ball bearings, inside drive
e1631 Installation, Operation, and Maintenance Manual
15
Technical appendix
