4.3.2 Removal and Replacement
1. Remove the PWB (See 4.1).
2. Remove J3 connector housing 7. (Refer to page 9, figure
4.2.2)
3. Cut the J3 cable tie wrap with cutters and remove the Track
00 sensor leads from the miniclamp•
...---------- CAUTION --------------,
Be careful not to damage the leads when cutting the tie
wrap.
4. Take out the Track 00 sensor assembly screw and remove the
assembly.
Note: Do not remove the sensor mounting screw or the adjust-
ment screw.
5. For reinstallation, reverse the above procedure.
Note: To attach the Track 00 sensor, push it against the
frame stop and tighten the screw.
6. Perform service checks 1 and 2.

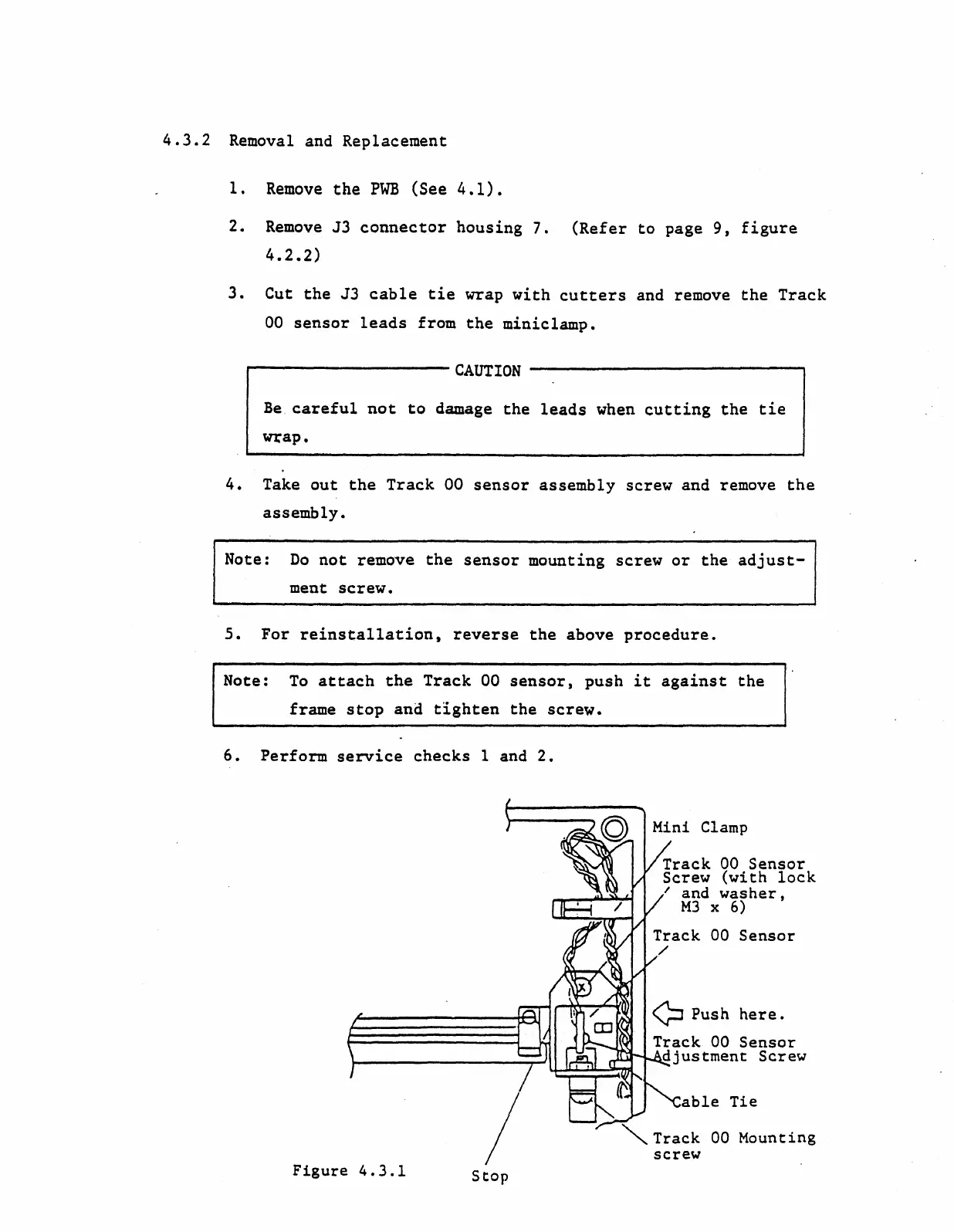

Figure 4.3.1 Stop
Track 00 Sensor
Screw (with lock
I and washer,
M3 x 6)
00 Sensor
able Tie
"" Track 00 Mounting
screw
