Y-E Data YD-380 - Front Lever

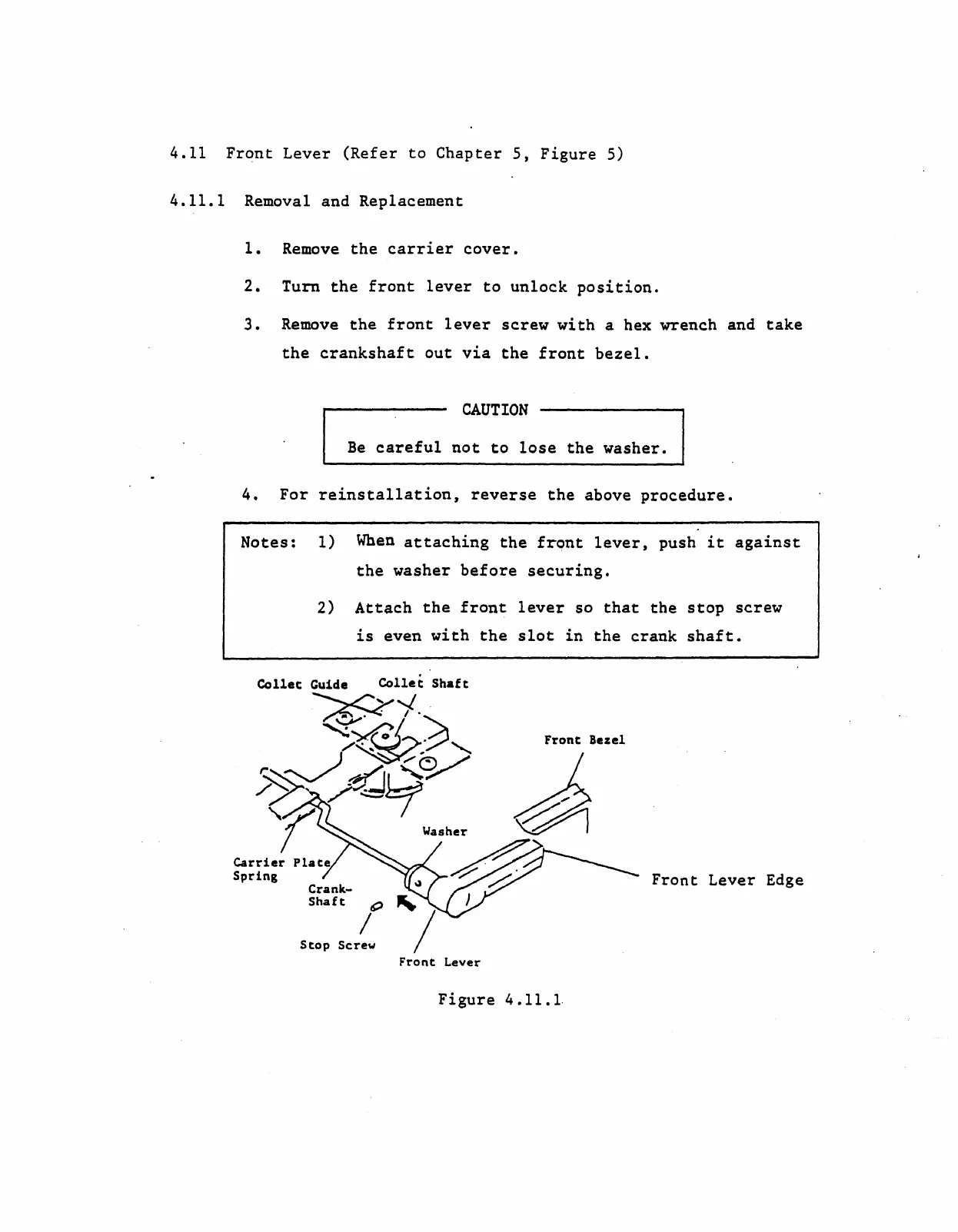

4.11 Front Lever (Refer to Chapter 5, Figure 5)
4.11.1 Removal and Replacement
1. Remove the carrier cover.
2. Turn the front lever to unlock position.
3. Remove the front lever screw with a hex wrench and take
the crankshaft out via the front bezel.
CAUTION
Be careful not to lose the washer.
4. For reinstallation, reverse the above procedure.
Notes: 1) When attaching the front lever, push it against
the washer before securing.
2) Attach the front lever so that the stop screw
is even with the slot in the crank shaft.
Collee
~
/
Stop Screw
Front Bezel
Front Lever Edge
Front Lever
Figure 4.11.1.
