4.10.3 Adjustment
1. Turn the adjusting screw on the Ready/Off plate until
the gap between the read/write heads is within 0.3 to
0.7mm. Turning the screw clockwise increases the gap,
counterclockwise decreases it.
2. Perform a service check (See 4.10.1)

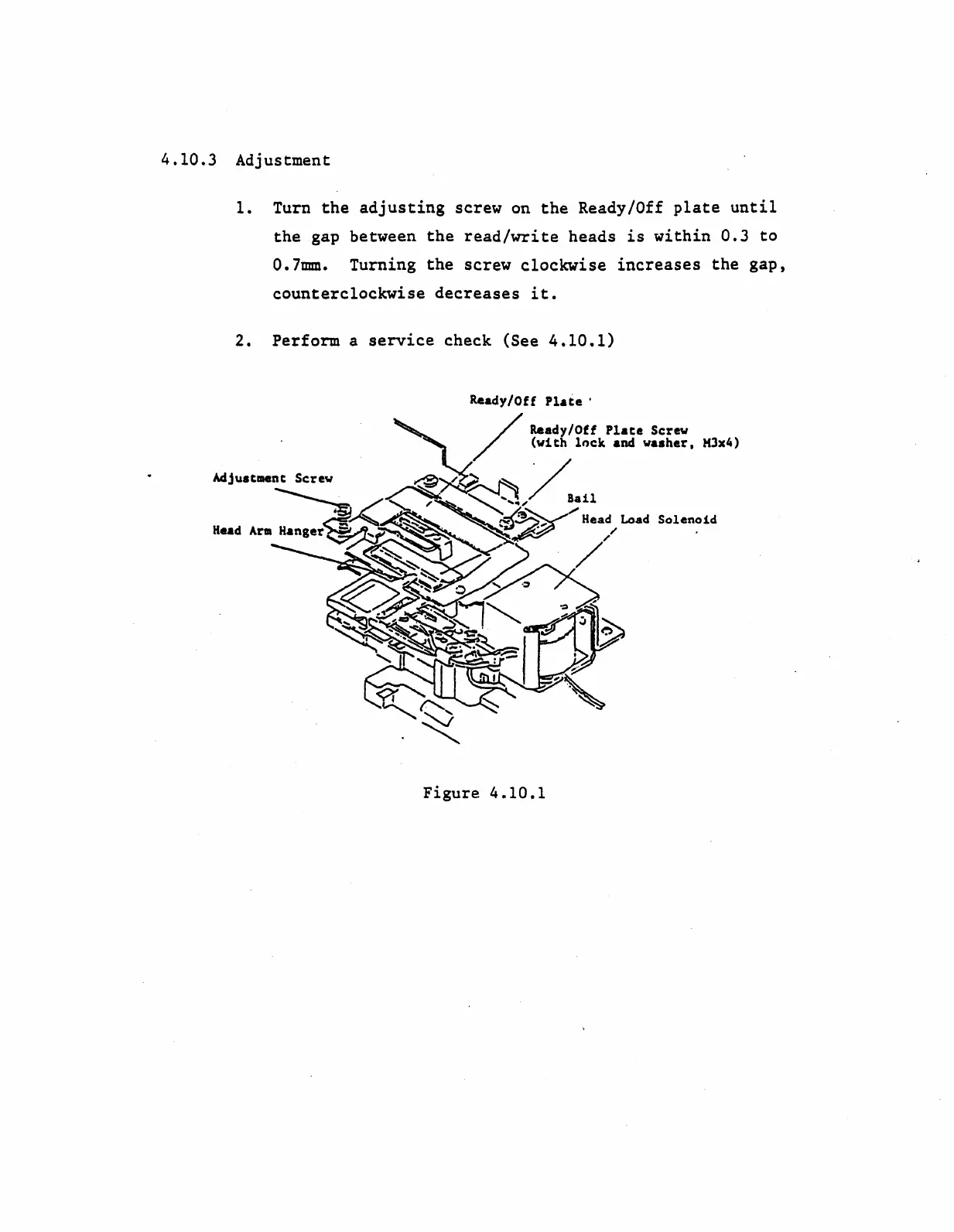

Figure 4.10.1
