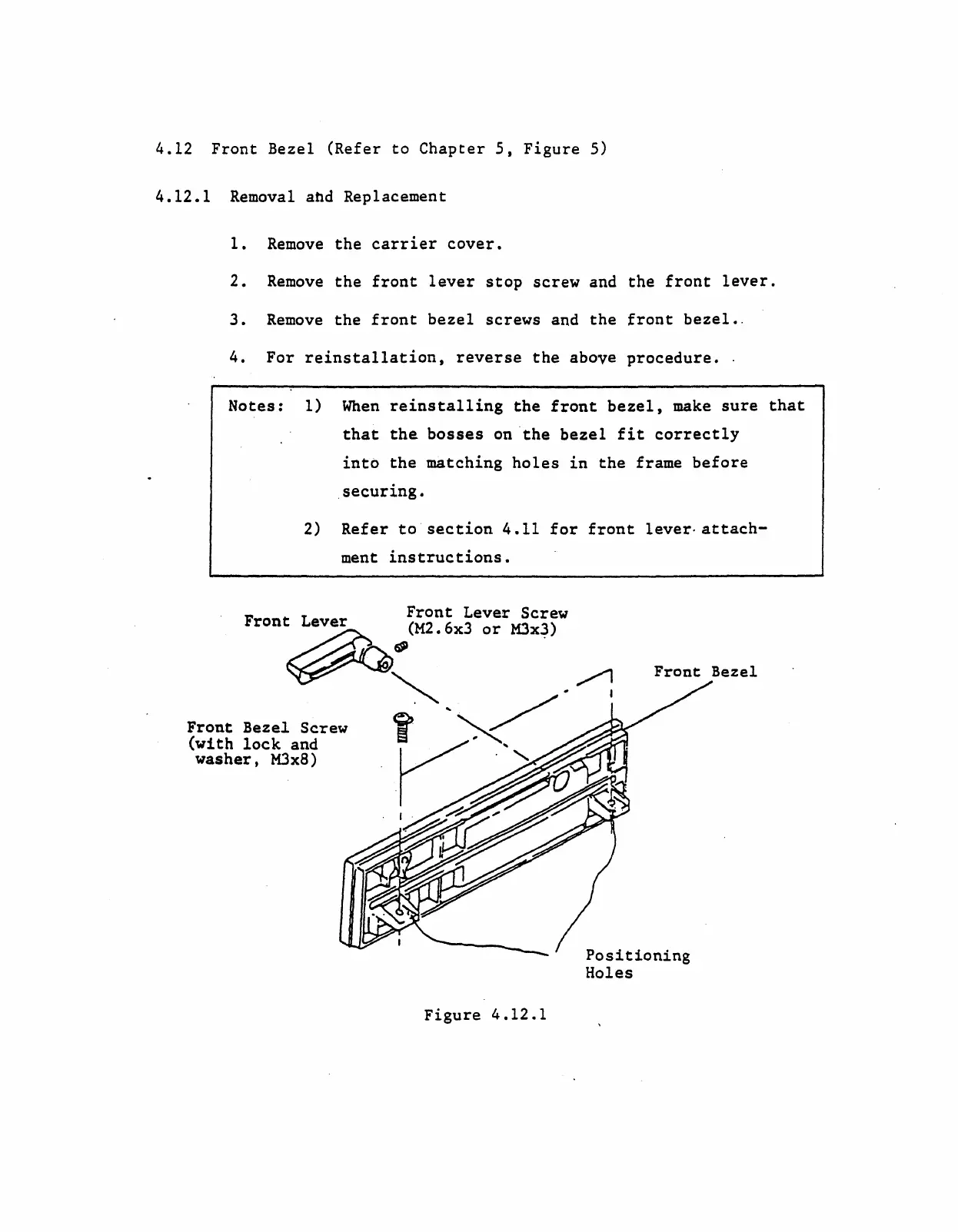

4.12 Front Bezel (Refer to Chapter 5, Figure 5)
4.12.1 Removal ahd Replacement
1. Remove the carrier cover.
2. Remove the front lever stop screw and the front lever.
3. Remove the front bezel screws and the front bezel •.
4. For reinstallation, reverse the above procedure •.
Notes: 1) When reinstalling the front bezel, make sure that
that the bosses on ·the bezel fit correctly
intb the matching holes in the frame before
. securing.
2) Refer to section 4.11 for front lever-attach-
ment instructions.
Front Bezel
Front Bezel Screw
(with lock and
washer, M3x8)
Positioning
Holes
Figure 4.12.1
