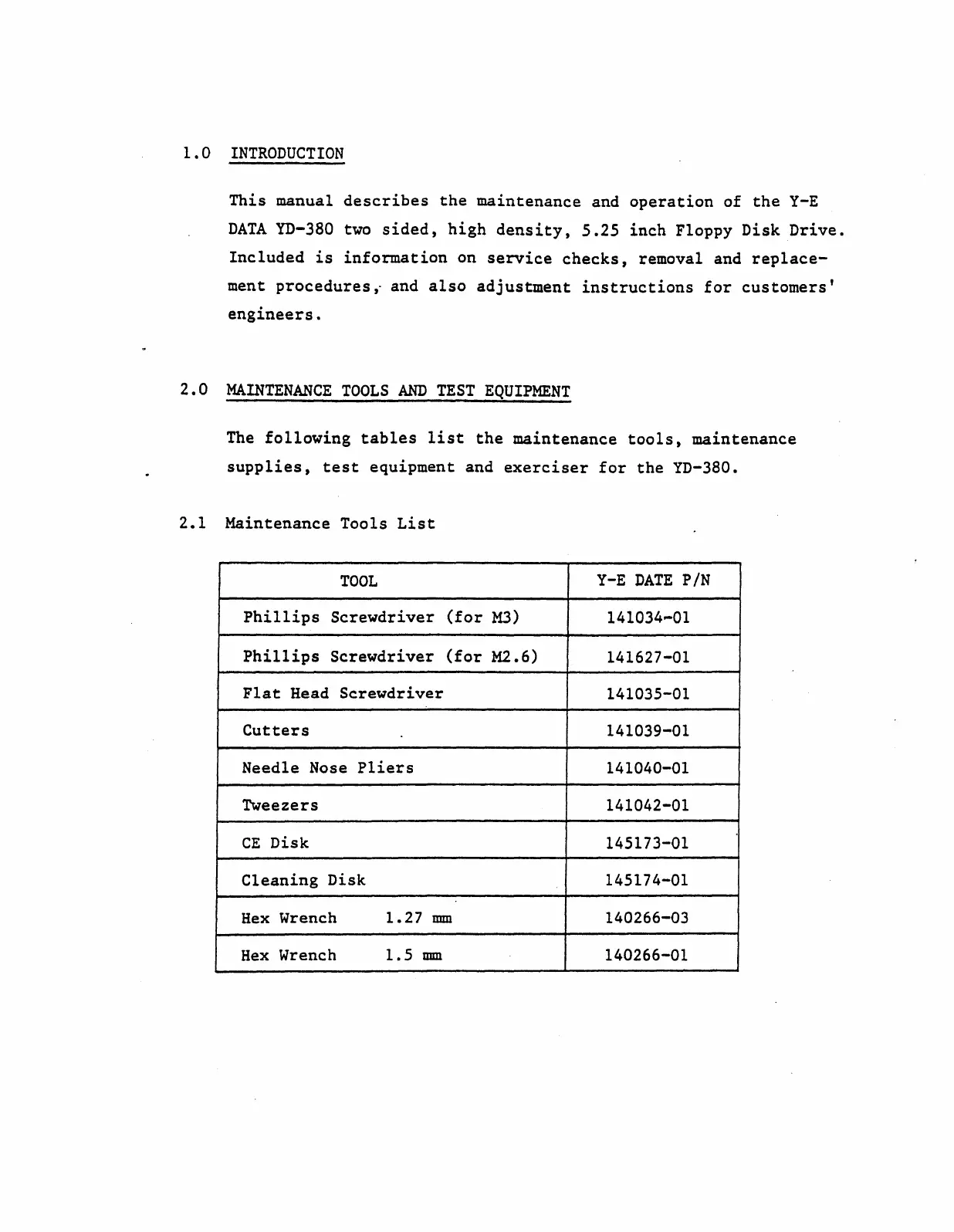

INTRODUCTION

This

manual

describes

the

maintenance

and

operation

of

the

Y-E

DATA

YD-380

two

sided,

high

density,

5.25

inch

Floppy

Disk

Drive.

Included

is

information

on

service

checks,

removal and

replace-

ment

procedures,

and

also

adjustment

instructions

for

customers'

engineers.

2.0

MAINTENANCE

TOOLS

AND

TEST

EQUIPMENT

The

following

tables

list

the

maintenance

tools,

maintenance

supplies,

test

equipment and

exerciser

for

the

YO-38D.

2.1

Maintenance

Tools

List

TOOL

Y-E

DATE

PIN

Phillips

Screwdriver

(for

M3)

141034-01

Phillips

Screwdriver

(for

M2.6)

141627-01

Flat

Head

Screwdriver

141035-01

Cutters

141039-01

Needle Nose

Pliers

141040-01

Tweezers

141042-01

CE

Disk

145173-01

Cleaning

Disk

145174-01

Hex

Wrench

1.27

mm

140266-03

Hex

Wrench

1.5

mm

140266-01
