Y-E Data YD-380 - Carrier Assembly

[ Level 2 ]

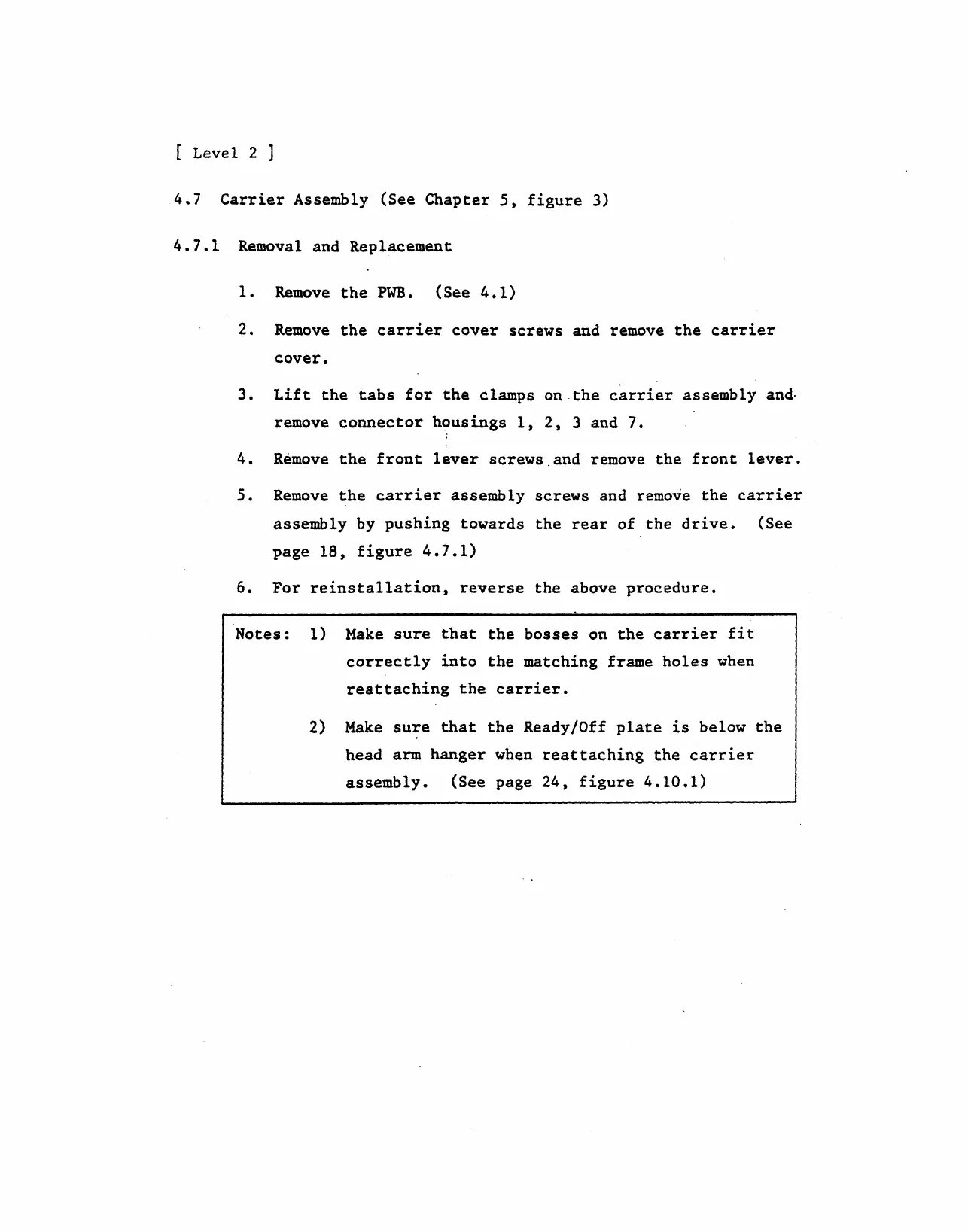

4.7 Carrier Assembly (See Chapter 5, figure 3)
4.7.1 Removal and Replacement
1. Remove the PWB. (See 4.1)
2. Remove the carrier cover screws and remove the carrier
cover.
3. Lift the tabs for the clamps on the carrier assembly and·
remove connector housings 1, 2, 3 and 7.
4. Remove the front lever screws.and remove the front lever.
5. Remove the carrier assembly screws and remove the carrier
assembly by pushing towards the rear of the drive. (See
page 18, figure 4.7.1)
6. For reinstallation, reverse the above procedure.
Notes: 1) Make sure that the bosses on the carrier fit
correctly into the matching frame holes when
reattaching the carrier.
2) Make su~e that the Ready/Off plate is below the
head arm hanger when reattaching the carrier
assembly. (See page 24, figure 4.10.1)
