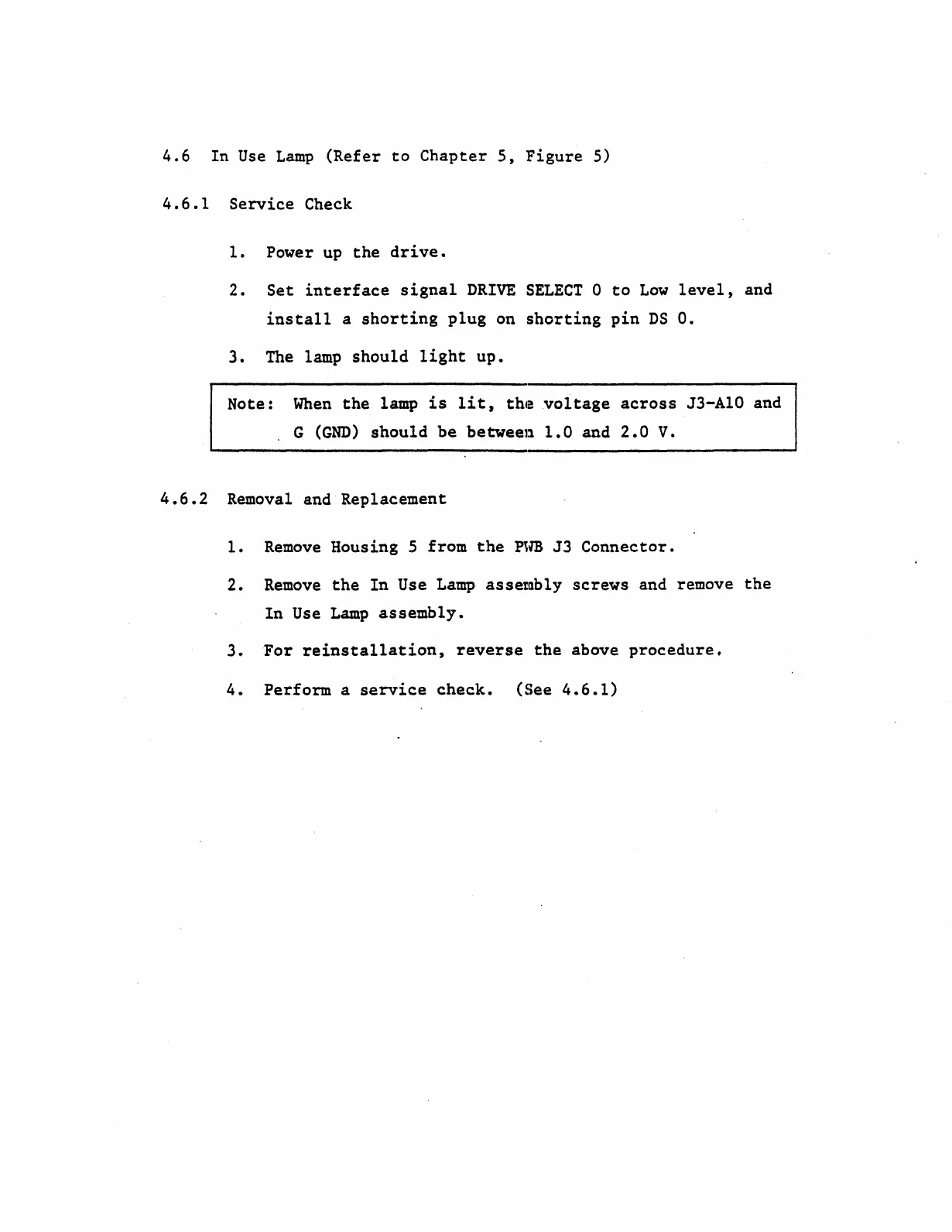

4.6 In Use Lamp (Refer to Chapter 5, Figure 5)
4.6.1 Service Check
1. Power up the drive.
2. Set interface signal DRIVE SELECT 0 to Low level, and
install a shorting plug on shorting pin DS o.
3. The lamp should light up.
Note: When the lamp is lit, thl!voltage across J3-AlO and
G
(GND) should be betweel1 1.0 and 2.0 v.
4.6.2 Removal and Replacement
1. Remove Housing 5 from the ~JB J3 Connector.
2. Remove the In Use Lamp asseIlllb1y screws and remove the
In Use Lamp assembly.
3. For reinstallation, reverse the above procedure.
4. Perform a service check. (See 4.6.1)
