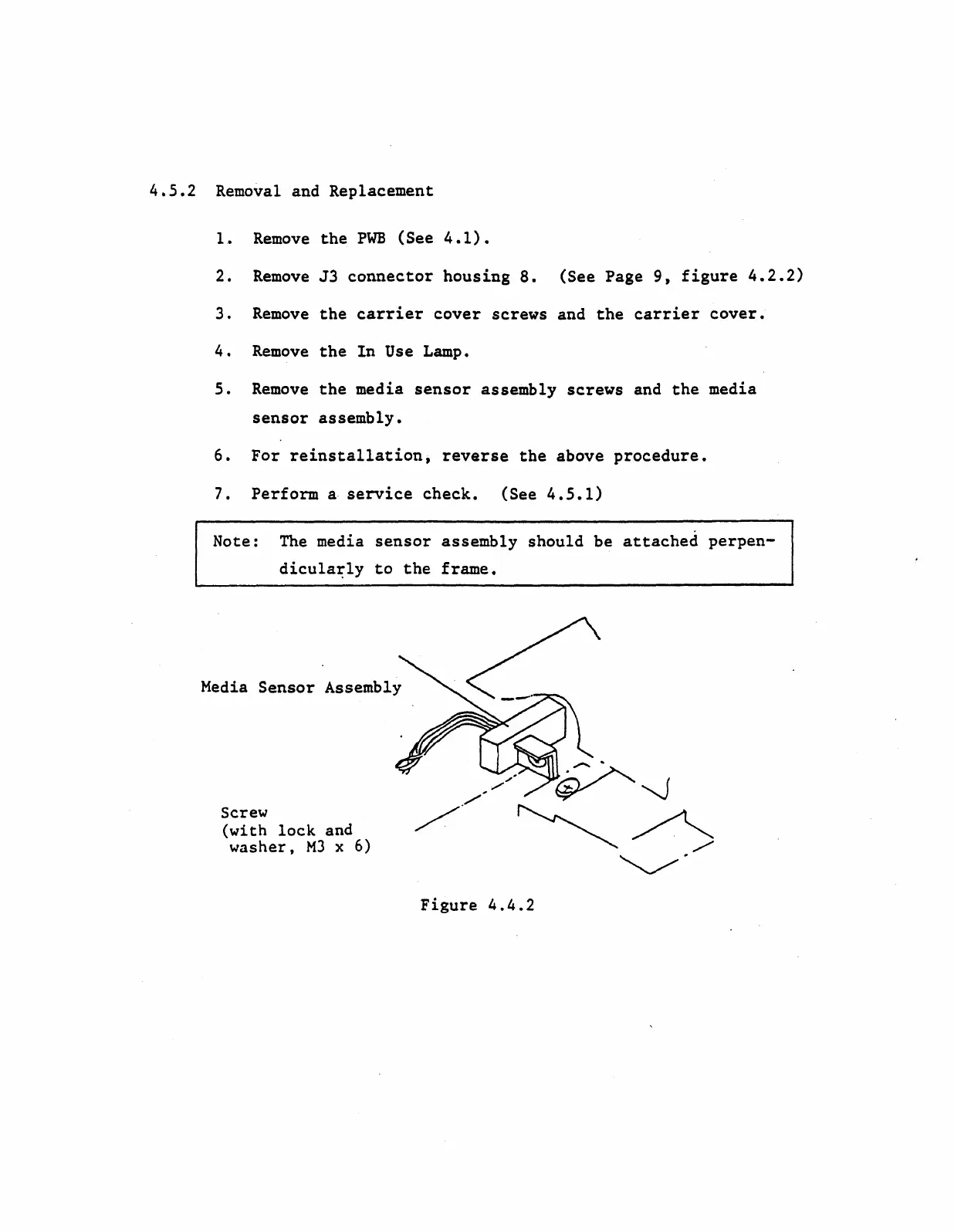

4.5.2 Removal and Replacement
1. Remove the PWB (See 4.1).
2. Remove J3 connector housing 8. (See Page 9, figure 4.2.2)
3. Remove the carrier cover screws and the carrier cover.
4. Remove the In Use Lamp.
5. Remove the media sensor assembly screws and the media
sensor assembly.
6. For reinstallation, reverse the above procedure.
7. Perform a service check. (See 4.5.1)
Note: The media sensor assembly should be attached perpen-
dicula~ly to the frame.
Media Sensor Assembly
Screw
(with lock and
washer, M3 x 6)
Figure 4.4.2
