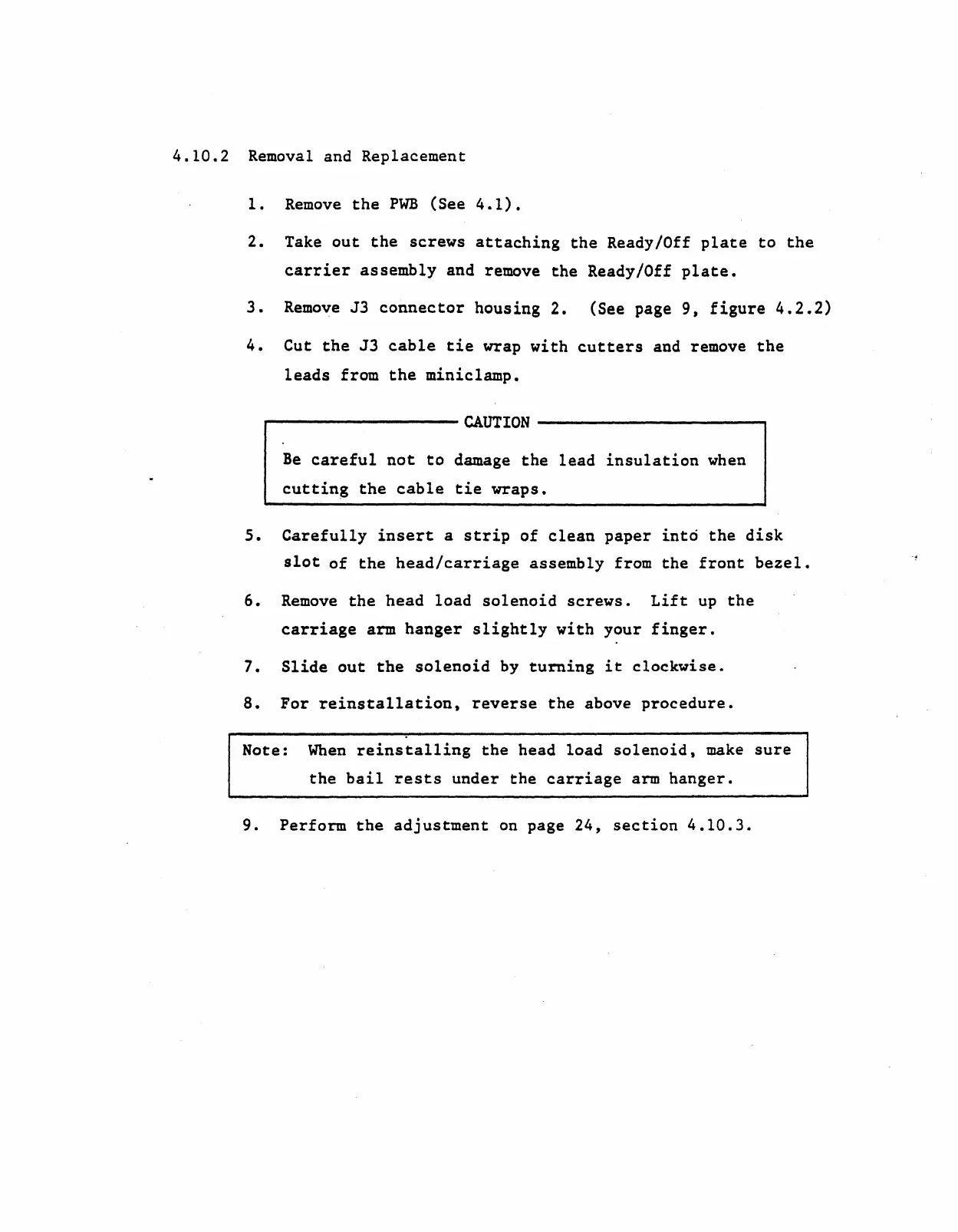

4.10.2 Removal and Replacement
1. Remove the PWB (See 4.1).
2. Take out the screws attaching the Ready/Off plate to the
carrier assembly and remove the Ready/Off plate.
3. Remove J3 connector housing 2. (See page 9. figure 4.2.2)
4. Cut the J3 cable tie wrap with cutters and remove the
leads from the miniclamp.
r---------- CAUTION ----------....,
Be careful not to damage the lead insulation when
cutting the cable tie wraps.
5. Carefully insert a strip of clean paper into the disk
slot of the head/carriage assembly from the front bezel.
6. Remove the head load solenoid screws. Lift up the
carriage arm hanger slightly with your finger.
7. Slide out the solenoid by turning it cloekwise.
8. For reinstallation, reverse the above procedure.
Note: When reinstalling the head load solenoid, make sure
the bail rests under the carriage arm hanger.
9. Perform the adjustment on page 24, section 4.10.3.
