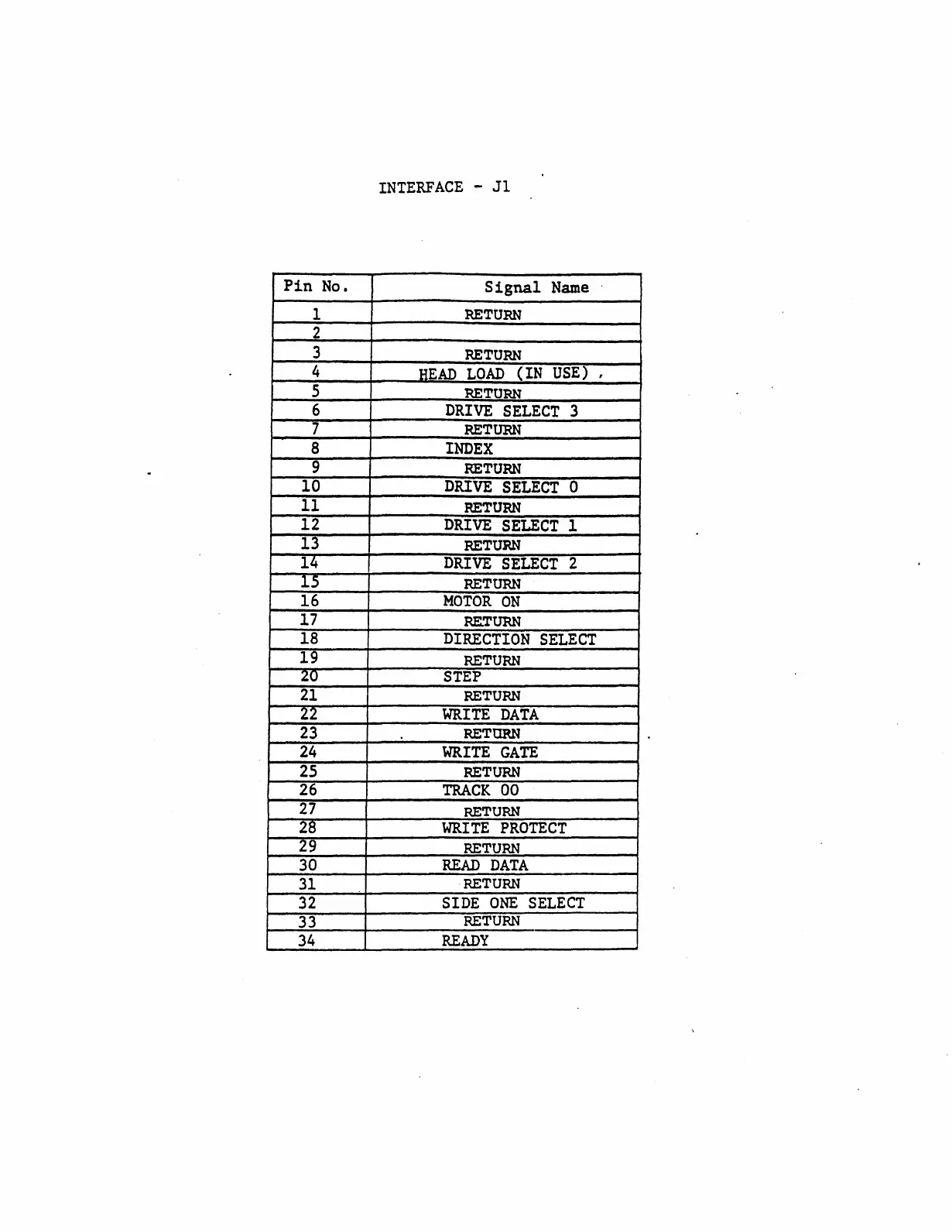

INTERFACE - Jl
Pin No.
Signal Name
1
RETURN
2
3
RETURN
4
HEAD LOAD (IN USE) r
5
RETURN
6
DRIVE SELECT 3
7
RETURN
8 INDEX
9
RETURN
10
DRIVE SELECT 0
11
RETURN
12
DRIVE SELECT 1
13
RETURN
14
DRIVE SELECT 2
15
RETURN
16
MOTOR ON
17
RE.TURN
18
DIRECTION SELECT
19
RETURN
20-
STEP
21 RETURN
22 WRITE DATA
23
RETtIRN
24 WRITE GATE
25 RETURN
26 TRACK 00
27
RETURN
28
WRITE PROTECT
29
RETURN
30
READ DATA
31
RETURN
32
SIDE ONE SELECT
33
RETURN
34 READY
