Yadea M6L User Manual

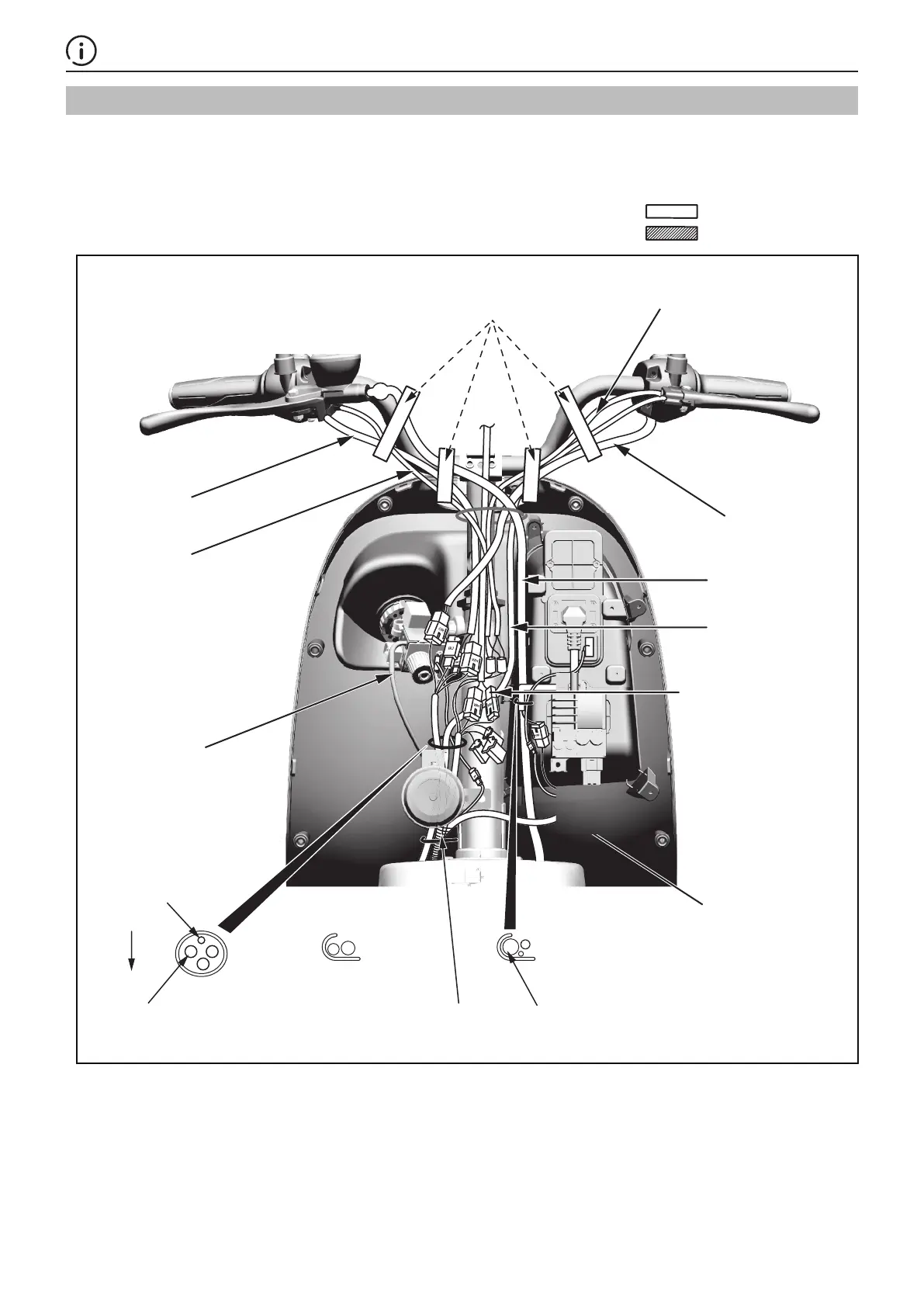

Drawing and wiring diagram
6
General Information
Harness technical requirements:
1. The wiring harness is straight and beautiful without shaking;
2. There should be no damage to the outer skin of the wiring harness. Wrap the damaged parts with insulating tape;
3. Reduce the excess cable ties, and the remaining amount of the cable ties is 3-5mm.
Cable tie fixing
Wire clamp fixing
Right combination
switch harness
Right brake wire
Saddle lock cable
Switch control cable
Left and right combination
switch harness
Rear brake line
Rear brake line
Combination switch harness
Power off switch
Main cable
Front brake tubing
Front brake tubing
Left and right combination
switch harness
Instrument high and low
voltage conversion plug-in
Front
Left brake wire
Left and right combination
switch harness
