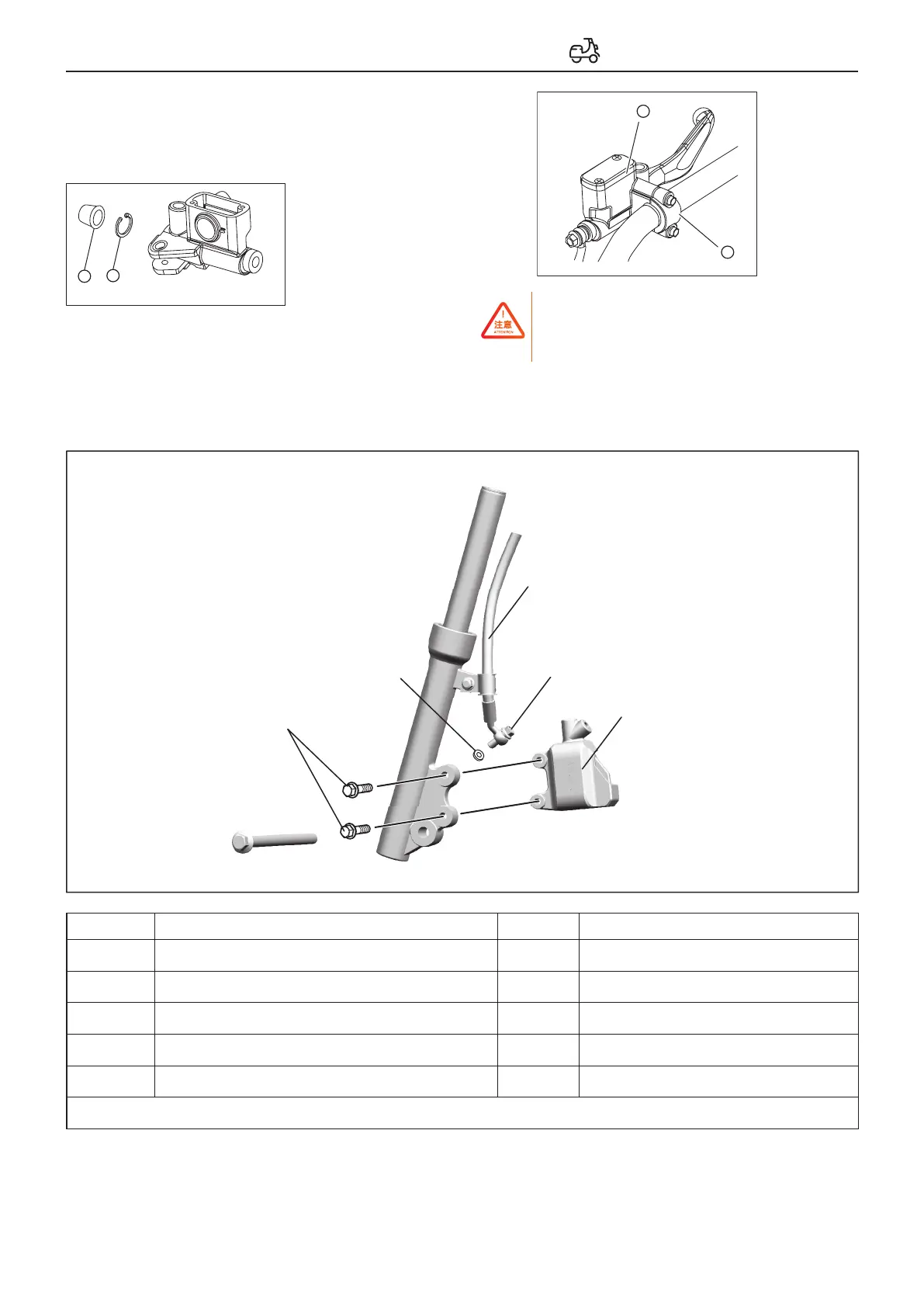

Yadea M6L User Manual

2.Installation
●E - shaped check ring①
Clip the new ring into the ring slot of the master
cylinder thruster.
●The main cylinder dust cover②
1
2
3.Installation
●Brake master cylinder①
●Master cylinder fixed seat②
1
2
4.Release air：
●See section 3 of this chapter, "Release of air
(Brake system)"
Forceps part
1
3
2
5
4
1 2
2 1
3 2
4 1
5 1
Installation takes place in reverse order of removal.
35
•Install the fixed seat with "UP" mark
facing up.
•Tighten the upper bolt of the fixed seat
first, and then the lower bolt.
Front disc brake brake caliper
Job order Quantity RemarkJob name/part name
Caliper mounting bolt
Tubing bolts
Copper washer
Brake tubing
Caliper assembly
Vehicle body parts
