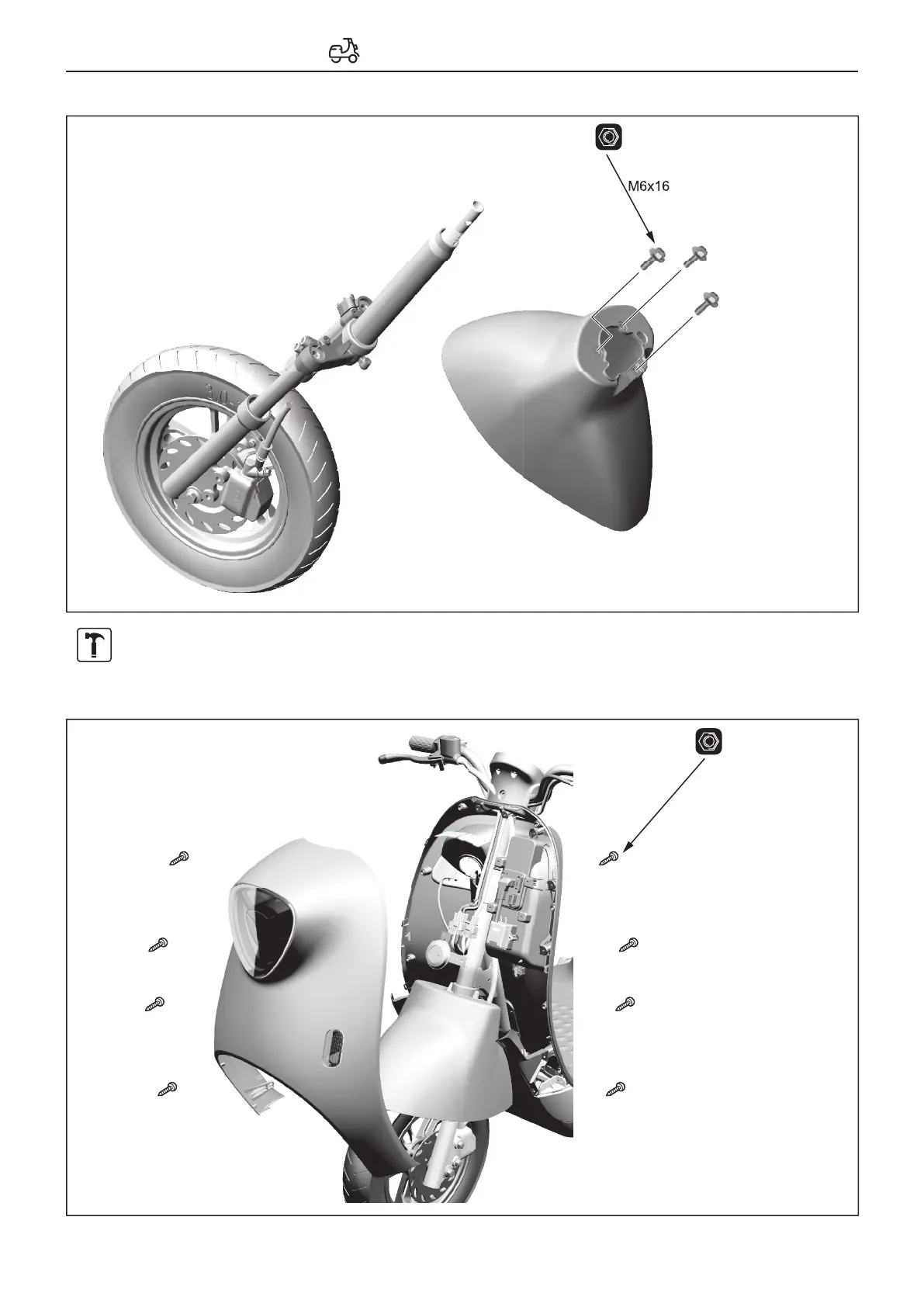

Vehicle body parts
Front fender
•
•
•
Front cover
ST4.2x13
12
Front cover → 12
Instrument cover assembly → 15
Handlebar → 30
Hexagon flange bolts
(big head) and flat cushion
combination
Cross recessed
pan head tapping
screws
