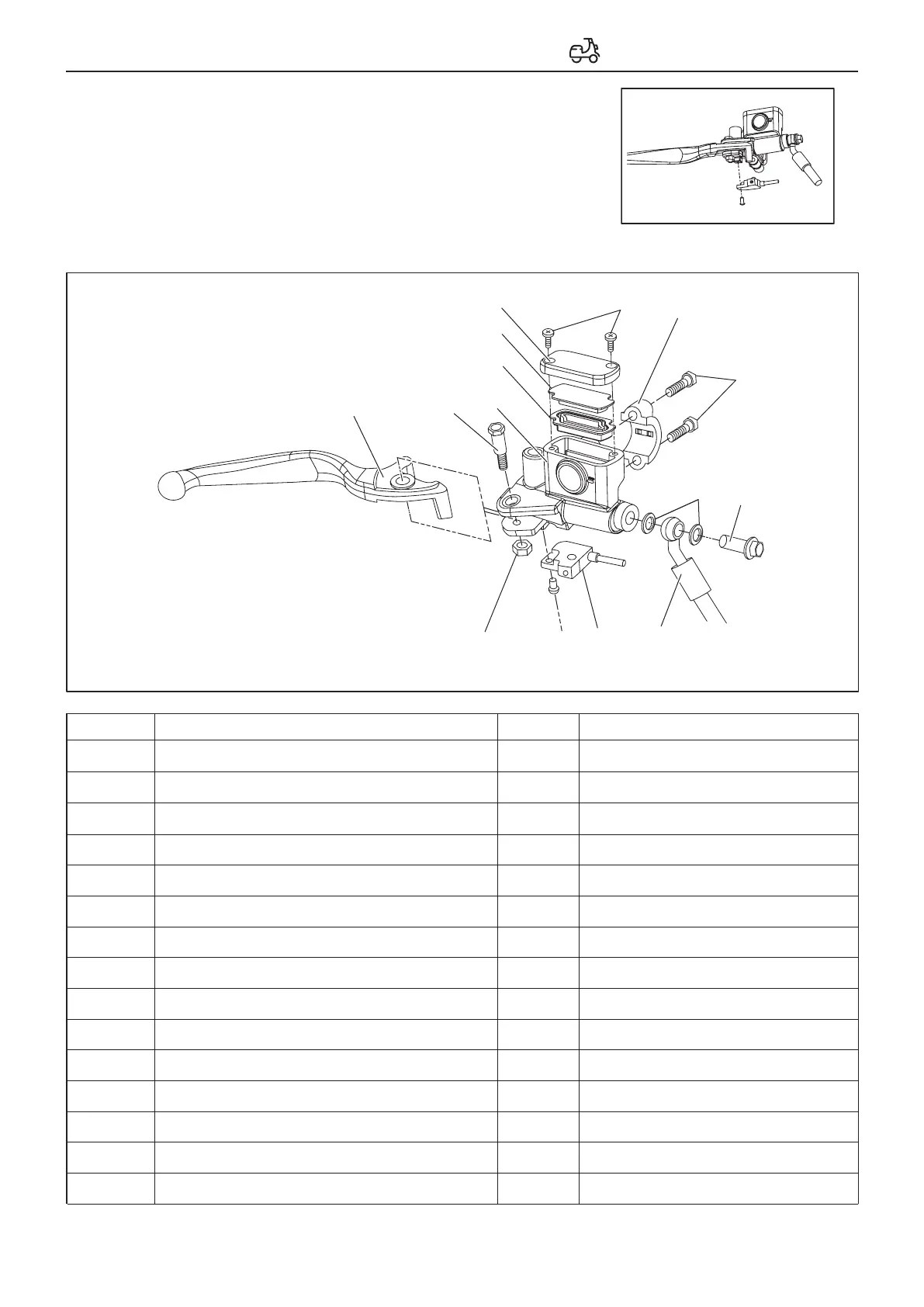

Disassembly of brake components- Pump body part
4
5
1
15
14
13
12
2
3
9
10
11876
6.Brake switch check
●Remove the power-off switch
●Check:
Push down switch circuit and it shall be on, If not. → Replacement
Scratched/broken/cracked → Replacement
●Installation
Installation is carried out in reverse order of disassembly.
33
Brake fluid is released
Job order Quantity Remark
1 1
2 1
3
4
5
6
7
8
9
10
11
12
13
14
15
1
1
1
1
1
1
1
1
1
1
1
1
1
Job name/part name
Main pump
Main pump fixed seat
Fixed seat mounting bolt
Brake handle
Brake handle mounting bolt
Nut
Switch mounting screw
Brake switch
Tubing bolts
Copper washer
Brake line
Oil cup cap
Oil cup cap bolt
Sealing isolation pad
Oil tank partition
Vehicle body parts
