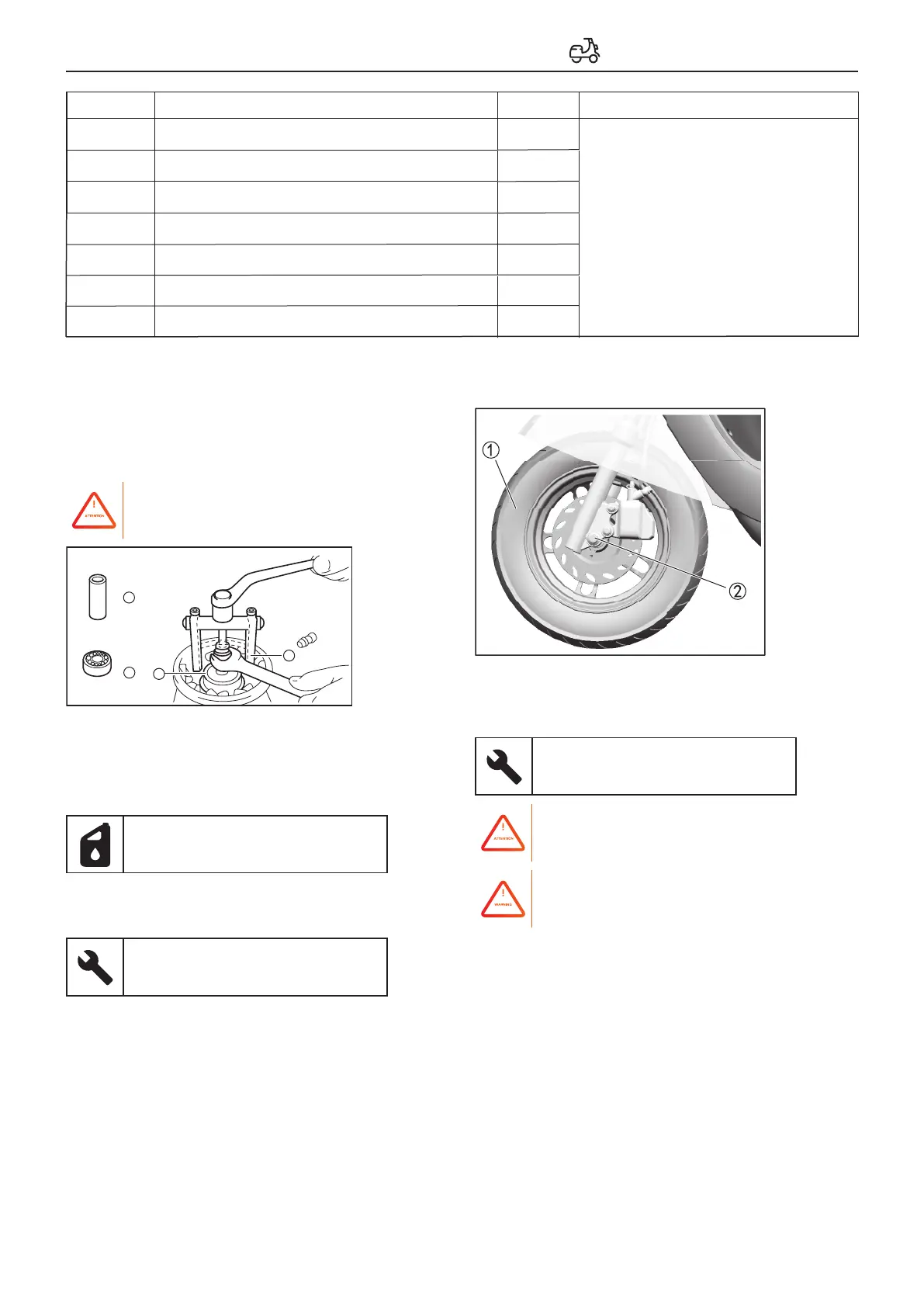

a.Decomposition of the front wheel
1.Remove
●Bearing①
●Bearing②
Remove the bearing using the normal bearing
extraction tool ③.
Handle the wheels carefully to avoid
damaging the disc brakes，replace them
if they are damaged.
2
1
3
1
b.Front wheel installation
1.Lubricate
●
●
● Front axle
Bearing
Oil seal (lip)
Lithium grease
2.Installation
●Disc brake
20～30N·m
●Front wheel ①
Make sure the right and left axle sleeves are
assembled correctly.
3.Locking
●Front axle②
50～60N·m
Before Locking The Nut, Move The Fork
Several Times To Check Its Working
Condition.
Make Sure The Disc Brake Pump And The
Disc Brake Pump Tubing Are Properly
Installed.
23
Job order Quantity Remark
1 1
2 1
3 1
4
5
6
7
1
1
1
1
Job name/part name
Disc brake pump tubing fixing clip.
Disc brake pump
Front axle
Front wheel
Axle sleeve
Disc brake
Axle sleeve
When disassembling, proceed
in the following order.
Installation takes place in reverse
order of removal.
Hold the front wheel off the ground
with proper support.
Lock diagonally with M8 hexagon step bolts.
●Front axle nut M12×1.25
