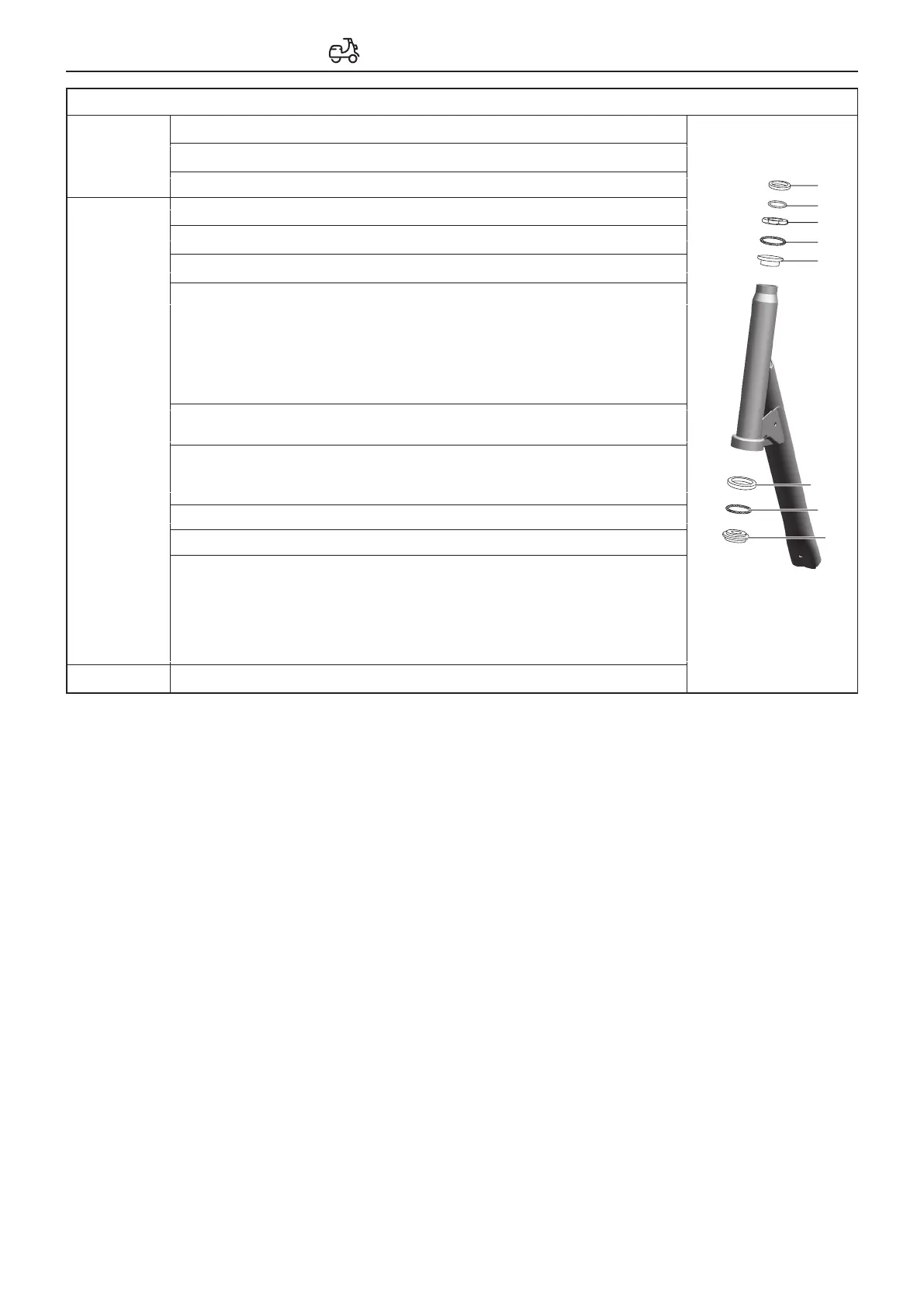

Adjust steering rudder
Disassembly
1
2
3
4
5
6
7
8
Adjust
Install the check washer ②
Installation Installation is carried out in reverse order of disassembly.
28
Instrument cover
Front cover
Handlebar assy
Remove the lock nut①
Remove the check washer②
Remove the upper fender③
Check whether the upper steering bearing ④ and lower steering
bearing ⑦ are damaged (steel ball falling off or rust and supporting
seat damage) → replace
upper and low steel bowl ⑤⑥ upper and lower fender ③⑧ for
damage (rust, crack, break, etc.) → replace
check the grease for serious aging or contamination (blackening) →
replace.
Check the rotational flexibility again: inflexibility→ Loosen the lock
nut ① , adjust the upper fender ③ , fasten the lock nut ①， for
adjustment to flexible steering and no up and down pulsation of
steering column.
After confirming flexibility, fasten the upper fender ③ reversely.（
Torque: 75N~85N).
Check for rotational flexibility, inflexibility → Loosen the lock nut ①
for adjustment to flexible steering and No up - and - down pulsation
of steering column.
After confirming that the parts are intact, lift the front fork assem-
bly and tighten the lock nut ①
Fasten the lock nut ②（Torque: 75N~85N).
Vehicle body parts
